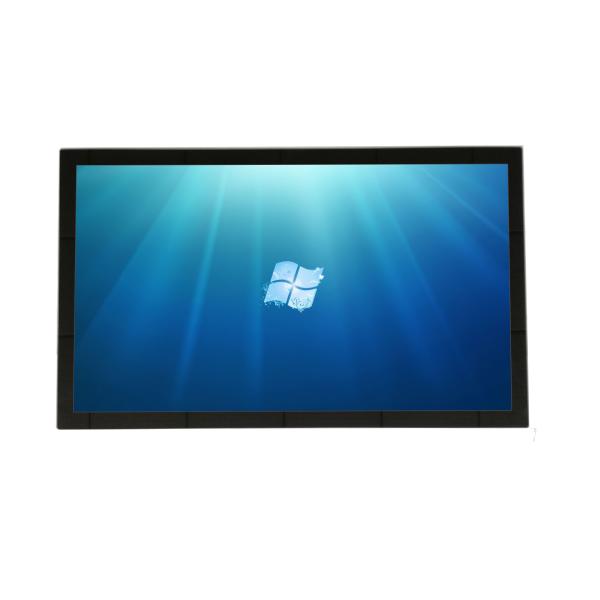

300nits 21.5in Multi Touch LCD Screen 18.71W
300nits 21.5in Multi Touch LCD Screen 18.71W
300nits 21.5in Multi Touch LCD Screen 18.71W
300nits 21.5in Multi Touch LCD Screen 18.71W
Specifications
Brand Name :
AXNEW
Model Number :
AXD-21OPN1P2-V1
Certification :
CE FCC ROHS
Place of Origin :
China
MOQ :
5 pcs
Price :
US$100-300/pcs
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
1000 pcs/month
Delivery Time :
5-8 working days
Packaging Details :
2 pcs/carton
size :
21.5 inch
Touch :
capacitive multi-touch with 3mm anti-vandal glass
Resolution :
1920x1080
Brightness :
300nits
Signal inputs :
vga hdmi
Mounting ways :
vesa 75X75;100X100
Feature :
slim, flexbile, anti-vandal, full hd
Viewing angle :
178/178
Description

Anti-vandalism Capacitive Multi Touch LCD screen with hdmi RGB inputs for Kiosks

Display Specifications
Display 21.5" Pro capacitive touch monitor (LED)
Model Name AXD-21OPN1P2-V1
Active Display Area (mm) 476.64 (H)x268.11(V)
Pixel Pitch (mm) 248.25 (per one triad) x 248.25
Resolution (Pixel) WSXGA (1920X1080)
Brightness (CD/m^2) 250cd/m^2
Contrast Ratio 1000:1
Viewing Angle (CR >=10) 178/178
Power consumption 18.71W typical, normal operation
Touch Screen
Type Pro-Capacitive Touch
Construction G+G 3.0 mm cover glass
Hardness 6H
Chipset 8084 eeti industrial chipset
Support O.S multi touch for Linux,andriod, winxp/7/8/10, etc
Communication port USB for touch connection only, RS232 options
Connectors
OSD Control On the back side
I/O Connectors 1x12v DC Jack,1XVGA,1xHDMI; 1x AV
Power Input DC 12V,4A 48W
Mechanical Specifications
Construction Steel metal housing
Dimensions 522.0x 294.6x 33.0(mm)
Mounting Embedded ,fixing holes on the back frame
Power source AC 100~240V/ 12V DC
Environment Specifications
Operating Temperature 0~50℃
Storage Temperature -20~60℃
Rating Facilitate installation of the demolition,solid portfolio
Ordering Information 21.5" Anti-vandalism Capacitive Multi Touch LCD with hdmi input and power adapter
