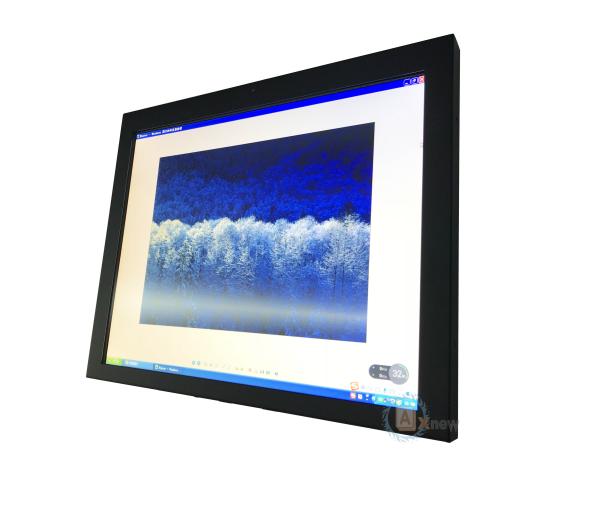

Projected-capacitive Rugged Custom Monitor 19 High Brightness 1500nits with dimmer
Projected-capacitive Rugged Custom Monitor 19 High Brightness 1500nits with dimmer
Projected-capacitive Rugged Custom Monitor 19 High Brightness 1500nits with dimmer
Projected-capacitive Rugged Custom Monitor 19 High Brightness 1500nits with dimmer
Specifications
Brand Name :
Axnew
Model Number :
AXD-19OPN2P2-ID
Certification :
CE FCC Rohs
Place of Origin :
China
MOQ :
50 Pieces
Price :
US$200-400/pcs
Payment Terms :
T/T, Paypal, Western Union
Supply Ability :
2500 pieces/month
Delivery Time :
10 working days
Packaging Details :
5 Pcs /Carton with firm foam
Screen Size :
19''
Pixel :
1280x1024
Contrast Ratio :
1000:1
Brightness :
1500nits
Input signal :
VGA DVI
Touch Type :
Projection capacitive touch
Glass :
Anti-glare /anti-reflective treatment
Cover Glass :
3mm/4mm/6mm thickness
Description

Projected-capacitive Rugged 19" High Brightness LCD Monitor 1500nits with dimmer

Display Specifications
Display 19" Color TFT Projected touch Monitor with 6mm anti-vandal glass
Model Name AXD-19OPN2P2-ID
Active Display Area (mm) 376.3 (H)x301.1(V)
Pixel Pitch (mm) 0.294(H)x0.294(V)
Resolution (Pixel) SXGA (1280X1024) 16.2 M (6 bit + FRC)
Brightness (CD/m^2) 1500cd/m^2; could be dimmable
Contrast Ratio 1000:1
Viewing Angle (CR >=10) 170/160
Power consumption 38.5W typical, normal operation
Touch Screen Projected-capacitive touch with 3mm;6mm anti-vandal glass

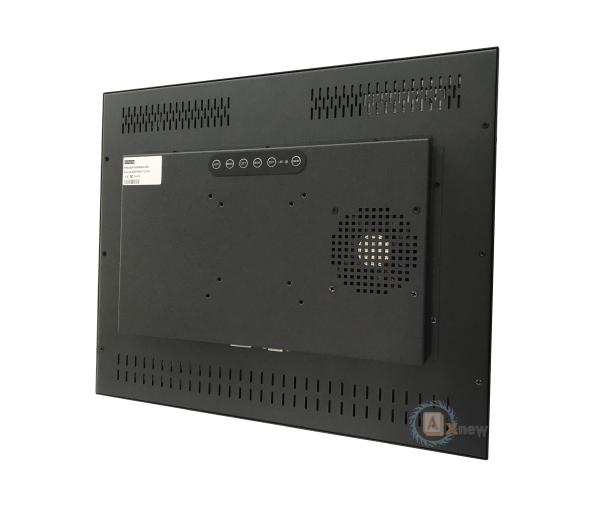

OSD Control On the back side
I/O Connectors 1x12v,1XVGA,DVI-D(Optional)
Power Input DC 12V,4A 48W
Mechanical Specifications
Construction Steel chassis & Black Color
Dimensions 432.0 x 339.0x49.8 (mm)
Mounting Edge locking ,fixing holes embedded
Power source AC 100~240V/ 12V DC-4A
Environment Specifications
Operating Temperature -10~60℃
Storage Temperature -20~70℃
Rating Facilitate installation of the demolition, solid portfolio

19 inch industrial monitor could be customized the protective glass, anti-vandal glass, AG AR treatment touch panel solutions, IP65 water-proof front bezel, or signal inputs .

Welcome to contact us if you are interested in it .
