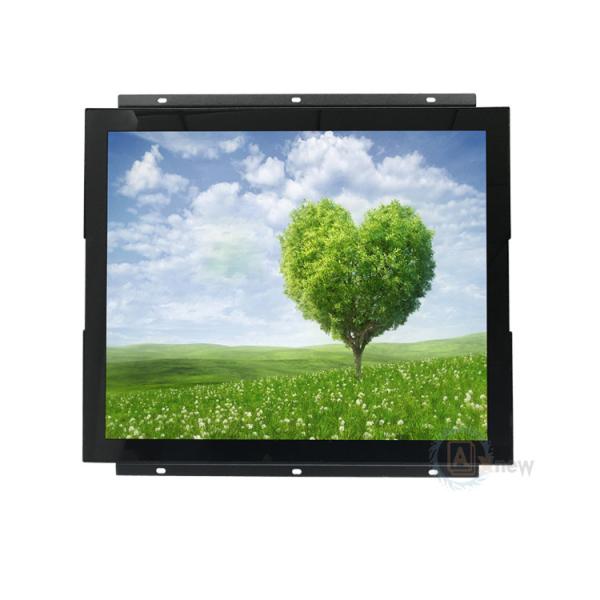

IR Touchscreen monitor with IP65 front bezel for financial devices
IR Touchscreen monitor with IP65 front bezel for financial devices
IR Touchscreen monitor with IP65 front bezel for financial devices
IR Touchscreen monitor with IP65 front bezel for financial devices
Specifications
Brand Name :
Axnew
Model Number :
AXD-15OPN2P2-T4
Certification :
CE FCC Rohs
Place of Origin :
China
MOQ :
5 units
Price :
US$150~299
Payment Terms :
T/T, Western Union, L/C, D/A
Supply Ability :
1000Units/Month
Delivery Time :
5-7 working days
Packaging Details :
1 unit/carton; 5 units/carton
Resolution :
1024X768
Brightness :
300nits
Touch Type :
IR touch
Signal input :
VGA, DVI-D
Reponse Time :
8ms
Use Life :
50,000hours(min)
Operating Temperarture :
-20~70 degrees
Viewing Angle :
80/80/70/70
Description

IR Touchscreen monitor with IP65 front bezel for financial devices

Display Specifications
Display 15" Color TFT IR touch Monitor
Model Name AXD-15OPN2P2-T4
Active Display Area (mm) 305.7(H)x229.7(V)
Pixel Pitch (mm) 0.297(H)x0.297(V)
Resolution (Pixel) VGA (1024x768)6 bit + FRC
Brightness (CD/m^2) 250nits
Contrast Ratio 700:1
Viewing Angle (CR >=10) 160/140
Power consumption 8.6 W typical, normal operation
Touch Screen IR touch panel( USB Controller)
Touch durability 50 Million touches
Surface Hardness 7H
Transmission 92%
Usage Plus and play, win7/8/10 free driver
OSD Control On the back side
I/O Connectors 1x12v,1XVGA,DVI-D(Optional)
Power Input DC 12V,4A 48W
Mechanical Specifications
Construction Steel housing & black Color, anti-vandal
Dimensions 343.0x 294.0x50.1(mm)
Mounting up and down fixing holes, vesa75x75;100x100 Wall Mounting Optional
Power source AC 100~240V/ 12V DC
Environment Specifications
Operating Temperature -20~70℃
Storage Temperature -30~80℃
Rating Facilitate installation of the demolition,solid portfolio
Ordering Information 15” IR touch monitor with VGA/DVI Input

Features and Advantages

1.G15'' industrial New perfect panels with stable supply


2. Slim and simple open frame to mount all the LCD kits in one , which is easily installed


3. industrial control board supports the displays working 24 hours,-20~70 degrees.


4. VGA DVI interfaces ; touch screen USB connection for touch only


6. 15 inch open frame infrared anti-vandal touch is new and popular touch technology for Medical industry ,ATM, KIOSKS, Automatic equipments etc

IR Touchscreen monitor with IP65 front bezel for financial devices

IR Touchscreen monitor with IP65 front bezel for financial devices
