Specifications
Brand Name :
YESWITCH
Certification :
UL、CE、RoHS
Place of Origin :
China
MOQ :
500
Model Number :
PG-03A (NC)
Payment Terms :
T/T
Delivery Time :
3 weeks
Description
Product Description:

PG-03A momentary Normal Close (NC) Seat switch For Mower

PG-03A seat safety switch is a versatile and reliable switch with multiple functions, suitable for various application scenarios. Its unique design and convenient features make it highly suitable for use in electric lawn mowers, golf cart seats, forklifts and other equipment.

In the realm of garden machinery, the dual imperatives of equipment safety and operational ease cannot be overstated. The YESWITCH PG-03A seat safety switch is meticulously engineered for diverse applications in lawn mowers and garden machinery vehicles, serving as a critical safeguard for ensuring the safe and stable operation of such equipment. This safety switch features a set of normally closed contacts and a reset button, designed for one-click operation that ensures precise control over device start-stop functions. Its user-friendly, easy-install structure simplifies both assembly and disassembly, significantly reducing maintenance complexity and time costs—making equipment upkeep a hassle-free process.

From material selection to manufacturing, the PG-03A exemplifies exceptional quality. Its robust, durable construction offers high pressure resistance, enabling reliable performance even in harsh environments with frequent, high-intensity use. The switch’s safe and efficient connection design establishes a solid barrier for the smooth operation of garden equipment like lawn mowers, effectively preventing safety risks and equipment downtime caused by switch malfunctions.

Looking to elevate the safety protection of your garden machinery? The YESWITCH PG-03A safety switch is the ideal solution. Upgrade this essential component of your equipment today to experience superior performance and greater peace of mind in gardening and landscaping tasks.

Specification:

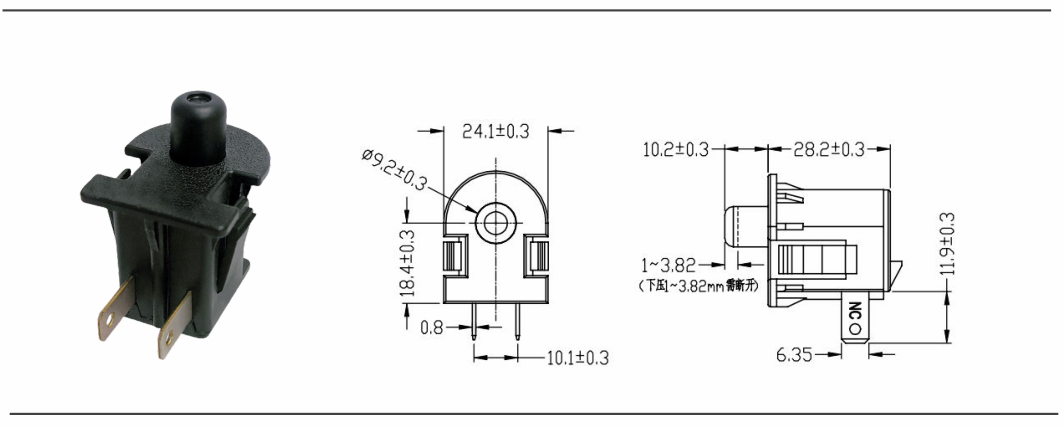

PG-03A (NC)
Operating Pressure: 1600±300gf
Operating Stroke: 9.5±1.0mm
Function: 1NC
Rating(Resistive load): 5A 24V DC
Contact Resistance: 50mΩMAX
Insulation Resistance: 100mΩMIN
Dielectric Strength: 1500VAC 1 minute
Electrical life: 10,000 cycles
Mechanical life: 75,000 cycles
Operating Temperature: -40~85 Degree
Relative Air Humidity: 45%~85%
Material
Body: PP,UL rated:94V-2
Plunger: PP,UL rated:94V-2
Terminal: Brass,Silver plate
Photo:

Agricultural Machinery / Forklift Seat Switch、Switch Bracket/ Safety Push Button Switch

Agricultural Machinery / Forklift Seat Switch、Switch Bracket/ Safety Push Button Switch

Agricultural Machinery / Forklift Seat Switch、Switch Bracket/ Safety Push Button Switch

Agricultural Machinery / Forklift Seat Switch、Switch Bracket/ Safety Push Button Switch
