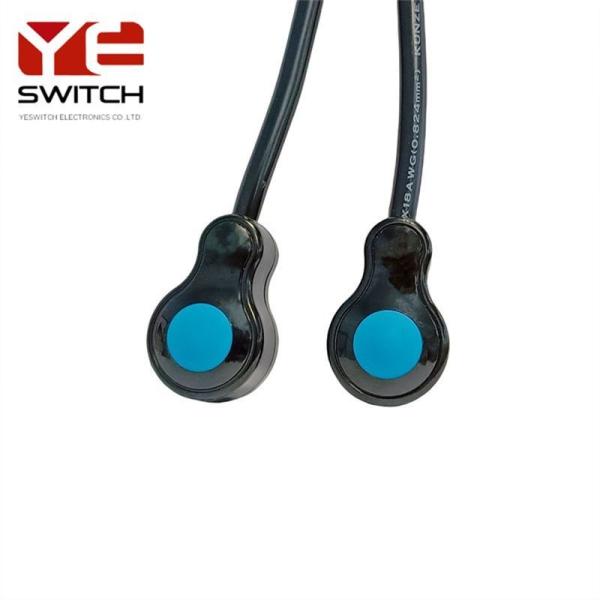

4mm IP68 Latching Momentary Switch Push Button On And Off Switch 50mA
4mm IP68 Latching Momentary Switch Push Button On And Off Switch 50mA
4mm IP68 Latching Momentary Switch Push Button On And Off Switch 50mA
4mm IP68 Latching Momentary Switch Push Button On And Off Switch 50mA
4mm IP68 Latching Momentary Switch Push Button On And Off Switch 50mA
4mm IP68 Latching Momentary Switch Push Button On And Off Switch 50mA
4mm IP68 Latching Momentary Switch Push Button On And Off Switch 50mA
4mm IP68 Latching Momentary Switch Push Button On And Off Switch 50mA
4mm IP68 Latching Momentary Switch Push Button On And Off Switch 50mA
4mm IP68 Latching Momentary Switch Push Button On And Off Switch 50mA
4mm IP68 Latching Momentary Switch Push Button On And Off Switch 50mA
4mm IP68 Latching Momentary Switch Push Button On And Off Switch 50mA
Specifications
Certification :
CCC, TUV/RoHS
Price :
Negotiable
Brand Name :
YESWITCH
Model Number :
PB18 Series
Place of Origin :
China
Payment Terms :
T/T
Model NO. :
PB18 Series
Wiring :
Single Live Line
Principle :
Capacitive
Application :
Home Appliance, Electronics, Lighting, Industrial, Apartment/Villa, Hotel, Commercial, Home
Type :
Normal Open
Number of Switch :
Single Control Switch
Structure :
Power Built-in Type
Usage :
Control Button, Start Button, Limit Button, Reset Button, Check Button, Playback Switch, Disconnector, Change-over Switch, Control Switch
Kind :
Single-pole on-off Switch
Contact Type :
Wire Terminal
Detection Method :
Retro-reflective Mode
Brand :
Yeswitch
Contact Rating :
50mA 12V DC
Button Color :
Red/Blue
Contact Resistance :
50m Ohm Max
Electrical Life :
10,000 Cycles
Operating Temperature :
-20-60 Degrees
Nut Torque :
5~14nm
Operating Pressure :
3~4n
Operating Stroke :
4mm
Protection Grade :
Lp68
Function :
on-off
Transport Package :
Carton
Trademark :
YESWITCH
Origin :
China
HS Code :
8536500000
Supply Ability :
50, 000/Month
Package Size :
9.00cm * 8.00cm * 5.00cm
Package Gross Weight :
0.010kg
Customization :
Available
Protection :
Durable, Explosion-Proof, Waterproof, Dust-Proof, Insulation
Feature :
Round Button
Shipping Cost :
Contact the supplier about freight and estimated delivery time.
  :
Support payments in USD
Secure payments :
Every payment you make on Made-in-China.com is protected by the platform.
Refund policy :
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Description
IP68 Waterproof Level Push Button Switches With Wires
Description:
The IP68 waterproof push button switch is a high-protection-level switch device designed to meet the needs of use in humid, watery or outdoor environments. This switch not only has excellent waterproof performance, but also has the characteristics of dustproof, impact resistance and vibration resistance. The online mid-way push button switch means that this switch can be used as a mid-way control point in the circuit to achieve remote or automatic control. The self-locking and momentary design with light allows users to intuitively see the status of the switch and conveniently control the on and off of the circuit through the self-locking and reset functions.

Main features
IP68 waterproof level: This is one of the highest levels among waterproof switches at present, which means that this switch can be immersed in water for a long time without damage, and is very suitable for outdoor or humid environments.

Illuminated design: The waterproof push button switches are equipped with an indicator light, which can clearly display the current state of the switch (open or closed), so that users can understand the circuit status at any time.

Self-locking momentary function: This switch has a self-locking function, which can remain in the closed state after being pressed, and will not disconnect until the reset button is pressed again. This design not only improves the convenience of use, but also increases safety.

Online mid-way control: It can be used as a mid-way control point in the circuit to achieve remote or automatic control, which is very suitable for occasions that require remote monitoring and control.

Rainproof and splashproof: The specially designed rainproof and splashproof structure ensures normal operation under severe weather conditions.
Application scenarios

IP68 waterproof push button switches are widely used in various outdoor equipment, industrial automation systems, ships, yachts, RVs, engineering vehicles and other occasions that require high protection level switches. Especially in occasions that require remote monitoring and control, and need to withstand severe weather conditions, the advantages of this switch are particularly obvious.
Specification:
Rating: 50mA 12V DC
50m ohm Max 50m ohm Max
Electrical life: 10,000 cycles
Operating Temperature: -20-60 Degrees
Nut Torque: 5~14Nm
Operating Pressure: 3~4N
Operating Stroke: 4mm
Protection Grade: lP68
Button Color: Red/Blue
Function: ON-OFF
Material:
Bushing : PA66
Base : PBT/PA66
Actuator : PA66
Inner Assembly: POM / Silicone.
Spring : Spring steel.
Sealing: Silicone.
O-Ring : Silicone
Detailed Photos
4mm IP68 Latching Momentary Switch Push Button On And Off Switch 50mA4mm IP68 Latching Momentary Switch Push Button On And Off Switch 50mA4mm IP68 Latching Momentary Switch Push Button On And Off Switch 50mA4mm IP68 Latching Momentary Switch Push Button On And Off Switch 50mA4mm IP68 Latching Momentary Switch Push Button On And Off Switch 50mA4mm IP68 Latching Momentary Switch Push Button On And Off Switch 50mA4mm IP68 Latching Momentary Switch Push Button On And Off Switch 50mA
