Specifications
Certification :
RoHS, CE
Price :
Negotiable
Brand Name :
YESWITCH
Model Number :
X7-H Series
Place of Origin :
China
Payment Terms :
T/T
Model NO. :
X7-H Series
Lamp :
With Lamp
Color :
Red
Condition :
New
Rating :
16A(6-48VDC)
Dielectric Withstand Voltage :
1500VAC 1 Minute
Insulation Resistance :
500VDC 100mΩ(Min)
Contact Resistance :
20mΩ Initial (Max.)
Waterproof Grade :
IP67
Transport Package :
Carton
Specification :
17mm
Trademark :
YESWITCH
Origin :
China
HS Code :
8536500000
Supply Ability :
50, 000/Month
Package Size :
9.00cm * 8.00cm * 5.00cm
Package Gross Weight :
0.010kg
Customization :
Available
Usage :
Electrical Appliance, Machinery, Digital Products, Communication, Vehicle, Toys, Ship,Automotive Equipment
Standard :
Standard
Shipping Cost :
Contact the supplier about freight and estimated delivery time.
  :
Support payments in USD
Secure payments :
Every payment you make on Made-in-China.com is protected by the platform.
Refund policy :
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Description
IP67 X7-H Series High Current 16A Rocker Switch
Product Description

YESWITCH X7-H Series rocker switches have 16A high current,which can meet the needs of various electrical appliances,such as ships,construction equipment,agricultural equipment,recreational vehicle,landscaping equipment and industrial equipment.It is a very practical switch products.

The automotive rocker switches provide two options with illuminated and without illuminated,with the color of the LED has red,orange,blue,green,yellow,white and other options,can meet the needs of different users.

The red single pole rocker switch with IP67 lever,even in harsh environments can be used normally.And the rocker switch has the momentary and self-lock function,which means that the switch can be automatically reset to the initial position,avoiding the cumbersome and unsafe factors of manual operation.

The DC rocker switch has ON-OFF,ON-OFF-ON.ON-ON,(ON)-OFF,(ON)-ON,(ON)-OFF-(ON) and (ON)-OFF-ON function,to facilitate users to carry out different control needs.The 16A rocker switch reach 1500VAC 1 minute dielectric withstand voltage and 500VDC 100m ohm insulation resistance.

Specification:
ROCKER SWITCH MODEL: X7-H SERIES
RATING: 16A(6-48VDC)(CURUS/ENEC15)
DIELECTRIC WITHSTAND VOLTAGE: 1500VAC 1 MINUTE
INSULATION RESISTANCE: 500VDC 100MΩ(MIN)
CONTACT RESISTANCE: 20MΩ INITIAL (MAX.)
WATERPROOF GRADE: IP67

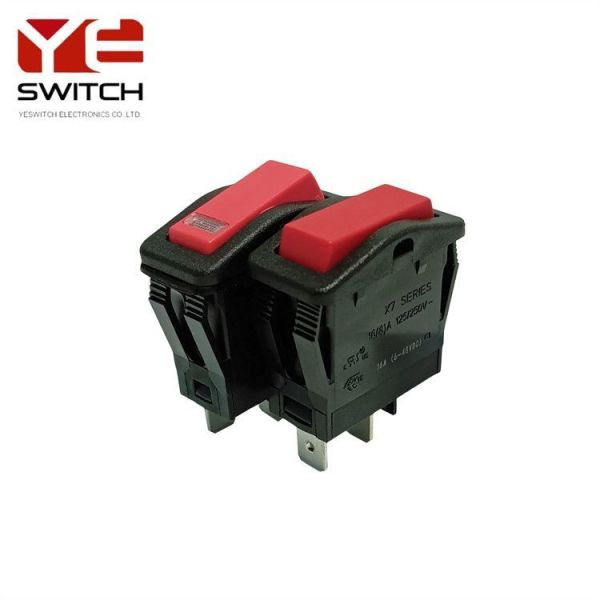

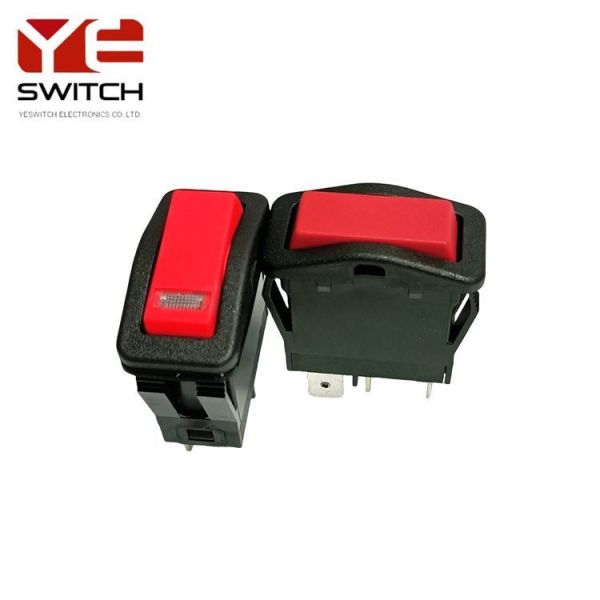

Detailed Photos

16A Rocker Round Momentary Switch High Current Custom Push Button16A Rocker Round Momentary Switch High Current Custom Push Button16A Rocker Round Momentary Switch High Current Custom Push Button16A Rocker Round Momentary Switch High Current Custom Push Button16A Rocker Round Momentary Switch High Current Custom Push Button16A Rocker Round Momentary Switch High Current Custom Push Button
16A Rocker Round Momentary Switch High Current Custom Push Button
