12mm Mounting Metal Push Button Switch 1NO Latching Switch High Head
12mm Mounting Metal Push Button Switch 1NO Latching Switch High Head
12mm Mounting Metal Push Button Switch 1NO Latching Switch High Head
12mm Mounting Metal Push Button Switch 1NO Latching Switch High Head
12mm Mounting Metal Push Button Switch 1NO Latching Switch High Head
12mm Mounting Metal Push Button Switch 1NO Latching Switch High Head
12mm Mounting Metal Push Button Switch 1NO Latching Switch High Head
12mm Mounting Metal Push Button Switch 1NO Latching Switch High Head
12mm Mounting Metal Push Button Switch 1NO Latching Switch High Head
12mm Mounting Metal Push Button Switch 1NO Latching Switch High Head
12mm Mounting Metal Push Button Switch 1NO Latching Switch High Head
12mm Mounting Metal Push Button Switch 1NO Latching Switch High Head
Specifications
Certification :
ISO9001, CE, CCC
Price :
Negotiable
Brand Name :
YESWITCH
Model Number :
MPB12-A02HE-0-JR-0V
Place of Origin :
China
Payment Terms :
T/T
Model NO. :
MPB12-A02HE-0-JR-0V
Wiring :
Single Live Line
Principle :
Capacitive
Application :
Home Appliance, Electronics, Lighting, Industrial, Apartment/Villa, Hotel, Commercial, Home
Type :
Normal Open
Number of Switch :
Single Control Switch
Structure :
Power Built-in Type
Usage :
Control Button, Start Button, Limit Button, Reset Button, Check Button, Playback Switch, Disconnector, Change-over Switch, Control Switch
Kind :
Single-pole on-off Switch
Contact Type :
Type a Contact
Detection Method :
Retro-reflective Mode
Rating :
100mA24VDC
Electrical Life :
100.000 Make-and-Break Cyclesat F
Mechanicallfe :
500.000.Cycles
Insulation Resistance :
1.000mq Min at 500VDC
Dielectric Strength :
1.000V RMS@Sea Level
Contact Resistance :
50mq Max.@1A 12VDC(Initial VAL
Operating Temperature :
-20 to 55 Degree
Travel :
About 1.8mm
Operation Pressure :
3.0+1.5n
Ingress Protection :
IP67
Torque :
1-3nm.
Bushing :
Stainless Steel
Base :
PA66
Actuator :
Stainless Steel/PC
Function :
off-(on)
Transport Package :
Carton
Specification :
12 mm
Origin :
China
HS Code :
8536500000
Supply Ability :
50, 000/Month
Package Size :
9.00cm * 8.00cm * 5.00cm
Package Gross Weight :
0.010kg
Customization :
Available
Protection :
Durable, Explosion-Proof, Waterproof, Dust-Proof
Feature :
Flat
Shipping Cost :
Contact the supplier about freight and estimated delivery time.
  :
Support payments in USD
Secure payments :
Every payment you make on Made-in-China.com is protected by the platform.
Refund policy :
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Description

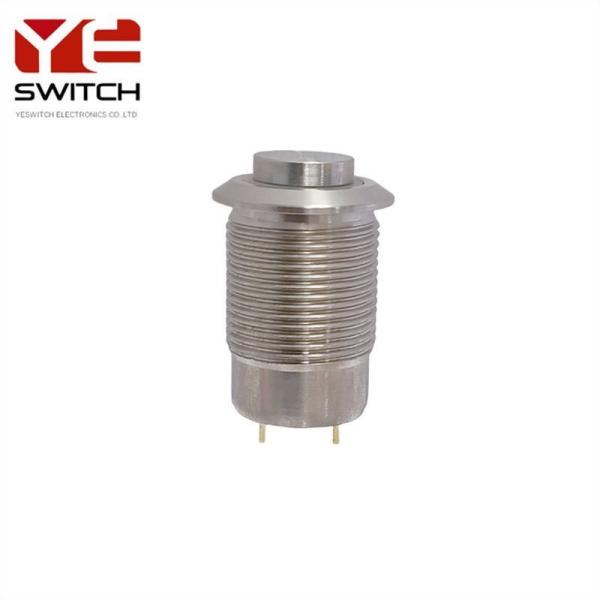

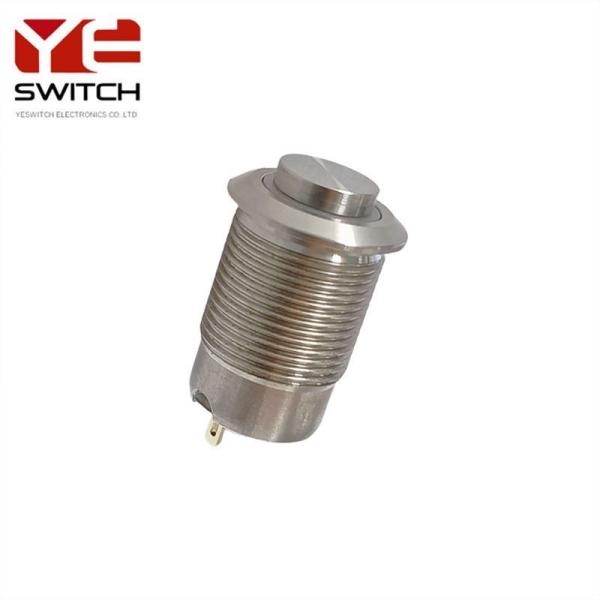

Momentary Metal Push Button Switch High Head 12mm Mounting 1NO
Description:

YESWITCH momentary metal push button switch is a perfect choice if you are in need of a heavy-duty push-button!These 12mm waterproof push button is a very tough, small,panel-mount switch.The automotive push button switch with stainless steel has a reset OFF-(ON) function.Long press the switch to turn it on and release the switch to turn it off.It's very easy to use.

Built from quality materials and having IP67 waterproof protection,these waterproof metal switch are reliable for dusty or wet environments.The push button switches have an electrical life of 100,000 cycles and mechanical life of 500,000 cycles since they are durable and high
performing switches. The 12mm automotive switches use brass,gold flash over silver contact and. At the same time, automotive push button switches also provide two options with and without LED,which can meet the needs of different users.

And the automotive push button switches have a wide range of applications,including being used in ships,modification of vehicles,toys,industrial uses,medical equipment and home switches.These features have made them suitable for different projects aimed at enhancing convenience,dependability and durability.
