16mm IP68 Momentary Silicone Metal Push Button Switch Stainless Steel 80mm Wire
16mm IP68 Momentary Silicone Metal Push Button Switch Stainless Steel 80mm Wire
16mm IP68 Momentary Silicone Metal Push Button Switch Stainless Steel 80mm Wire
16mm IP68 Momentary Silicone Metal Push Button Switch Stainless Steel 80mm Wire
16mm IP68 Momentary Silicone Metal Push Button Switch Stainless Steel 80mm Wire
16mm IP68 Momentary Silicone Metal Push Button Switch Stainless Steel 80mm Wire
16mm IP68 Momentary Silicone Metal Push Button Switch Stainless Steel 80mm Wire
16mm IP68 Momentary Silicone Metal Push Button Switch Stainless Steel 80mm Wire
16mm IP68 Momentary Silicone Metal Push Button Switch Stainless Steel 80mm Wire
16mm IP68 Momentary Silicone Metal Push Button Switch Stainless Steel 80mm Wire
16mm IP68 Momentary Silicone Metal Push Button Switch Stainless Steel 80mm Wire
16mm IP68 Momentary Silicone Metal Push Button Switch Stainless Steel 80mm Wire
Specifications
Certification :
CE, ISO9001, cUL, VDE, CQC,RoHS,Reach
Price :
Negotiable
Brand Name :
YESWITCH
Place of Origin :
China
Payment Terms :
T/T
Model NO. :
IP68-PBM16
Condition :
New
Customized :
Customized
Application :
Road Bike, Security Devices, Electrical Housewares, Consumer
Material :
Steel
Protection Degree :
IP68
Rating :
3A/250VAC
Panel Mounting Hole :
16mm
Bushing :
Stainless Steel
Base :
PA66
Actuator :
Silicone
Function :
(on)-off
Mechanical Life :
100,000 Cycles
Operating Temperature :
-20~70 Degree
Transport Package :
Carton
Specification :
UL, CE, ROHS, SGS, CQC
Trademark :
Yeswitch
Origin :
Dongguan, China
HS Code :
853650000
Supply Ability :
50, 0000/Month
Customization :
Available
After-sales Service :
1 Year
Warranty :
12 Months
Description

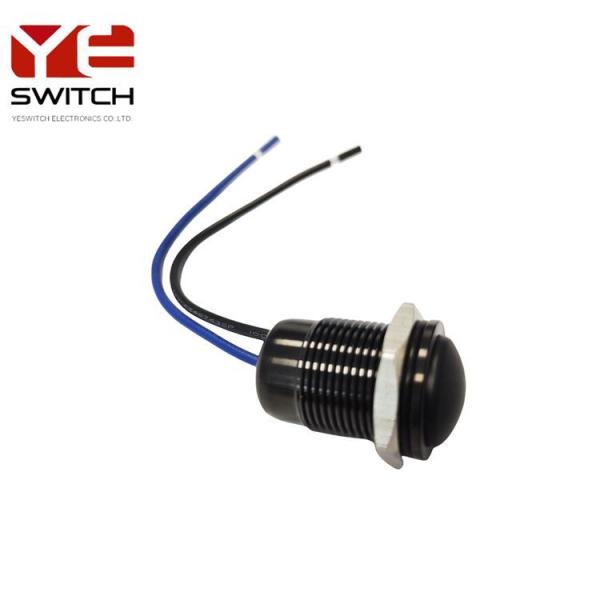

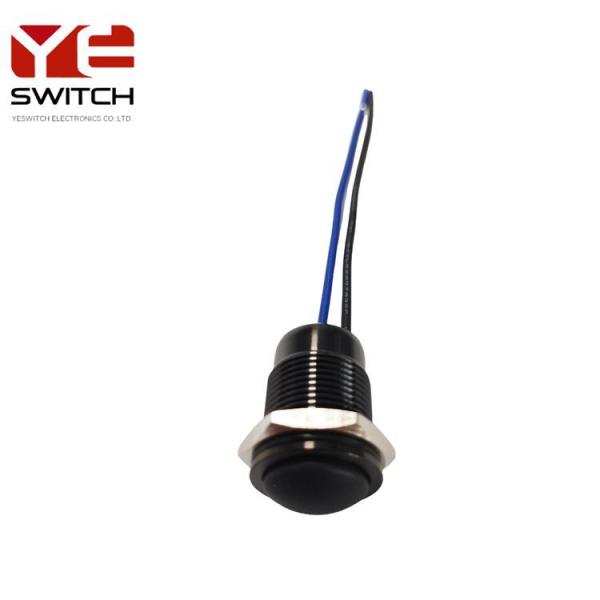

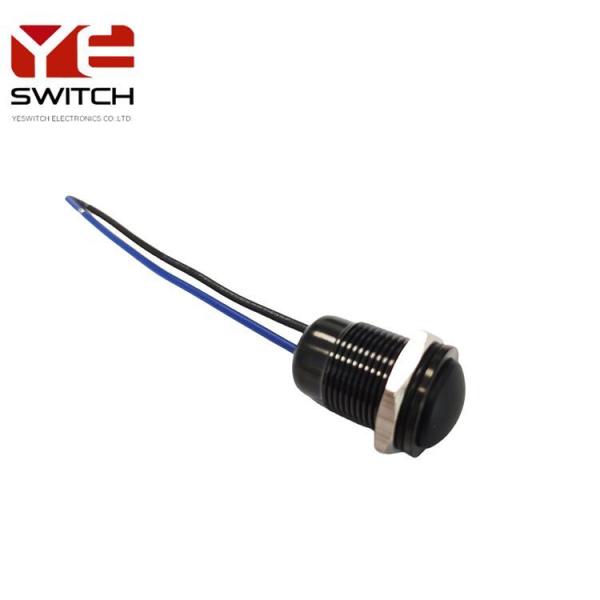

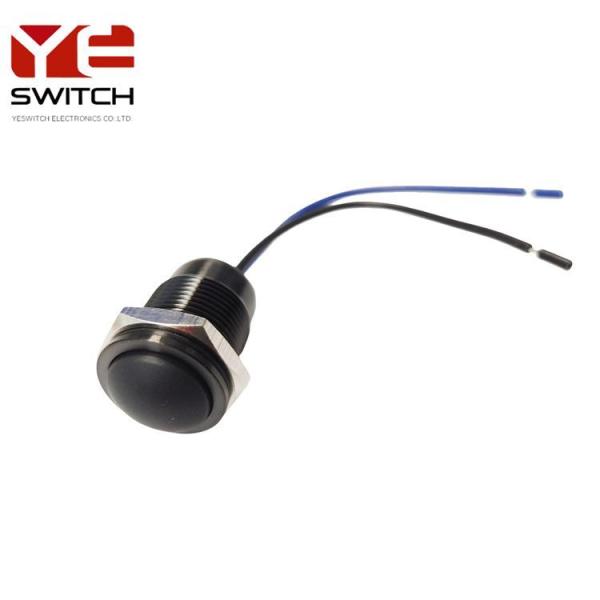

16mm IP68 Momentary Silicone Button Switch With 80mm Wire
The 16mm IP68 waterproof push button switch, featuring a reset OFF-(ON) mechanism, is a pinnacle of reliability and functionality. Constructed with a robust metal frame and a silicone button, it boasts an extraordinary lifespan of up to 100,000 cycles, ensuring consistent performance even under frequent operation. With an electrical rating of 3A 250V, it effortlessly meets the power demands of a wide array of electrical appliances, from small - scale devices to more complex systems.
​

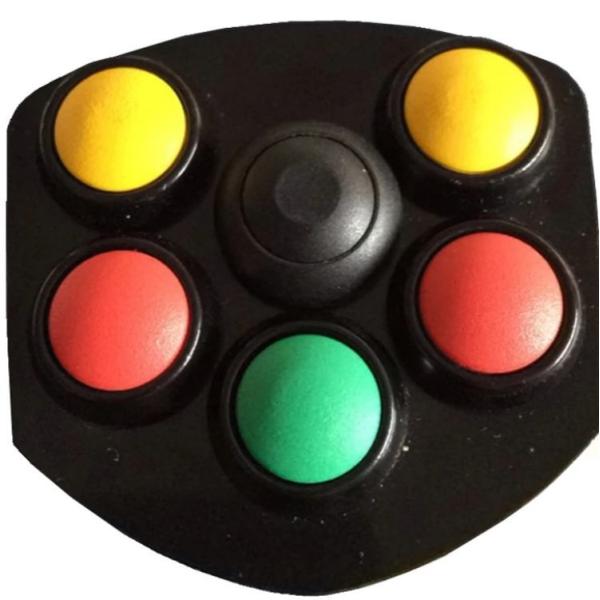

Personalization is at the forefront, as the switch offers a diverse palette of silicone button colors, allowing users to tailor it to their aesthetic preferences or specific application requirements. Its operational versatility is further enhanced by an impressive working temperature range of -20°C to 70°C, enabling seamless performance in extreme cold or sweltering heat, whether in arctic exploration vehicles or desert - based industrial setups.
​
The IP68 dust and water resistance rating is a game - changer. It provides complete protection against dust ingress and can withstand continuous submersion in water at significant depths, making it impervious to all forms of environmental pollution and harsh conditions. Backed by stringent certifications, this switch guarantees top - tier quality and reliability. Widely adopted in field vehicles for rugged control, medical instruments demanding hygiene and precision, processing tools requiring durability, and agricultural machinery facing harsh outdoor elements, it stands as an exemplary choice for those seeking high - quality push button switch solutions.
