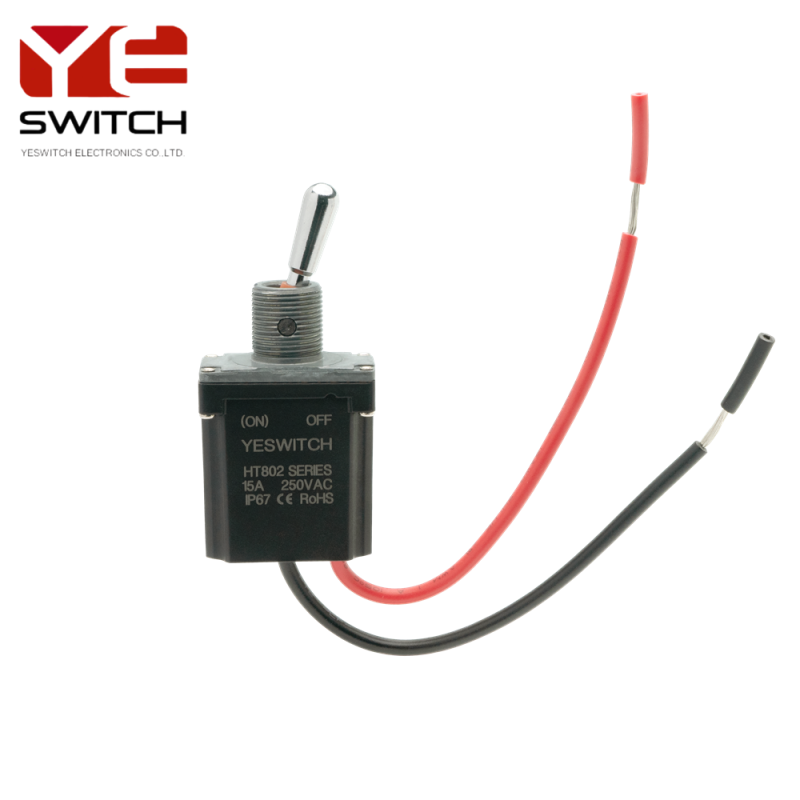

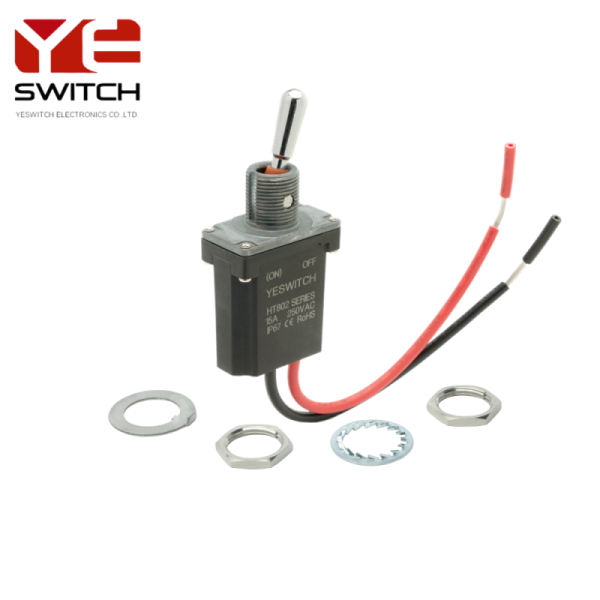

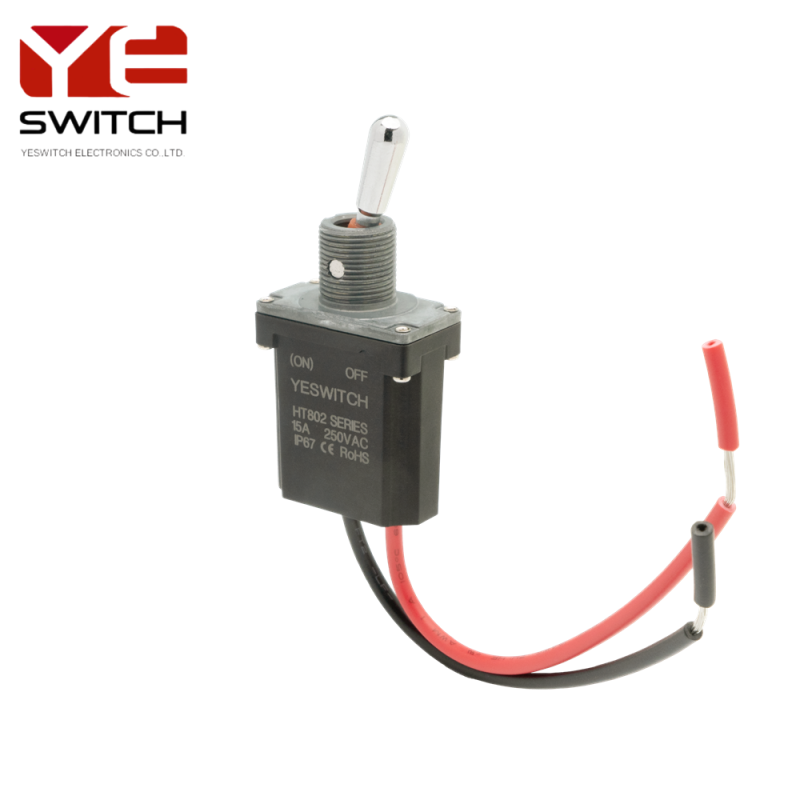

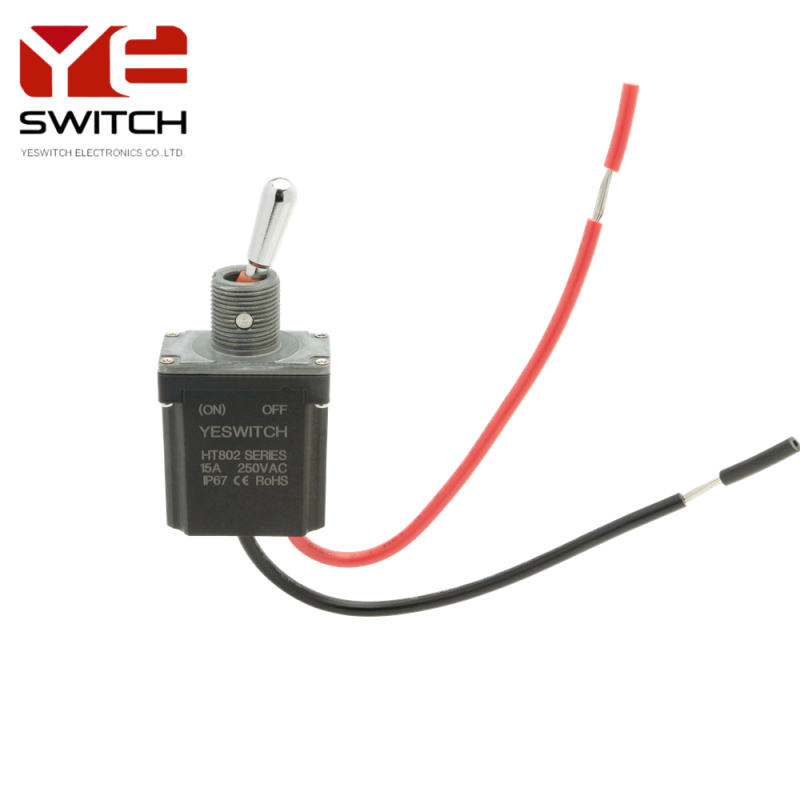

IP68 SPST (ON)-OFF Metal Toggle Switch Metal Handle For heavy equipment

Designed for heavy equipment, this IP68-rated switch features a metal handle, SPST (ON)-OFF function, and rugged build for dust/water resistance and durability.

Key feature

Rubber-Insulated Terminals with Wires

Rubber-Insulated Terminals with Wires Featuring high-grade rubber-insulated terminals and sturdy wires for reliable connectivity. The base, made of premium alloys and engineered polymers, withstands -40°C to +85°C, corrosion, and harsh conditions via rigorous testing.

IP68 waterproof and dustproof rating

The tail adopts an elastic corrugated tube structure for sealing, which can effectively prevent dust, moisture and liquids from entering, even when submerged 1.5 meters underwater for 30 minutes.It can still maintain reliable performance in rain, humid environments, salt fog environments or oil-contaminated environments.

100,000-Cycle Mechanical Life

The HT802 series toggle switches offer exceptional durability with a 100,000-cycle mechanical life, enduring prolonged and frequent use while minimizing replacement and maintenance needs. Their robust design ensures reliable performance through heavy-duty operations, making them ideal for high-demand industrial applications.

Wide Temperature range

Wide Temperature Range Engineered for extreme environments, this switch operates stably from -40°C to 85°C, maintaining consistent performance in freezing outdoor conditions or high-heat zones near engines. Its thermal-stress-resistant design prevents performance degradation, making it ideal for outdoor equipment, aerospace systems, and engine-compartment applications.

Why Select the HT802 Series?

Tailored for mission-critical applications, these toggle switches blend rugged resilience with intuitive operation. The IP68-rated bellows, integrated locking mechanism, and corrosion-proof construction guarantee seamless performance in aerospace, marine, and industrial environments where downtime is intolerable. Engineered to withstand extreme conditions, they deliver fail-safe functionality when reliability is non-negotiable.

CONTACT RESISTANCE:20m Ohm(Max) INSULATION RESISTANCE:100MΩ MIN/100VDC

MECHANICAL LIFE CYCLE:100.000 CYCLES OPERATING TEMPERATURE:-40 To +85℃

FRONT SEAL:IP68

RESISTIVE LOAD:15A 125/250VAC,15A 28VDC INDUCTIVE LOAD:15A 28VDC

LEVER:STAINLESS STEEL HOUSING:NYLON (UL94V-0)

TERMINAL:COPPER ALLOY WAVE SOLDERING TEMPERATURE:260±5℃

SALT SPRAY TEST:WITHSTANDS 96 TO 120 HOURS OR MORE

DIELECTRIC STRENGTH:1500VAC 1MINUTE
