HT802 series IP68 Rating industrial metal toggle switch for mechanical industry

The HT802 Series Industrial Metal Toggle Switch is engineered to deliver uncompromising performance and reliability in the most challenging environments within the mechanical industry. Designed for professionals who require robust control solutions, this switch combines superior durability with exceptional sealing to ensure long-term operation under extreme conditions.

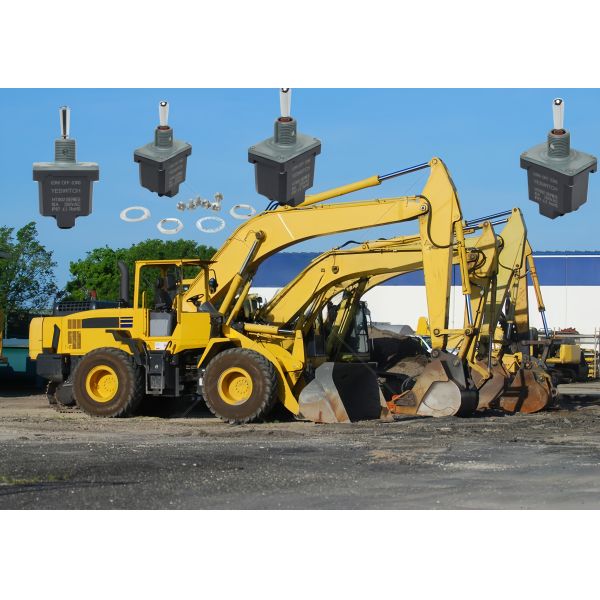

Constructed with a heavy-duty metal housing and a high-strength actuator, the HT802 is built to withstand significant mechanical stress, impact, vibration, and frequent use. Its core feature is the IP68 rating, guaranteeing complete protection against dust ingress and prolonged immersion in water under specified pressure. This makes it an ideal choice for applications exposed to wash-downs, humidity, oil, coolants, and airborne contaminants commonly found in manufacturing plants, agricultural machinery, construction equipment, and material handling systems.

The switch offers a variety of electrical configurations, including SPDT and DPDT circuitry, with a range of electrical ratings to handle diverse power control needs. Options for maintained or momentary action provide flexibility for different control functions. The highly visible, ergonomic toggle ensures easy and precise operation, even while wearing gloves.

Features like silver-plated terminals ensure optimal conductivity and corrosion resistance, while the secure panel sealing nut provides a tight, reliable seal upon installation. Available in multiple actuator styles and terminal types, the HT802 series offers a versatile solution for machine control, power switching, and equipment activation.

Key Features:

IP68 Protection: Fully sealed against dust and high-pressure water jets/submersion.

Rugged Metal Construction: Withstands high impact, vibration, and harsh industrial conditions.

High Electrical Rating: Up to 20A capacity for robust power control.

Environmental Resilience: Resists oil, chemicals, and temperature extremes.

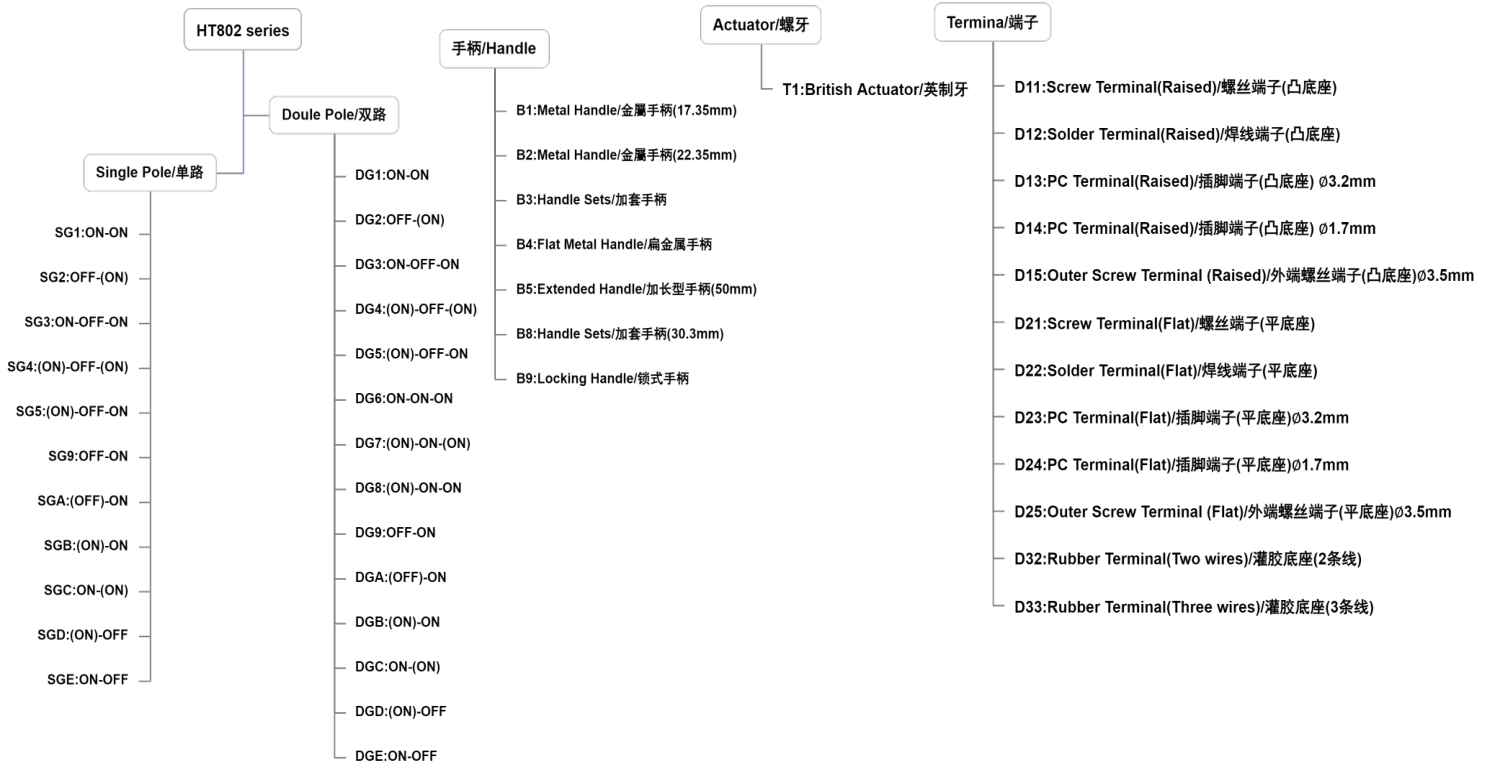

Versatile Configurations: SPDT/DPDT, maintained/momentary actions, various terminals.

Secure Panel Mounting: Easy installation with a locking nut for a permanent, leak-proof seal.

Choose the HT802 Series for a dependable, industrial-grade switch that guarantees safety, performance, and endurance in critical mechanical applications.

CONTACT RESISTANCE:20mΩ.(Max) INSULATION RESISTANCE:100MΩ MIN/100VDC

MECHANICAL LIFE CYCLE:100.000 CYCLES OPERATING TEMPERATURE:-40 To +85℃

FRONT SEAL:IP68

RESISTIVE LOAD:15A 125/250VAC,15A 28VDC INDUCTIVE LOAD:15A 28VDC

LEVER:STAINLESS STEEL HOUSING:NYLON (UL94V-0)

TERMINAL:COPPER ALLOY WAVE SOLDERING TEMPERATURE:260±5℃

SALT SPRAY TEST:WITHSTANDS 96 TO 120 HOURS OR MORE

DIELECTRIC STRENGTH:1500VAC 1MINUTE
