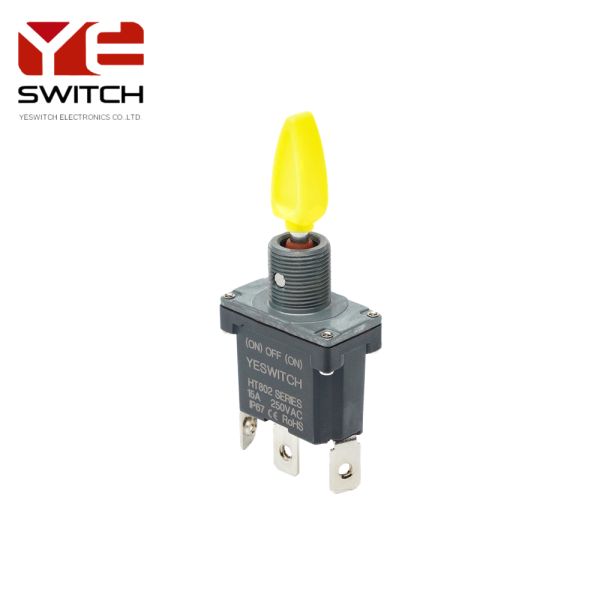

Single pole waterproof Industrial metal toggle switch with outer screw terminal

Built for Demanding Environments

Engineered for reliability in the most challenging conditions, our single pole (SPST) industrial metal toggle switch sets the standard for durability, safety, and performance. This robust switch is designed to deliver unwavering operation in manufacturing, marine, agricultural, and outdoor applications where exposure to moisture, dust, vibration, and physical impact is a constant concern.

Uncompromising Durability and Protection

The switch's core is housed within a heavy-duty zinc alloy body, offering exceptional resistance to corrosion, impact, and wear. It is meticulously sealed to achieve an IP67 waterproof rating, ensuring complete protection against dust ingress and the ability to withstand immersion in water up to 1 meter for 30 minutes. This makes it the ideal solution for wash-down areas, food processing plants, off-road vehicles, and marine equipment.

Secure and Efficient Connections

Featuring prominent outer screw terminals, this switch simplifies installation and provides a supremely reliable electrical connection. The screw terminals readily accept heavy-gauge wiring and allow for a firm, secure clamp that resists loosening even under extreme vibration, preventing potential failure points and ensuring long-term operational integrity.

Superior Performance Specifications

Rated for high-amperage applications, this switch handles up to 20A at 125VAC or 15A at 250VAC, making it capable of controlling motors, powerful lighting, and heavy-duty machinery. The precision-engineered internal mechanism ensures a crisp, positive toggle action with a clear audible click, providing tactile confirmation of operation.

Designed for Practical Installation

A integrated nut secures the switch firmly to any panel up to 3mm thick, creating a tight seal and preventing rotation during use. The highly visible actuator is designed for easy operation, even while wearing gloves.

Key Features:

Construction: Heavy-duty zinc alloy metal body

Sealing: IP67 Rated (Waterproof and Dustproof)

Terminals: Outer Screw Terminals for secure wiring

Configuration: Single Pole, Single Throw (ON/OFF)

Installation: Panel mount with sealing nut

Choose the switch that guarantees performance where it matters most. Upgrade your equipment with the resilience of true industrial-grade components.

CONTACT RESISTANCE:20mΩ.(Max) INSULATION RESISTANCE:100MΩ MIN/100VDC

MECHANICAL LIFE CYCLE:100.000 CYCLES OPERATING TEMPERATURE:-40 To +85℃

FRONT SEAL:IP68

RESISTIVE LOAD:15A 125/250VAC,15A 28VDC INDUCTIVE LOAD:15A 28VDC

LEVER:STAINLESS STEEL HOUSING:NYLON (UL94V-0)

TERMINAL:COPPER ALLOY WAVE SOLDERING TEMPERATURE:260±5℃

SALT SPRAY TEST:WITHSTANDS 96 TO 120 HOURS OR MORE

DIELECTRIC STRENGTH:1500VAC 1MINUTE
