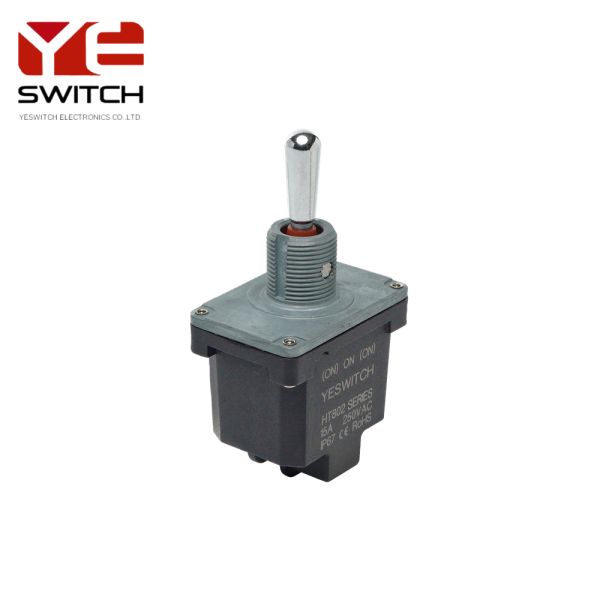

High current Waterproof and dustproof (ON)-ON-(ON) Industrial toggle switch

Engineered for extreme industrial applications, this high-current, triple-position (ON)-ON-(ON) toggle switch is designed to deliver unwavering performance in the most demanding environments. Its core strength lies in a superior waterproof and dustproof seal, achieving an IP68 rating that guarantees complete protection against intrusive dust, high-pressure water jets, and prolonged submersion. This makes it the ultimate choice for harsh settings like agricultural machinery, construction equipment, marine applications, and heavy-duty industrial control systems where exposure to moisture, dirt, oils, and coolants is a constant challenge.

Constructed with a robust metal housing and a high-strength, corrosion-resistant actuator, this switch is built to endure significant mechanical stress, intense vibration, and frequent operation. The unique (ON)-ON-(ON) momentary action in both directions from the center-off position provides versatile control for complex functions such as actuating a winch in both directions, controlling hydraulic movements, or any application requiring bidirectional momentary signaling.

Despite its rugged exterior, it features a highly tactile and ergonomic operation, ensuring positive and clear switching feedback, even when the user is wearing gloves. The high-current capacity, allows it to directly manage substantial electrical loads without the immediate need for relays in many circuits. Internal silver-plated terminals ensure optimal conductivity, minimize voltage drop, and provide excellent resistance to corrosion over time.

Key Features:

• Superior Sealing: Impervious to dust, water, and chemicals, ensuring reliability in wet and dirty conditions.

• High-Current Handling: Robust electrical rating for power-intensive applications.

• Rugged Metal Construction: Withstands impact, vibration, and extreme environmental stress.

• 3-Position (ON)-ON-(ON) Momentary Action: Provides flexible, bidirectional control from a stable center-off position.

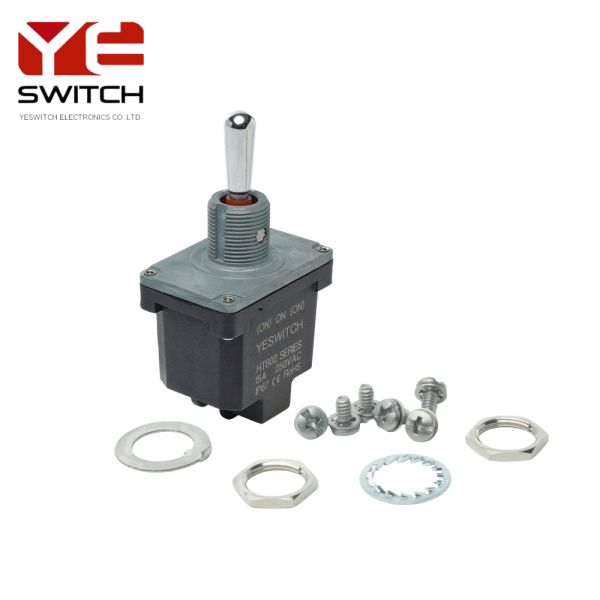

• Secure Panel Seal: Includes a locking nut for a tight, reliable, and leak-proof panel installation.

• Corrosion-Resistant Terminals: Silver-plated contacts ensure long-term conductivity and reliability.

This industrial toggle switch is the definitive solution for engineers and designers who require a durable, high-performance, and sealed component for critical bidirectional control tasks in heavy machinery and equipment.

CONTACT RESISTANCE:20mΩ.(Max) INSULATION RESISTANCE:100MΩ MIN/100VDC

MECHANICAL LIFE CYCLE:100.000 CYCLES OPERATING TEMPERATURE:-40 To +85℃

FRONT SEAL:IP68

RESISTIVE LOAD:15A 125/250VAC,15A 28VDC INDUCTIVE LOAD:15A 28VDC

LEVER:STAINLESS STEEL HOUSING:NYLON (UL94V-0)

TERMINAL:COPPER ALLOY WAVE SOLDERING TEMPERATURE:260±5℃

SALT SPRAY TEST:WITHSTANDS 96 TO 120 HOURS OR MORE

DIELECTRIC STRENGTH:1500VAC 1MINUTE
