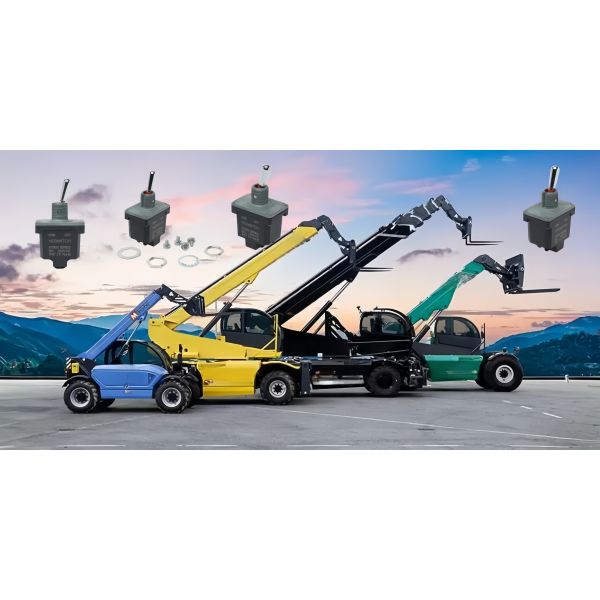

DPDT double pole Industrial metal toggle switch with screw terminal for heavy equipment

Designed to meet the rigorous demands of heavy equipment, our DPDT (Double Pole Double Throw) industrial metal toggle switch with screw terminals delivers robust performance in harsh operating environments. Ideal for construction machinery, mining equipment, agricultural tractors, and industrial loaders, this switch combines versatile circuit control with exceptional durability to handle high-power applications.

The DPDT configuration enables simultaneous control of two independent circuits, supporting both ON-OFF-ON and momentary switching modes. This versatility makes it perfect for functions like directional control (forward/reverse), auxiliary tool activation, or dual-system switch in heavy machinery, where precise and reliable circuit management is critical.

Crafted from high-grade carbon steel with a corrosion-resistant zinc plating, the switch housing and toggle lever withstand extreme vibrations, impacts, and temperature fluctuations (-40°C to 85°C). The metal construction ensures long-term integrity in environments exposed to dirt, moisture, and chemical contaminants—common in heavy equipment operations.

These terminals allow for easy, tool-assisted wiring adjustments, ensuring consistent conductivity even under prolonged mechanical stress. The silver-plated copper contacts handle up to 15A at 250VAC, making them suitable for high-current systems like hydraulic pumps, winches, and lighting arrays.

The toggle mechanism features a positive, tactile action with clear detents, preventing accidental switching and ensuring operators can confirm positions even with gloved hands. With an IP68 ingress protection rating, the switch resists dust ingress and low-pressure water jets, maintaining performance in dirty or wet conditions.

Its compact design fits standard panel cutouts, facilitating seamless integration into existing control systems. For heavy-duty applications demanding reliable, versatile circuit control, this DPDT toggle switch stands as a trusted solution.

CONTACT RESISTANCE:20mΩ.(Max) INSULATION RESISTANCE:100MΩ MIN/100VDC

MECHANICAL LIFE CYCLE:100.000 CYCLES OPERATING TEMPERATURE:-40 To +85℃

FRONT SEAL:IP68

RESISTIVE LOAD:15A 125/250VAC,15A 28VDC INDUCTIVE LOAD:15A 28VDC

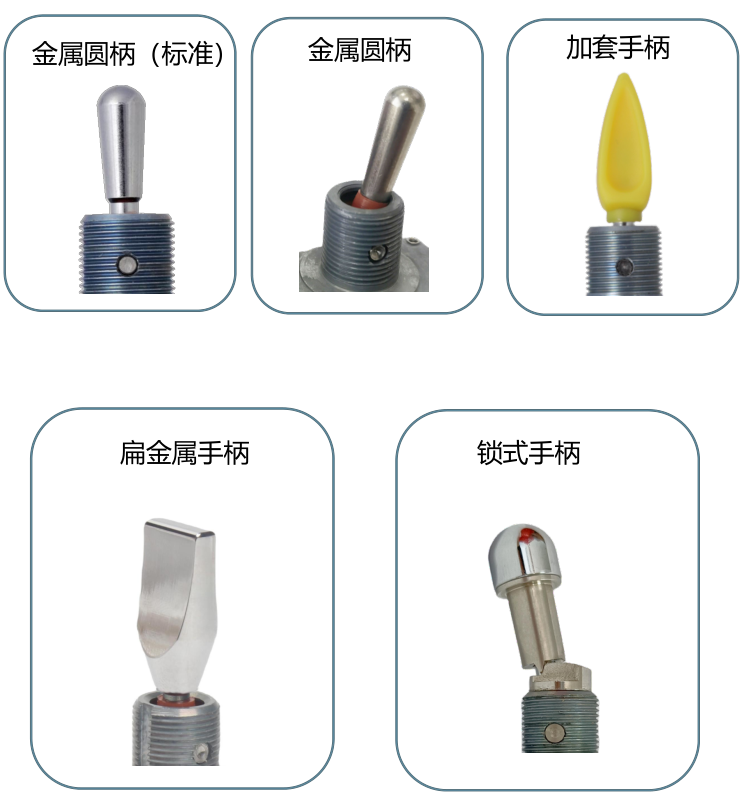

LEVER:STAINLESS STEEL HOUSING:NYLON (UL94V-0)

TERMINAL:COPPER ALLOY WAVE SOLDERING TEMPERATURE:260±5℃

SALT SPRAY TEST:WITHSTANDS 96 TO 120 HOURS OR MORE

DIELECTRIC STRENGTH:1500VAC 1MINUTE
