Specifications
Brand Name :
HBYIQI
Model Number :
HB-VMS-2010F
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1SET
Price :
Negotiation
Payment Terms :
T/T
Delivery Time :
15Days
Packaging Details :
International Standard Package
X/Y Axis Travel :
200*100mm
Z Axis Travel :
245mm(Effective Space),200mm(Focusing Stroke); 95mm(Working Distance)
Glass Table Dimension :
230*130mm
Measuring Accuracy :
≤3um+L/200
Camera :
Japanese CCD
Len :
NAV HD magnification lens
Description

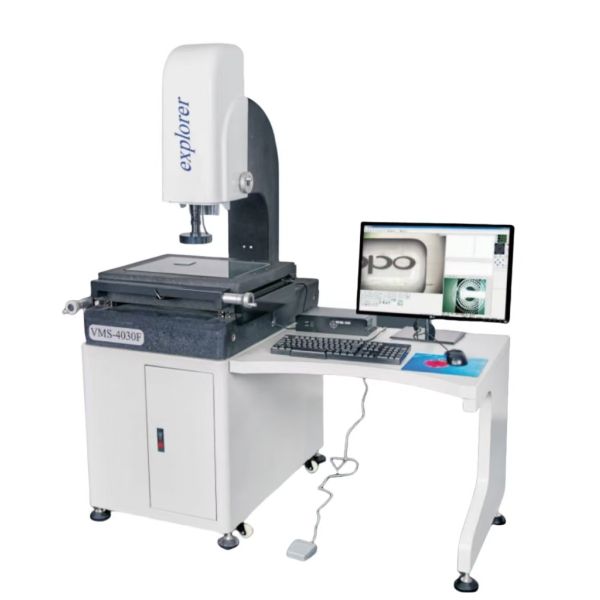

Dimensional Measuring Instrument Manual Image Measuring Instrument Video Measuring System VMS

Brand: HBYIQI

VMS Description:

A high configuration measuring equipment with the most competitive price, based on two-dimensional coordinate measurement, it can measure points, lines, circles, arcs, rectangles and other geometric elements and parts of the length, angle, contour shape, surface shape, etc. Also, it also can be three-dimensional auxiliary measurement, such as measuring the height of the steps, hole depth, surface flatness, and so on. This manual image measuring instrument are widely used in machinery, electronics, instrument, plastics, hardware and other industries.

Techinical Parameter:

Model

 HB-VMS-2010F HB-VMS-3020F HB-VMS-4030F HB-VMS-5040F
Work Table X/Y axis travel(mm) 200*100 300*200 400*300 500*400
Z axis travel(mm) Effective space is 245mm,focusing stroke is 200mm,and working distance is 95mm.
Mental table dimension(mm) 350*220 450*350 550*450 700*600
Glass table dimension(mm) 230*130 330*230 430*330 530*430
Drive type XN axis rod drive, Z axi optical axi drive
Measuring Servo Drive System Optical scale resolution:X/Y axis 0.0005mm(0.5um)
Measuring accuracy:≤3um+L/200; Repeatability accuracy:≤3um+L/200
Versatile data processor can measures points,lines,loops,circles,angles,etc
Image system Camera:Japanese Sony CCD; Video magnitication: 30-230X
Len:high definition zoom lens/Continuous magnification 0.7-4.5x
Options---0.5xobjecive lens,total magnification:15-115x
Options---2xobjective lens,total magnification:60-460x
Light system Surface light and projection light,cold light,long life,brightness adjustable
Machine external dimension(mm) 500*700*1100 600*750*1100 700*900*1150 850*1050*1200
Machine weight(kg) 170 260 300 500
Accessory Options

Contact measuring probe (height measurement, flatness measurement required);

Coaxial light (required for deep hole products);

Z-axis reading

Be the best measurinjg software for you!

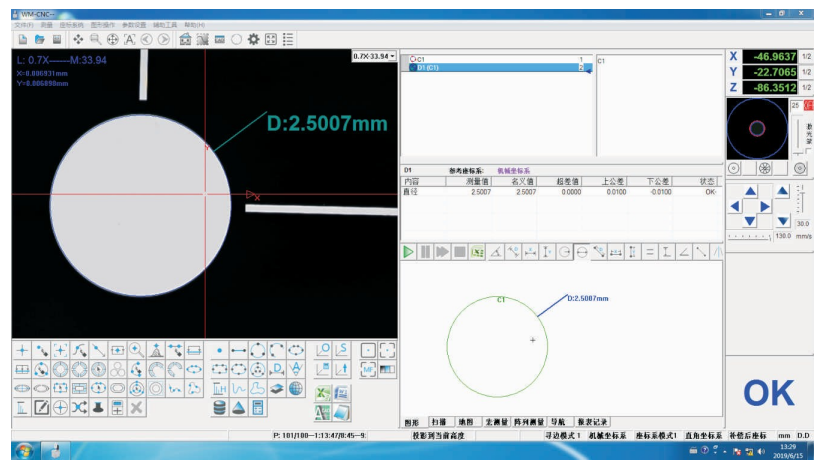

Automatic measuring software is a professional two-dimensional measuring software developed by the engineers with more than ten years of experience in measurement industry and software.The design principle is operate simply, powerful, stable and reliable, maintenance easily. The software is mainly draw lessons from well-known foreign software, such as the United States OGP MeasureMindPlus multi sensor measuring software, and the MicroVu company’s software in the United States; And it combines with the domestic situation and learns widely from other advantages, carefully optimized combination, elaborately research and development. Here is the system picture:

High Configuration Dimensional Measuring Instrument Manual Image Measuring System

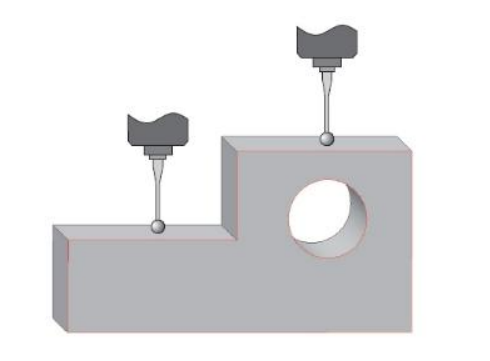

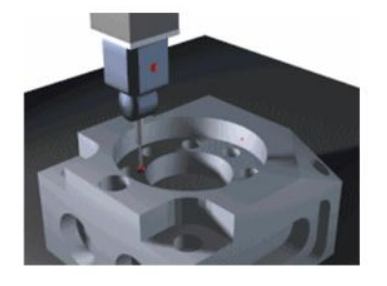

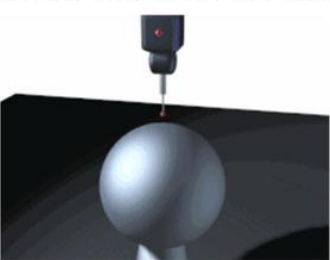

The Typical Probe Application:

High Configuration Dimensional Measuring Instrument Manual Image Measuring SystemHigh Configuration Dimensional Measuring Instrument Manual Image Measuring System

High Configuration Dimensional Measuring Instrument Manual Image Measuring SystemHigh Configuration Dimensional Measuring Instrument Manual Image Measuring System
