304 Steel UV Accelerated Aging Chamber Leaning Plate Type Accelerated Aging Test Machine

Specifications

Brand Name :

HBYIQI

Model Number :

HB-QUV-B

Certification :

IEO9001

Place of Origin :

China

MOQ :

1SET

Price :

Negotiated

Payment Terms :

T/T

Delivery Time :

15days

Packaging Details :

International Standard

Appearance :

Leaning Plate Type

Lamp Selection :

UVA-340 and UVB-313

Lamp Life :

Approx. 1500H

Radiation Intensity :

0.4-1.2W/m²/340nm

Illumination Temperature Range :

50°C-70°C

Condensation Temperature Range :

40°C-60°C

Blackboard Thermometer Measurement Range :

30°C-80°C

Test Modes :

Ultraviolet light, rain, condensation, darkness

Description

UV Aging Test Chamber QUV Ultraviolet Accelerated Aging Test Machine

Brand: HBYIQI

Equipment Name: QUV Ultraviolet Accelerated Aging Chamber (Leaning Plate Type)

Compliance with Relevant Standard Test Requirements or Equivalent Requirements:
Complies with the following tests in standards of GB, GJB, ISO, IEC, ANSI, ASME, ASTM, JIS, BS, DIN, NF, UNI, TNAI, AS, BDSI, CAS, CA, COSQC, S., CSA, CSK, CSN, DGN, DGNT, DS, ELOT, E.S., ESI, GS, ICONTEC, INAPI, INEN, IOS, IRAM, IR, ISIRI, ITINTEC, IS, JS.S, JUS, and standards of various countries:
Simulate sunlight UV ultraviolet rays, rain, condesation, aging tests.

Equipment Purpose:
Sunlight and moisture cause tens of millions of dollars of material damage every year. The types of hazards to products include: fading, discoloration, loss of gloss, chalking, cracking, turbidity, blistering, embrittlement, strength decline, and oxidation. The QUV ultraviolet accelerated aging test machine can conduct alternating ultraviolet light and moisture cycle aging tests on materials, reproducing the damage caused by sunlight, rain, and dew. In just a few days or weeks, the QUV ultraviolet tester can replicate the damage that occurs outdoors over months or years. It is an indispensable test equipment for research and development, production, and quality control.

Technical Parameters:

Model	HB-QUV-B
Inner Chamber Dimensions (cm)	W114×D50×H40
Outer Chamber Dimensions (cm)	W130×D70×H140
Lamp Selection	The luminous spectral energy of UVA-340 lamps is mainly concentrated at a wavelength of 340nm; The luminous spectrum of UVB-313 lamps is mainly concentrated at a wavelength of 313nm.
Lamp Life (Approximately)	≤1500 hours
Number of Lamps	8 special ultraviolet lamps, 40W/pcs
Radiation Intensity	0.4 - 1.2W/m²/340nm
Temperature Resolution	0.1°C
Illumination Temperature Range	50°C - 70°C / Temperature Tolerance: ±3°C
Condensation Temperature Range	40°C - 60°C / Temperature Tolerance: ±3°C
Blackboard Thermometer Measurement Range	30 - 80°C / Tolerance: ±1°C
Humidity Range	Approx 45% - 70%R.H (illumination state, non - adjustable) / Above 98% (condensation state, non - adjustable)
Water Tank	Water depth not greater than 25mm, with an automatic water supply controller
Standard Specimen Size	≤1000×400mm
Test Modes	Ultraviolet light, rain, condensation, darkness (can be set with fixed values or programmed for cycles)
Test Time	0 - 9999H (can be set)
Cycle Period	1 - 999 times (can be set)
Control System	QUV Program Control System
Language	Supports Chinese and English
Heating System	Uses nickel - chromium alloy electric heating wires
Protection Devices	Leakage protection, short - circuit protection, over - temperature protection, water shortage protection, and fault alarm system
Shelves	1 piece as standard (more can be selected as options)
Voltage (V)	AC 220V
Power (KW)	According to the design
Weight (kg)	To be confirmed before shipment

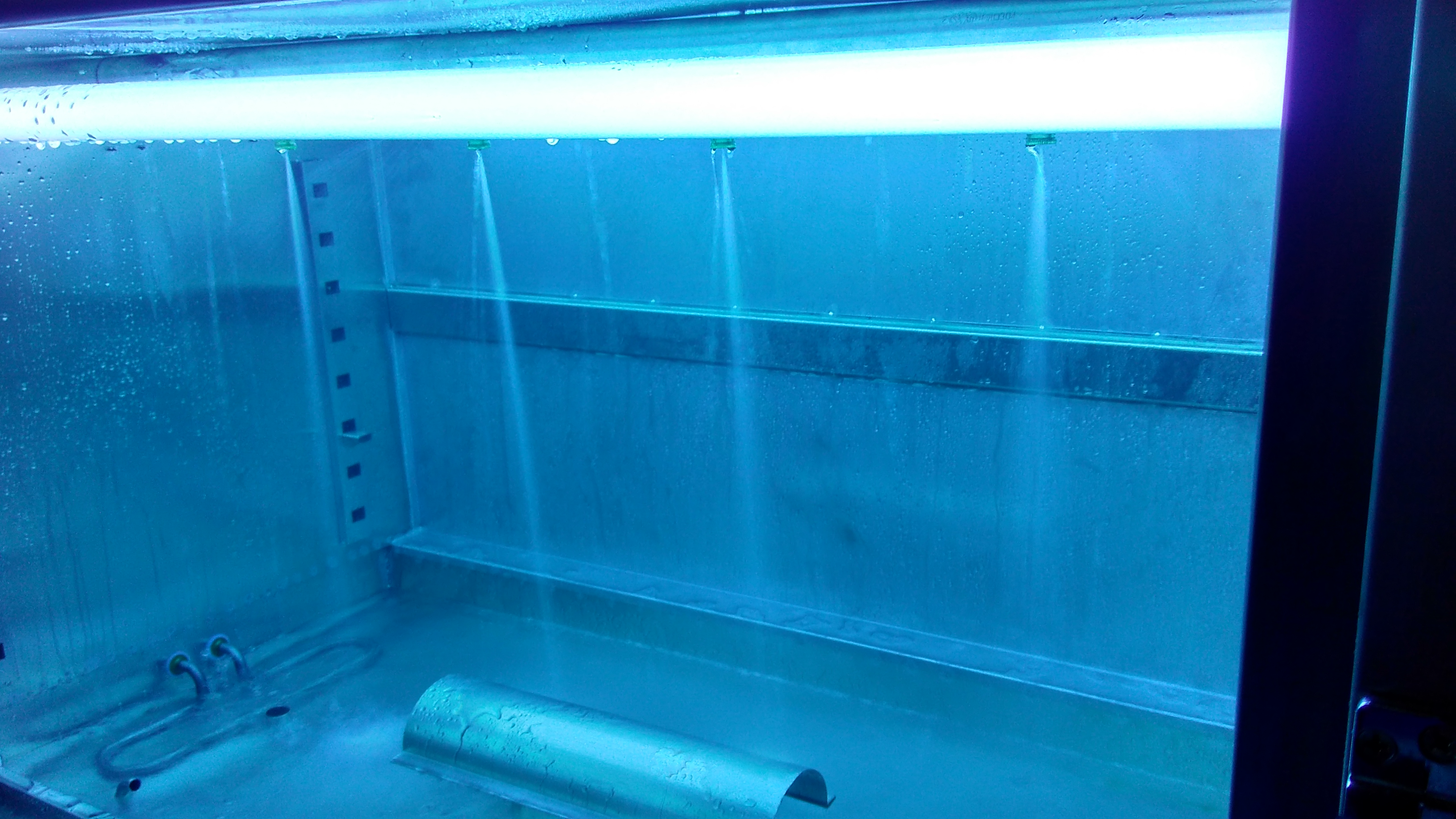

Equipment Detail

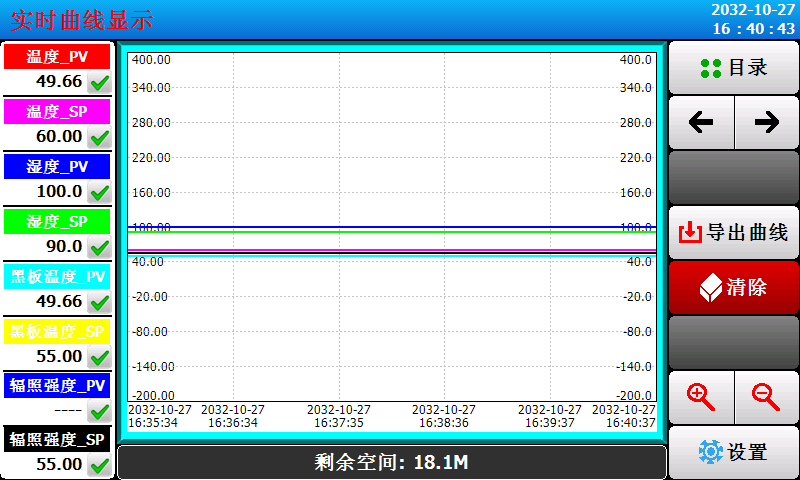

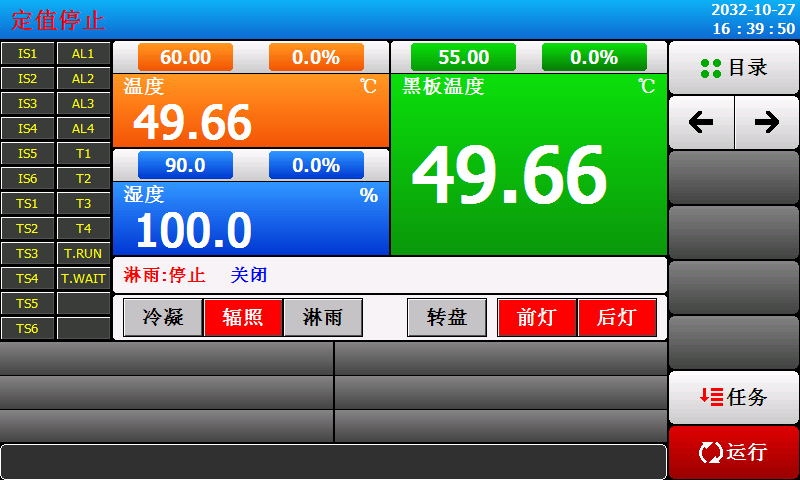

Test Main Interface
