Programmable Control 512L Climatic Test Cabinet Environmental Stability Chamber
Programmable Control 512L Climatic Test Cabinet Environmental Stability Chamber
Programmable Control 512L Climatic Test Cabinet Environmental Stability Chamber
Programmable Control 512L Climatic Test Cabinet Environmental Stability Chamber
Programmable Control 512L Climatic Test Cabinet Environmental Stability Chamber
Programmable Control 512L Climatic Test Cabinet Environmental Stability Chamber
Programmable Control 512L Climatic Test Cabinet Environmental Stability Chamber
Programmable Control 512L Climatic Test Cabinet Environmental Stability Chamber
Specifications
Brand Name :
HBYIQI
Model Number :
HB-A02-512L (A/B/C)
Certification :
ISO-9001
Place of Origin :
China
MOQ :
1SET
Price :
Negotiation
Payment Terms :
T/T
Delivery Time :
15 days
Packaging Details :
International Standard Package
Volume :
512L
Heating Rate :
≥3℃/min or Customization
Cooling Rate :
0.8-1.5℃/min or Customization
A Type Range :
-20℃~ 150℃ or Customization
B Type Range :
-40℃~ 150℃ or Customization
C Type Range :
-65℃~ 150℃ or Customization
Protection :
Multi-protection
Outer Size :
W130*D155*H190
Inner Chamber Size :
W80*D80*H80
Description

Environment Test Chamber 512L Climatic High And Low Temperature Cycle Programmable Control

Brand: HBYIQI

Equipment Name: 512L High And Low Temperature Cycle Test Machine

Relevant standards or equivalent requirements:

Complies with the following tests in national standards such as GB, GJB, ISO, IEC, ANSI, ASME, ASTM, JIS, BS, DIN, NF, UNI, TNAI, AS, BDSI, CAS, CA, COSQC, C.S., CSA, CSK, CSN, DGN, DGNT, DS, ELOT, E.S., ESI, GS, ICONTEC, INAPI, INEN, IOS, IRAM, IR, ISIRI, ITINTEC, IS, JS.S, JUS:

  • High - temperature test
  • Low - temperature test
  • High and low temperature cycle test
  • Cold test
  • Dry heat test

Application:

The high and low temperature cycle test chamber (also known as high and low temperature cycle test box, programmable high and low temperature cycle box, high and low temperature cycle temperature control device, etc.) is mainly used to test the endurance of products, materials, etc. in a continuous high and low temperature environment after cyclic testing, so as to test the chemical changes and physical damage caused by thermal expansion and contraction. This equipment is suitable for products such as batteries, electrical and electronic products, automotive machinery and electronics, aerospace, information and communication, national defense technology, and energy materials.

Technical Parameter

Model HB-A02-512L (A/B/C)
Volume 512L
Inner Chamber Dimensions (cm) W80*D80*H80
Outer Chamber Dimensions (cm)

W130*D155*H190
Temperature Range

Type A: -20°C ~ 150°C

Type B: -40°C ~ 150°C

Type C: -65°C ~ 150°C
Temperature Resolution 0.01°C
Temperature Fluctuation ±0.5°C
Temperature Uniformity ±2°C
Heating Rate

(≥3°C/min non - linear control, no load)

(Fast temperature change rate can be customized)
Cooling Rate

(0.8 - 1.5°C/min non - linear control, no load)

(Fast temperature change rate can be customized)
Control System PLC balanced temperature control programmable control system
Language Supports Chinese and English
Refrigeration System Adopts French "Tecumseh" compressors and well - known refrigeration system accessories
Heating System Adopts nickel - chromium alloy electric heating wires
Protection Devices Leakage protection, short - circuit protection, over - temperature protection, phase - loss protection, compressor overload and over - heat protection, fault alarm system.
Shelves 2 pieces are standard (more can be selected as accessories)
Wiring Hole Ø50mm/1 piece
Voltage (V) AC 380V
Power (KW) 9-12KW
Weight (kg) To be confirmed before shipment

Detail Screen Display

  • Control System Interface
  • Programmable Control 512L Climatic Test Cabinet Environmental Stability Chamber

​

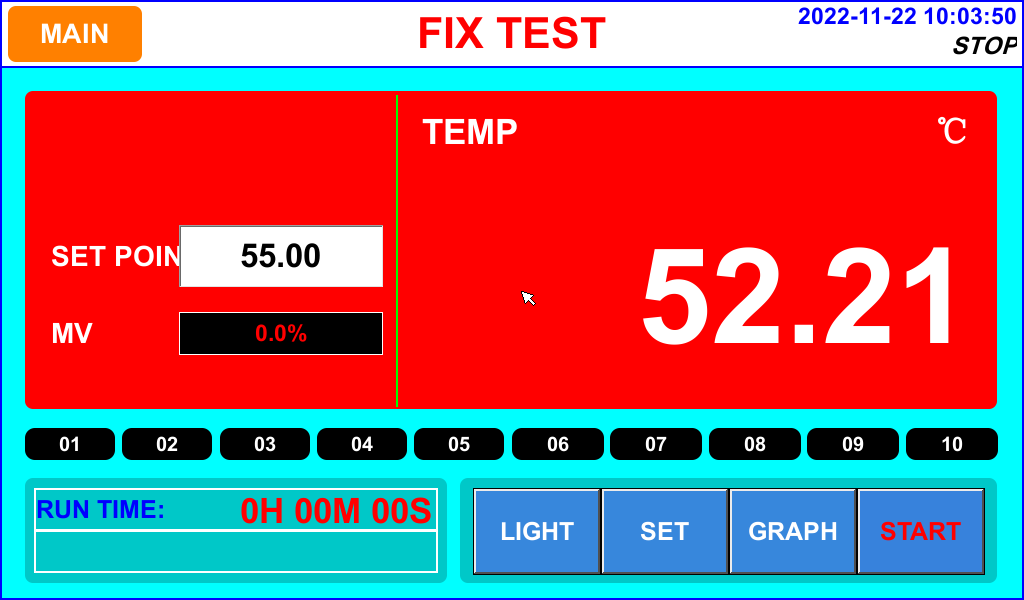

  • Fixed Value Experiment
  • Programmable Control 512L Climatic Test Cabinet Environmental Stability Chamber

​

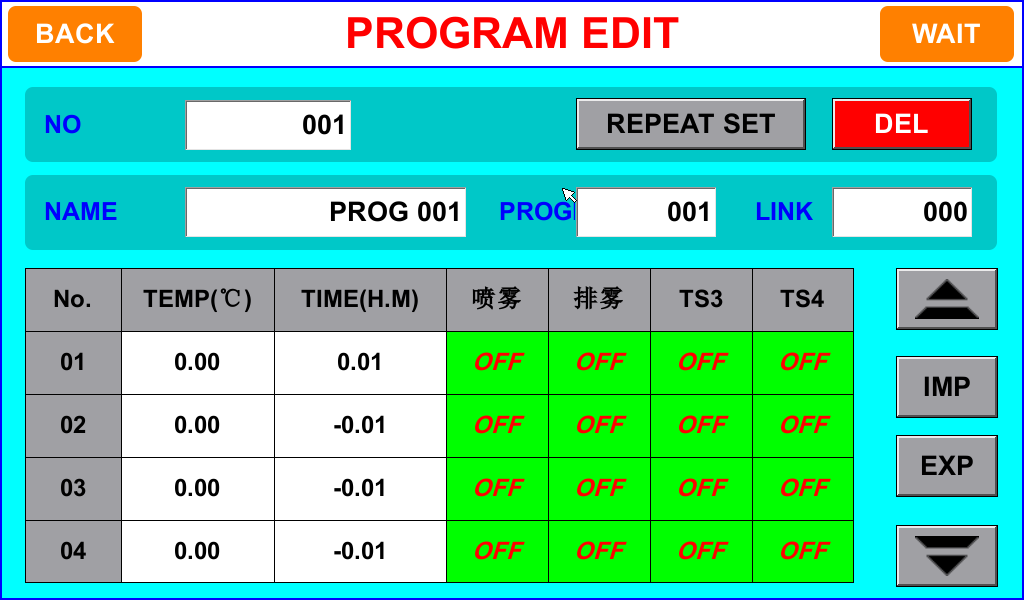

  • Program Experiment
  • Programmable Control 512L Climatic Test Cabinet Environmental Stability Chamber

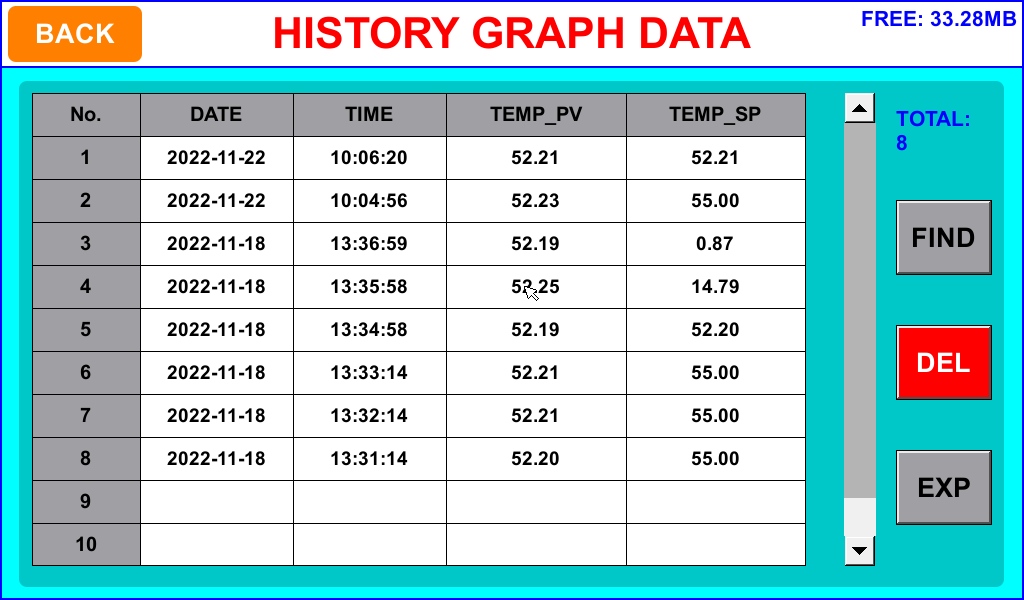

  • Data Record
  • Programmable Control 512L Climatic Test Cabinet Environmental Stability Chamber
