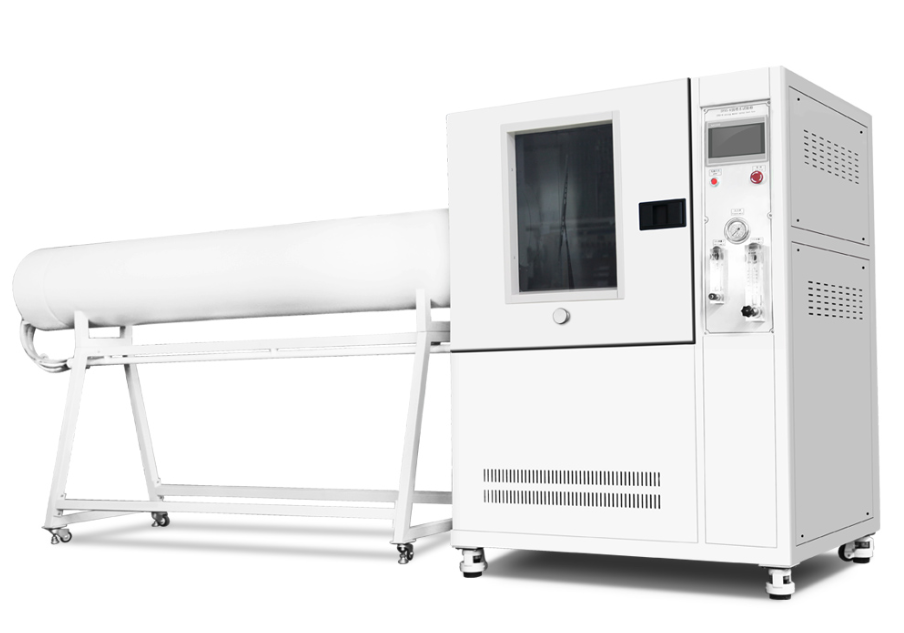

IPX5-6 Swinging Recirculating Water Spray Testing Cabinet 2.7m 50kg 600mm
IPX5-6 Swinging Recirculating Water Spray Testing Cabinet 2.7m 50kg 600mm
IPX5-6 Swinging Recirculating Water Spray Testing Cabinet 2.7m 50kg 600mm
IPX5-6 Swinging Recirculating Water Spray Testing Cabinet 2.7m 50kg 600mm
IPX5-6 Swinging Recirculating Water Spray Testing Cabinet 2.7m 50kg 600mm
IPX5-6 Swinging Recirculating Water Spray Testing Cabinet 2.7m 50kg 600mm
Specifications
Brand Name :
HBYIQI
Model Number :
HB-FS-IPX5-6-C
Certification :
ISO-9001
Place of Origin :
China
MOQ :
1SET
Price :
Negotiation
Payment Terms :
T/T
Delivery Time :
15days
Packaging Details :
International Standard Package
Sample Turntable Diameter :
￠600mm
Turntable Load Bearing :
50kg
Spray Distance :
2.7m
Spray Hole Diameter :
6.3mm/12.5mm
Spray Flow Rate :
12.5±0.625/100±5（L/min
Power Supply :
380V 50Hz
Spray Mode :
Swinging spray
Description

Waterproof Machine Simulated Rain Test Chamber

Brand: HBYIQI

Equipment Name: IPX5-6K Swinging Water Spray Testing Cabinet

Standard Basis:

  • IEC 60529:2001 "Degrees of protection provided by enclosures(IP Code)"
  • GB4208-2017 "Enclosure Protection Grade (IP Code)"
  • GB7000.1 "Luminaires - Part 1: General requirements and tests"

Appliance:

  • The equipment is suitable for IPX5 and IPX6 waterproof level testing of products.
  • The main function is to test the physical and other related performance under simulated rainy weather conditions for electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their parts. After the test, it verifies whether the performance of the product meets the requirements and better to design, improvement, verification and inspection of the product.​
Waterproof Grade of the Equipment Enclosure (IP Code)
Grade Brief Description Definition
IPX0 No Protection /
IPX1 Protection Against Vertically Falling Water Drops Vertically falling water drops have no harmful effects on the equipment enclosure.
IPX2 Protection Against Vertically Falling Water Drops When the Enclosure is Tilted Up by 15° When the enclosure is tilted up by 15° from any side, vertically falling water drops will have no harmful effects.
IPX3 Protection Against Spraying Water at ±60° Spraying water, when inclined from the vertical direction to any side up to ±60° and sprayed onto the enclosure, has no harmful effects.
IPX4 Protection Against Spraying Water from Any Direction Jet water sprayed onto the enclosure from any direction within ±180° has no harmful effects.
IPX5 Protection Against Water Jets Water jets from a water gun, when shot at the enclosure from any direction, have no harmful effects.
IPX6 Protection Against Strong Water Jets High - pressure water jets from a water gun, when shot at the enclosure from any direction, have no harmful effects.
IPX7 Protection Against the Effects of Temporary Immersion When the enclosure is temporarily immersed in water under standard pressure and time conditions, the amount of water ingress is unlikely to cause harmful effects.
IPX8 Protection Against the Effects of Continuous Immersion Under the conditions negotiated between the manufacturer and the user, which are more severe than those of characteristic number 7, when the enclosure is continuously immersed in water, the amount of water ingress will be unlikely to cause harmful effects.
IPX9K Protection Against High - Temperature and High - Pressure Water Jets

Four nozzles are distributed at angles (0°, 30°, 60°, 90°) as per the standard drawing. The water temperature for flushing can reach up to 80°C ± 5°C.

Technical parameters:

Model: HB - FS - IPX5 - 6 - C
Applicable to conduct waterproof level tests for product IPX5 and IPX6
External Dimensions of the Equipment L4040 * D1220 * H1820mm (including water pipes)

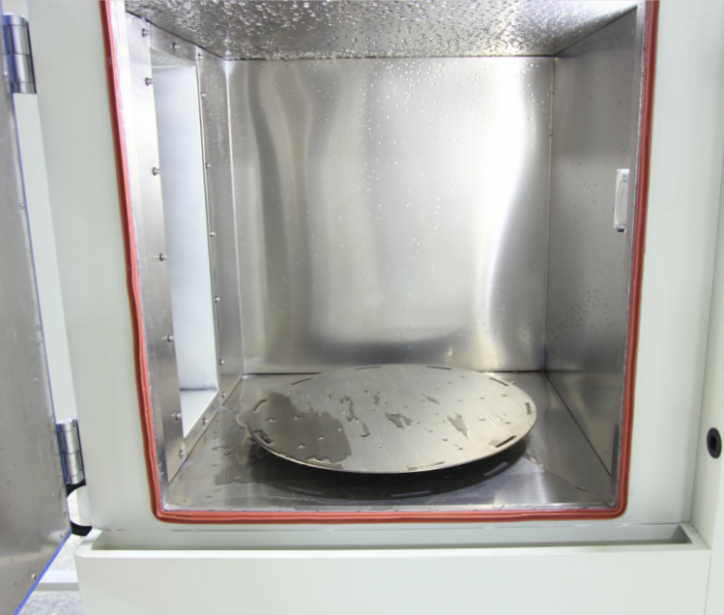

Inner Chamber Dimensions L1000 * D1000 * H1000mm
Sample Turntable Dimensions 600mm
IPX5 Water - spraying Hole Diameter 6.3mm
IPX6 Water - spraying Hole Diameter 12.5mm
IPX5 Water - spraying Flow Rate 12.5±0.625(L/min)
IPX6 Water - spraying Flow Rate 100±5(L/min)
Flow Control Method Manual adjustment (rotameter)
Water - spraying Distance 2.7 meters (distance from the nozzle to the center of the turntable)
Gun Fixing Method Mechanically fixed (programmable settings to adjust the spray gun angle)
Maximum Turntable Load-bearing Capacity 50KG
Turntable Lifting Range Non - liftable (Fixed)
Water - spraying Method Recirculating water spraying
Control System (Touch - type) 7 - inch touch screen + PLC
Equipment Power Supply 380V, 50Hz
Test Sample Power Supply 220V, 50Hz
Equipment Power 3.0KW
Safety Protection Functions Leakage protection, water - shortage protection, short - circuit protection

​

Detail Show:

IPX5 and IPX6

IPX5-6 Swinging Recirculating Water Spray Testing Cabinet 2.7m 50kg 600mm

IPX5-6 Swinging Recirculating Water Spray Testing Cabinet 2.7m 50kg 600mm
