Specifications
Brand Name :
HBYIQI
Model Number :
B-E04-Z-500
Certification :
ISO-9001
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T
Delivery Time :
15 Days
Packaging Details :
Internatinal Standard Package
Power Supply :
220/50±5%
Product Bearing :
50KG
Table Size :
W500×D500
Exciting Vibration :
Electromagnetic Mode
Description

Vibration Impact Testing Machine

Brand: HBYIQI

Appliance: The main function of this equipment is to test the reliable performance of the vibration of the product under physical conditions. After the test, through the verification to determine whether the performance of the product meets the requirements, you can better to improve the design, verification and inspection of the product. It could be used in the following industry:

  • Auto parts vibration
  • Electronic digital products vibration
  • Vibration of household appliances
  • Power tools vibration
  • Battery vibration
  • ...

Technical Parameter:

Model B-E04-Z-500 B-E04-Z-750 B-E04-Z-1000 Customization Acceptable
  • Frequency Range(Hz)
 5～500 Negotiable
Product Bearing(Kg) 50 50 100 Negotiable
Accuracy 1 Hz Negotiable
Maximum Acceleration 20g(Note: changes with frequency, not constant) Negotiable
Control Mode Industrial Touch Screen Negotiable
Amplitude(mm) 0-5mm(Note: changes with frequency, not constant) Negotiable
Exciting Vibration Electromagnetic Mode Negotiable
  • Amplitude Mode
 Electronic Amplitude Modulation Negotiable
Vibration Direction (optional) Z X+Z X+Z+Y Negotiable
  • Vibration Waveform
 Sine Wave

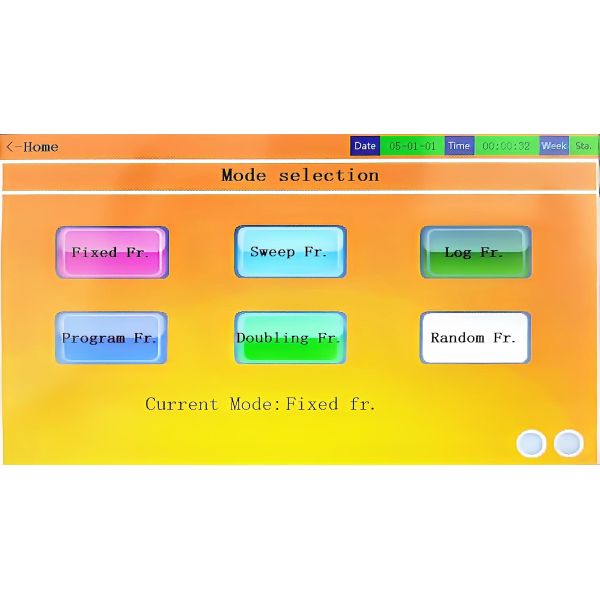

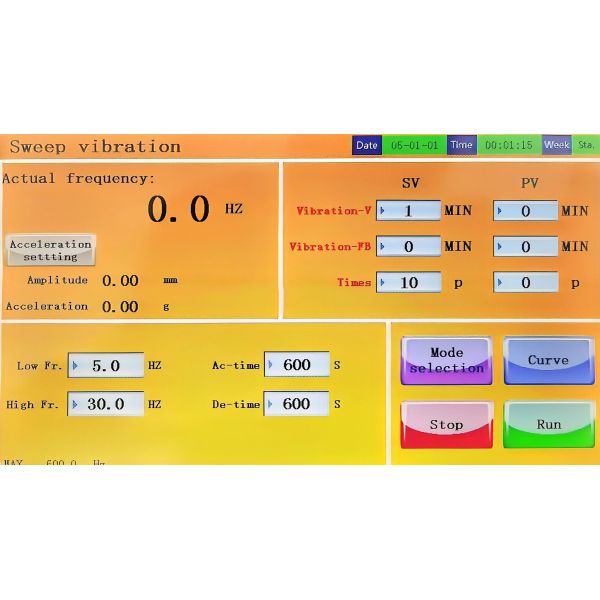

Test Mode Fixed frequency, Sweep frequency, Program, Logarithm
Time Range 0-9999H/M/S Setting freely
Cycles 0-9999 Setting freely
Table Size(mm) W500×D500 W750×D750 W1000×D1000 Negotiable
Supply Power(V/Hz) 220/50±5%
Power Consumption(KVA) 5.5 7.5 9.5 /
Cooling Type Air Cooling
Optional Accessories PC monitoring software, computers and printers, customized tooling
Standard Configuration

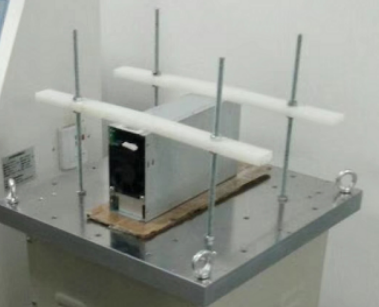

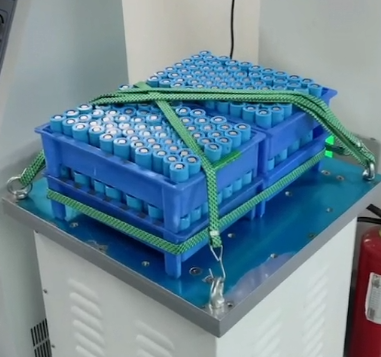

Test Fixtures 4 special rings, 2 telescopic straps (fixture can be customized according to customer requirements)
Tools Comes with a set of tools
Documents Testing machine manual, factory verification certificate, warranty certificate

Detail Show:

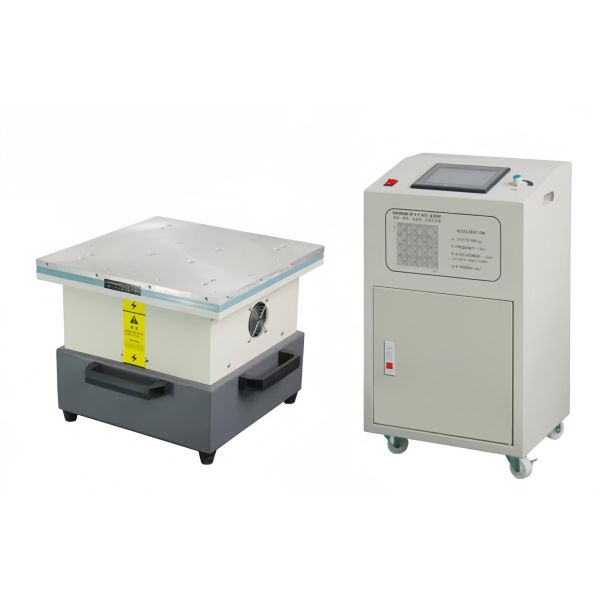

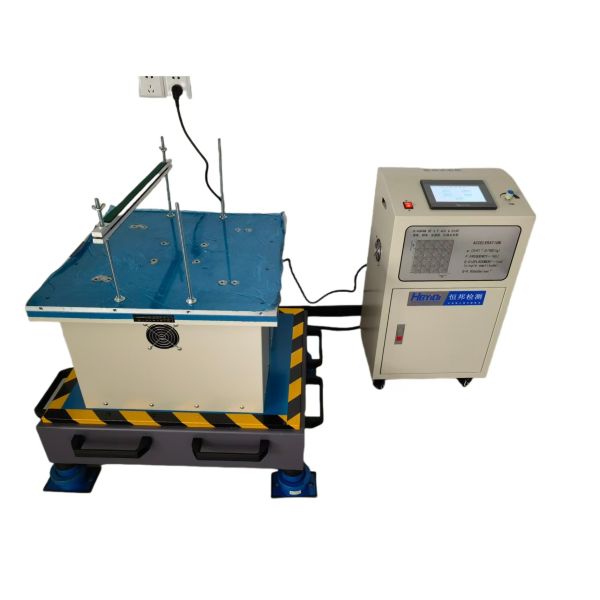

1.Test System

Electromagnetic Vibration Impact Testing Machine Simulation Vibration Tester Shaker Table

Electromagnetic Vibration Impact Testing Machine Simulation Vibration Tester Shaker Table

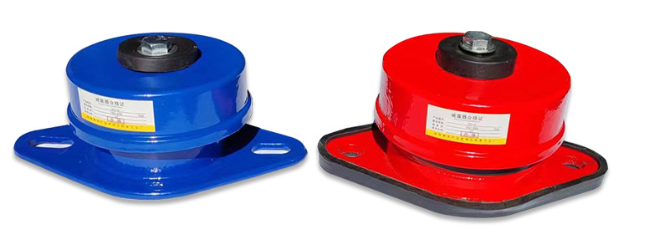

2.shock absorbers

Electromagnetic Vibration Impact Testing Machine Simulation Vibration Tester Shaker Table

3.Case

Electromagnetic Vibration Impact Testing Machine Simulation Vibration Tester Shaker Table

Electromagnetic Vibration Impact Testing Machine Simulation Vibration Tester Shaker Table
