Specifications
Brand Name :
HBYIQI
Model Number :
HB-VID-1000L (A\B\C)
Certification :
ISO9001
Place of Origin :
China
MOQ :
1SET
Price :
Negotiated
Payment Terms :
T/T
Delivery Time :
15days
Packaging Details :
International Standard
Volume :
1000L
Temperature Range :
-70 to +150°C
Humidity Range :
20% - 98%RH
Vibration Range :
3-3000Hz
Heating/Cooling Rate :
Approx. 3°C/min-15°C/min
Protection :
Multi-protection Mode
Description

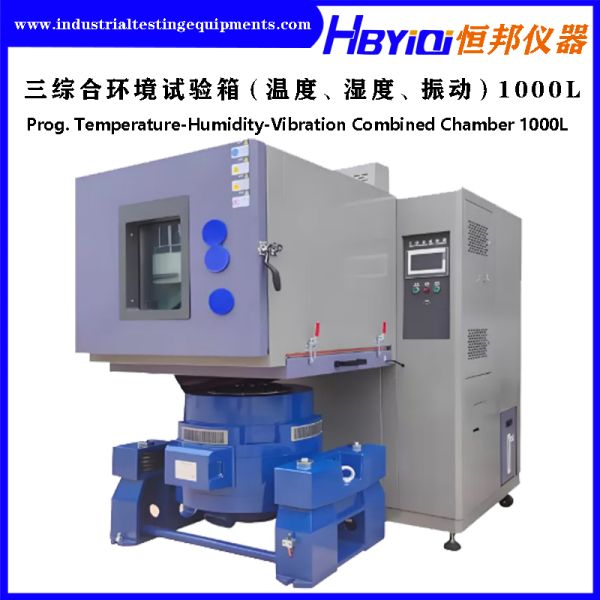

Temperature Humidity Vibration Combined Test Chamber 1000L for Electronic Material Automotive Parts

Brand: HBYIQI


Equipment Name: Three-in-One Environmental Test Chamber (Temperature, Humidity, Vibration)


Compliance with Relevant Standard Test Requirements or Equivalent Requirements:
Complies with the following tests in national standards such as GB, GJB, ISO, IEC, ANSI, ASME, ASTM, JIS, BS, DIN, NF, UNI, TNAI, AS, BDSI, CAS, CA, COSQC, S., CSA, CSK, CSN, DGN, DGNT, DS, ELOT, E.S., ESI, GS, ICONTEC, INAPI, INEN, IOS, IRAM, IR, ISIRI, ITINTEC, IS, JS.S, JUS:

  • High-temperature Test
  • Low-temperature Test
  • High-low Temperature Cycling Test
  • Cold Test
  • Dry Heat Test
  • Wet Heat Test
  • Alternating Damp Heat Test
  • Vibration Test

Equipment Purpose:
The (Temperature-Humidity-Vibration) three-in-one test chamber is applicable for conducting high-low temperature, alternating damp heat tests on products (complete machines), components, and materials. When connected to a vibration table, it can realize multi-combined environmental stress screening tests of temperature, humidity, and vibration.


Technical Parameters:

Model HB-VID-1000L (A/B/C)
Workshop Volume (L/m²) Workshop Volume (L/m²) 1000L
Performance Temperature Range A: -20 - +150°C (+180°C)
B: -40 - +150°C (+180°C)
C: -70 - +150°C (+180°C)
Temperature Uniformity 2.0°C
Temperature Fluctuation ±0.5°C
Temperature Deviation ±2.0°C
Humidity Range 20% - 98%RH
Humidity Uniformity ±3.0%RH (no load)
Humidity Fluctuation ±2.0%RH
Humidity Deviation ±3.0%RH (>75%RH), ±5.0%RH (≤75%RH)
Heating and Cooling Rate (Full Course Average) Approx. 3°C/min - 15°C/min (no load)
Inner Box Dimensions (mm) Width W 1000
Height H 1000
Depth D 1000
Outer Box Dimensions (mm) Width W 900
Height H 1663
Depth D 1470
Vibration Table Device Length L 600
Width W 600
Diameter φ 600
Frequency Range 3- 3000Hz
Maximum Acceleration 1200m/s²
Maximum Displacement 50mmp-P / 76mmp-P / 100mmp-P
Cooling Method Air cooling or water cooling
Outer Box Material High-quality cold-rolled steel plate with electrostatic powder baking finish on the surface
Inner Box Material SUS304 stainless steel plate, with the inner tank integrally fully welded
Insulation Layer Rigid polyurethane foam insulation layer, thickness = 100mm, flame retardant grade B2
Observation Window Multi-layer vacuum glass window with an electronic anti-fog film for heating and anti-sweating, preventing condensation
Noise ≤65dB
Refrigerant Environment-friendly refrigerant R404A/R23
Control Method Balanced Temperature Control System (BTHC) + PID
Control System 7-inch color touch screen controller in Chinese and English
Control Panel Temperature (Humidity) control touch display screen, start switch, buzzer
Chamber Standard Configuration

1. Lead wire hole (silicone plug),

2. Sample holder
Network Connection

Can be connected to the Ethernet through professional software.

Remote control and remote assistance can be carried out via the network. Test data can also be collected through the network, and multiple machines can be controlled simultaneously.
Operating Environment

1. Ambient temperature: 5°C - 35°C.

2. Atmospheric pressure: 80kPa - 106kPa.

3. Flat and vibration-free ground.

4. Well-ventilated area, without direct sunlight or direct radiation from other heat sources.
Power Supply 380V AC (±10%) 50Hz±0.5, three-phase four-wire
Protection Devices
  • Heater dry-burning prevention protection switch
  • Heater overcurrent circuit breaker
  • Circulating fan overcurrent overload protection
  • Compressor high-pressure protection switch
  • Compressor overheat protection switch
  • Overvoltage, under-voltage, and reverse-phase protection switch
  • Line circuit breaker
  • Leakage switch
  • Zero-crossing thyristor power controller water shortage protection

Equipment Detail

Main Interface

Three In One Temperature Humidity Vibration Test Chamber 1000L Volume

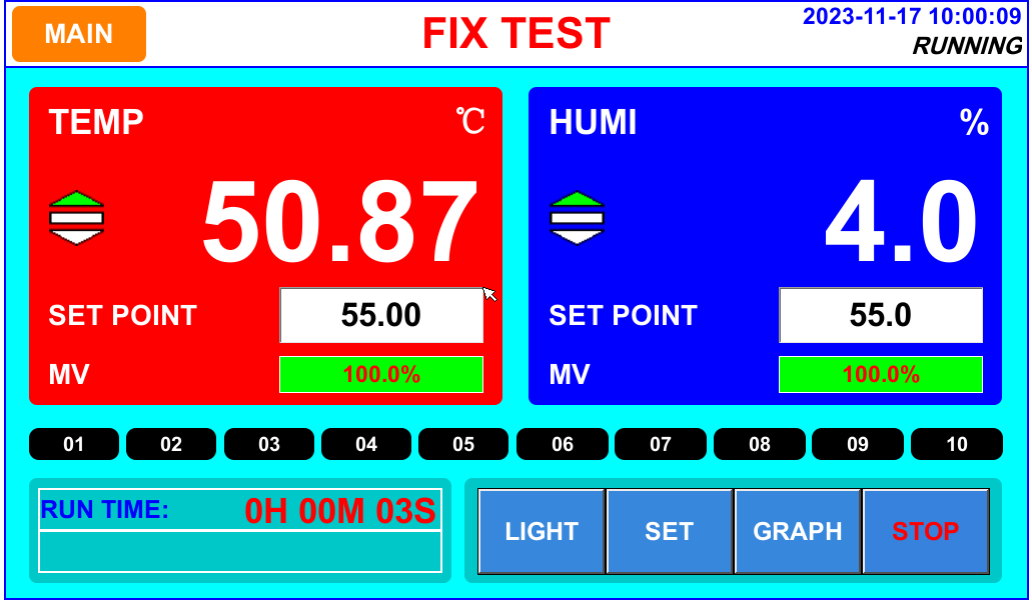

Setting Test

Three In One Temperature Humidity Vibration Test Chamber 1000L Volume

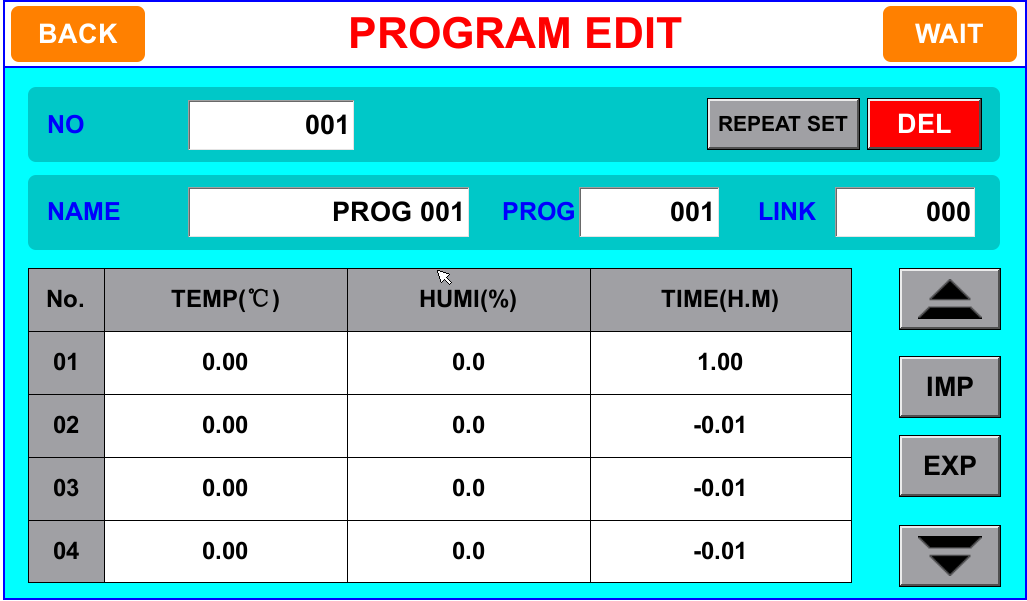

Program Test

Three In One Temperature Humidity Vibration Test Chamber 1000L Volume

Three In One Temperature Humidity Vibration Test Chamber 1000L Volume

Three In One Temperature Humidity Vibration Test Chamber 1000L Volume
