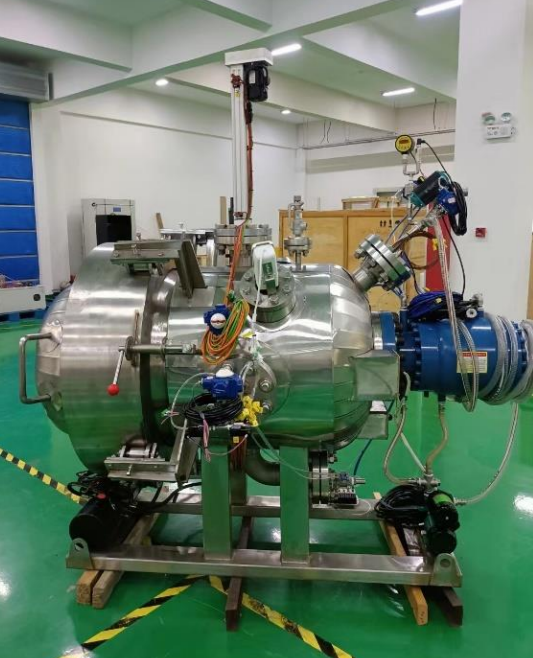

UL9540A Battery Safety Testing Equipment Battery Thermal Runaway Gas Collection Device
UL9540A Battery Safety Testing Equipment Battery Thermal Runaway Gas Collection Device
UL9540A Battery Safety Testing Equipment Battery Thermal Runaway Gas Collection Device
UL9540A Battery Safety Testing Equipment Battery Thermal Runaway Gas Collection Device
UL9540A Battery Safety Testing Equipment Battery Thermal Runaway Gas Collection Device
UL9540A Battery Safety Testing Equipment Battery Thermal Runaway Gas Collection Device
Specifications
Brand Name :
HBYIQI
Model Number :
HB-DC11-UL9540A
Certification :
CE, ISO-9001
Place of Origin :
China
MOQ :
1SET
Price :
Negotiation
Payment Terms :
T/T
Delivery Time :
15 days
Packaging Details :
International Standard Package
Max overcharge voltage :
10V
Control mode :
PLC+PC
Max acupuncture force :
10KN
Test standard :
ANSI/UL 9540A-2019
Heating power :
Single channel 0-300W
Trigger mode :
Electric heating, overcharge, acupuncture
Description

Battery Safety Testing Equipment UL9540A Battery Thermal Runaway Gas Collection Device


Brand: HBYIQI

Equipment name: Battery thermal runaway tester(Gas collection)

Standard Basis:
UL 9540A Test method for evaluating thermal runaway fire propagation in battery energy storage systems

Appliance: Different triggering methods are used to cause the thermal runaway of the single cell, so as to collect the gas generated by the thermal runaway of the lithium battery and analyze the composition of the gas.

Technical Parameter:

Model

HB-DC11-UL9540A

Control mode

PLC+PC

Test space

Customization

Trigger mode

Electric heating, overcharge, acupuncture;

These three modes are available.

Number of heating mode channels

2 channels

Heating power

Single channel 0-300W

Number of channels in overcharge mode

2 channels

Maximum overcharge voltage

10V

Maximum acupuncture force

5KN

Needling speed

1-5mm/s adjustable

Vacuum pump

1Set

Temperature data collection

Channel 4

Voltage acquisition

Channel 2

Pressure acquisition

Channel 2

Testing software

Channel 1

PC/Displayer

1Set

UL9540A Battery Safety Testing Equipment Battery Thermal Runaway Gas Collection Device

Purchasing and consulting

We designate the experienced engineer and a foreign trade salesperson to answer your every question by multi-way of communication. We put a high value on your every requirement and will be honest and trustworthy, convenient and efficient mode to provide solutions and the most suitable equipment for you.

Service and maintenance

Our equipment maintenance experts are able to provide regular maintenance, repair and calibration of equipment systems to ensure that the system is always working at its best and strive to nip faults in the bud, thereby reducing maintenance costs and significantly extending the service life of measurement systems.

Upgrading and rebuilding

We will upgrade and rebuild the control system, software system and even the transmission system to make your equipment system under the best status, so that the technical advancement of the equipment has been greatly improved.

Installation and training

Before installation, please read the instruction manual; This manual introduces the detailed instruction of how to use the machine and all software functions. We also support training video to better solve your problems on time.
