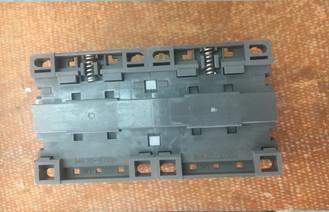

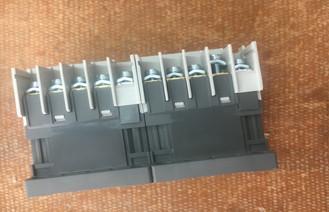

Mini Type Air Compressor AC Contactor Electrically Controlled Switch
Mini Type Air Compressor AC Contactor Electrically Controlled Switch
Mini Type Air Compressor AC Contactor Electrically Controlled Switch
Mini Type Air Compressor AC Contactor Electrically Controlled Switch
Mini Type Air Compressor AC Contactor Electrically Controlled Switch
Mini Type Air Compressor AC Contactor Electrically Controlled Switch
Mini Type Air Compressor AC Contactor Electrically Controlled Switch
Mini Type Air Compressor AC Contactor Electrically Controlled Switch
Specifications
Brand Name :
KRIPAL
Model Number :
UKC1-9MR
Certification :
CE, UL
Place of Origin :
China
MOQ :
100pcs
Price :
negotiable
Payment Terms :
T/T, L/C
Supply Ability :
50000 pcs per month
Delivery Time :
20 days and depends on ordering quantity
Packaging Details :
Each unit packed in a individual box
Brand :
KRIPAL
Current Range :
6A 9A 12A 16A
Poles :
3P
Auxiliary :
1NO+1NC
AC1 Ith :
20A
Charactor :
Mechanical interlock
Coil voltage :
AC or DC
Description

9 Amp reversing contactors of mini type Air Compressor AC Contactor Electrically Controlled Switch

A Contactor is an electrically controlled switch used for switching a power circuit, similar to a relay except with higher current ratings, which is controlled by a circuit which has a much lower power level than the switched circuit.

Description:

For motor control

Mechanical interlock

Coil voltage:AC or DC

Benefits for mini AC contactors:

Low consumption power

Saving panel size

Installation space is reduced to 50% of conventional DC operated contactors achieving high performance.

Specifications:

AC coil:
Rated current AC3(IEC60947 AC1 Ith Aux. Contacts Type
220-240V 380-440V 550-550V 690V
6A 1.5KW 7A 2.2KW 6A 3KW 5A 3KW 4A 20A 1NO or 1NC UKC1-6MR
9A 2.2KW 9A 4KW 9A 3.7KW 6A 4KW 5A 20A 1NO or 1NC UKC1-9MR
12A 3KW 12A 5.5KW 12A 4KW 7A 4KW 5A 20A 1NO or 1NC UKC1-12MR
16A 4KW 15A 7.5KW 16A 5.5KW 9A 4KW 5A 20A 1NO or 1NC UKC1-16MR

AC coil Voltage (50/60Hz): 24, 36, 42, 48, 110, 115, 120, 127, 220/208, 220, 220/230, 230/240, 256, 277, 380/400, 400, 440, 480, 500, 550 V AC
DC coil:
Rated current AC3(IEC60947 AC1 Ith Aux. Contacts Type
220-240V 380-440V 550-550V 690V
6A 1.5KW 7A 2.2KW 6A 3KW 5A 3KW 4A 20A 1NO or 1NC UKD1-6MR
9A 2.2KW 9A 4KW 9A 3.7KW 6A 4KW 5A 20A 1NO or 1NC UKD1-9MR
12A 3KW 12A 5.5KW 12A 4KW 7A 4KW 5A 20A 1NO or 1NC UKD1-12MR
16A 4KW 15A 7.5KW 16A 5.5KW 9A 4KW 5A 20A 1NO or 1NC UKD1-16MR
Standard type:12,20,24,36,42,48,60,72,110,120,125,220,240,250,V DC
low-loss type:12,20,24,48,72,110,120 V DC (LOW)
Wide-voltage type:12,20,24,48,72,110,120V DC (WIDE)


Coil voltage(DC):

12V, 20V, 24V, 48V, 60V, 80V, 100V, 110V, 125V, 200V, 220V, 250V

Main application fields for dc mini contactors:

Lighting for out-door

Car washing facilities

Crain hoist

Lighting of sports facilities

Pump

Compressor

Vending machine

Painting machine

Show case

It is possible to expand the control wire length since voltage drop in wires is small.
