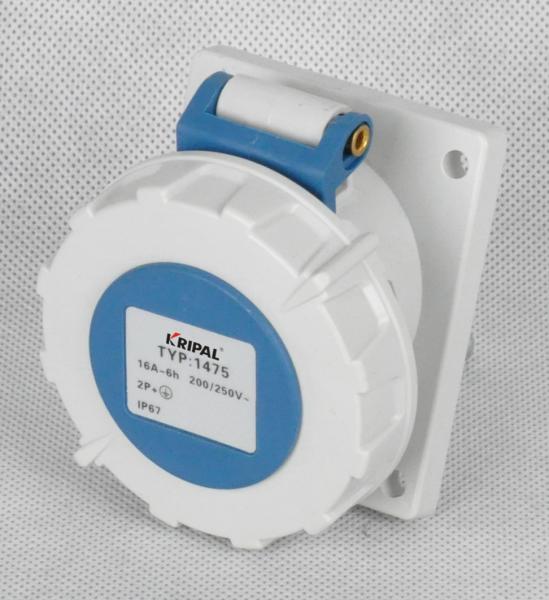

IP67 Panel Mounted Industrial Receptacle / Panel Mount Socket Copper Metal Material
IP67 Panel Mounted Industrial Receptacle / Panel Mount Socket Copper Metal Material
IP67 Panel Mounted Industrial Receptacle / Panel Mount Socket Copper Metal Material
IP67 Panel Mounted Industrial Receptacle / Panel Mount Socket Copper Metal Material
IP67 Panel Mounted Industrial Receptacle / Panel Mount Socket Copper Metal Material
IP67 Panel Mounted Industrial Receptacle / Panel Mount Socket Copper Metal Material
IP67 Panel Mounted Industrial Receptacle / Panel Mount Socket Copper Metal Material
IP67 Panel Mounted Industrial Receptacle / Panel Mount Socket Copper Metal Material
Specifications
Brand Name :
KRIPAL
Model Number :
UKS-Bseries
Certification :
CE.CCC
Place of Origin :
China
MOQ :
500pcs
Price :
negotiable
Payment Terms :
T/T, L/C
Supply Ability :
50000 pcs per month
Delivery Time :
20 days and depends on ordering quantity
Packaging Details :
Each unit packed in a individual box
Purpose :
Industrial
Ampere :
16A,32A,63A,125A
Voltage :
220V-250V, 380V-415V
Protection grade :
IP67
Plastic materials :
Nylon, Rubbber
Metal :
Copper
Installation :
inward tilt 20° or 15°
Description

Angled inward tilt 20° or 15° IP67 panel mounted Industrial Receptacles /Sockets 16A,32A,63A,125A 2P+E, 3P+E 3P+N+E



Description:

As per the relative standars and real needs of users,UKS series plug socket are developed with the features of high ingress protection,safety & reliability,amazing structure,easy wiring ,long life time and others.The main products are plug,connector,panel mounted plug socket,wall mounted plug socket,interlocked switch socket,low-voltage series,high-current series and refrigerated container series.For the better safety performance, the improvement are performed as follows:a.The inproved design of easy operation; b.Inner gasket protected by external cable grip; c.High heat-resistant materials of electric contact carriers; d. Ingress protection:IP44/IP67. On the basis of these,our products are wildly used in oil,chemical industry,melallurgy,power plants,coal mines,machinery,textile,ports,docks and other industries.

IP67 Panel Mounted Industrial Receptacle / Panel Mount Socket Copper Metal Material



UKS-Bseries IP67 are our Panel Mounted Socket,meet German industrial standard:DIN VDE 0623,European/International standard:EN/IEC60309-2.All external screws are made of stainless steel.


63A-6h 380/415V 3P+E IP67 INWARD TILT 20°​

IP67 Panel Mounted Industrial Receptacle / Panel Mount Socket Copper Metal Material

125A-6h 200/346V-240/415V 3P+N+E IP67 INWARD TILT 15°​

IP67 Panel Mounted Industrial Receptacle / Panel Mount Socket Copper Metal Material

*Pls indicate the color when place order, also your specification and quantity.


Specifications:

Product

Panel Mounted Socket

Rated current

16A,32A,63A,125A

No. of poles

2P+E, 3P+E 3P+N+E

Voltage

220V-250V; 380V-415V

Protection degree

IP67

Power type

Single Phase, Three Phase

Conductor cross-sectional area (mm2)

1.5-4(16A), 2.5-10(32A),6-25(63A)

Material

NYLON PA6, PC, copper

Color

RAL5017 (Blue); RAL3000 (Red); RAL7000 (Cyan); RAL9018 (White).

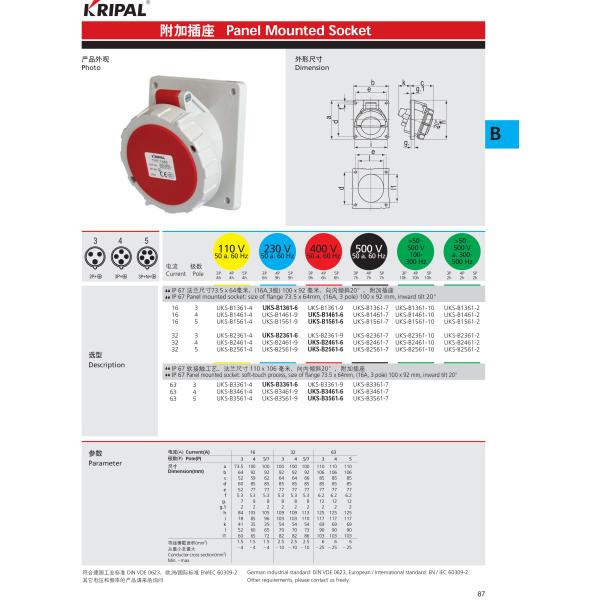

16A/32A/63A ANGLED INWARD TILT 20°​ CATALOGUE:

IP67 Panel Mounted Industrial Receptacle / Panel Mount Socket Copper Metal Material

125A ANGLED INWARD TILT 15°​ CATALOGUE

IP67 Panel Mounted Industrial Receptacle / Panel Mount Socket Copper Metal Material

*Pls indicate the color when place order, also your specification and quantity.
