Customzied Strong Warehouse Pallet Shelving Racks With Welded Galvanized Wire Mesh Decking
Customzied Strong Warehouse Pallet Shelving Racks With Welded Galvanized Wire Mesh Decking
Customzied Strong Warehouse Pallet Shelving Racks With Welded Galvanized Wire Mesh Decking
Customzied Strong Warehouse Pallet Shelving Racks With Welded Galvanized Wire Mesh Decking
Customzied Strong Warehouse Pallet Shelving Racks With Welded Galvanized Wire Mesh Decking
Customzied Strong Warehouse Pallet Shelving Racks With Welded Galvanized Wire Mesh Decking
Specifications
Model Number :
ZJ-HD20170519
Certification :
AS4084
MOQ :
10 Sets
Price :
Negotiation
Payment Terms :
T/T , L/C, Paypal
Supply Ability :
6000 Tons per Month
Delivery Time :
10-15 working days
Packaging Details :
Standard export seaworthy packing
Material :
Steel Q235/Q345, Steel Q235/245
Finish :
Corrosion Protection
Size :
Customzied
Structure :
Assembled
Type :
Wire mesh decking racks
Capacity :
Load up to 2 tons per level
Color :
Optional
Function :
For Storage
Description

Heavy Duty Storage Racks With Welded Galvanized Wire Mesh Decking

Features:

1. Material is steel Q235, high-quality steel

2. Max. load capacity: can be up to 1000kg UDL.

3. Galvanization or powder coating, antirust and corrosion resistant.

4. Used together with the pallet rack or long span shelving.

5. Can be put on the box beam, step beam or even Z beam.

6. Package way: wrapping film, wooden pallet or according to your requirements.


7. Warranty non-artificial damage (not including the force majeure) 3 years.

1. Standard size: 42" x 46",46" x 48", 32" x 46"
2. Customized sizes accepted: Yes
3. Wire diameter: 3/20 ", 1/5 ", 6/25 "
4. Mesh pitch: 1 "×1", 1"×4", 2"×2", 2"×4"

Product Description

Designed drawing

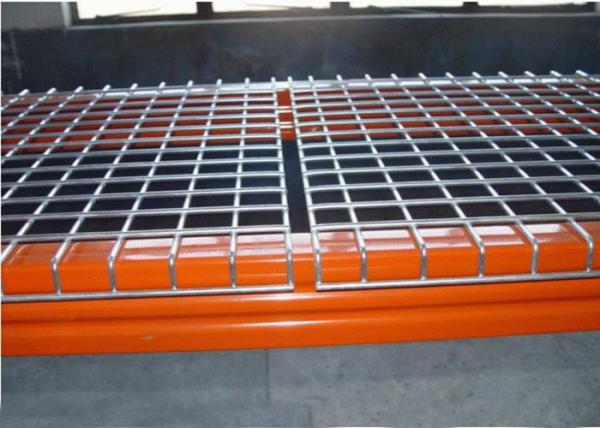

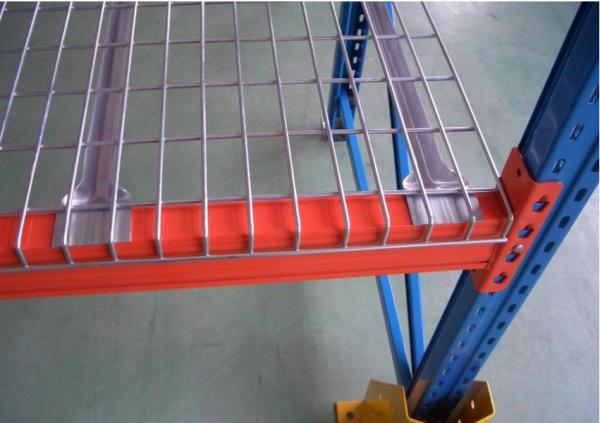

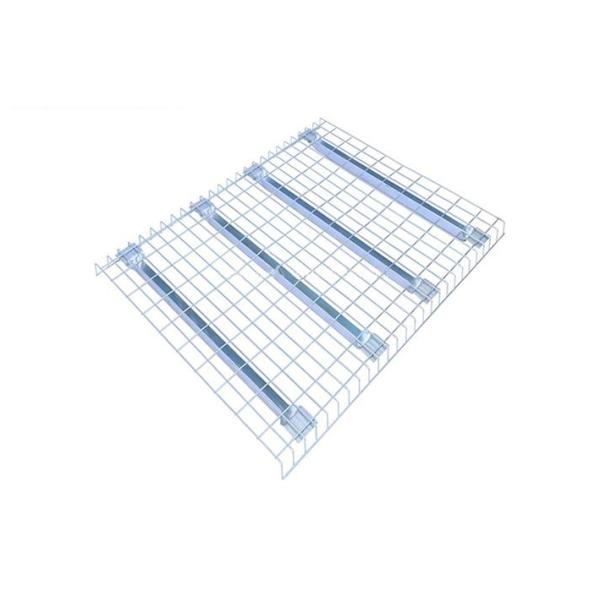

Strong welded wire mesh, with three welded support bars per sheet. Wire mesh decking are excellent for storing individual components, cartons or irregular loads. They are fire retardant and are ideally suited for overhead sprinkler systems. Mesh Decking/Shelving sits on the pallet racking beams and acts as a shelf. This offers an alternative to timber decking and solid steel panel solutions.

Mesh Shelving is ideal for use in ambient warehousing as well as chill stores and freezers as it allows the even distribution of air and thus temperature.

Quick Details:

Product Name Heavy Duty Storage Racks

Standard Specification

(Customized Available)

L2000*D600*H2000mm
Rack Levels 3 levels, 4 levels, 5 levels, 6 levels
Load Capacity per Level 1000KG, 2000KG
Raw Material high quality cold rolling steel Q235B(SS400) purchased from Shanghai Baosteel Group
Material Thickness 1.5mm, 1.8mm, 2.0mm, 2.5mm
Surface Treatment deoil, derusting and powder coat paint finish
Rack Colors standard blue, orange and customized available
HS Code 7308900000

Customzied Strong Warehouse Pallet Shelving Racks With Welded Galvanized Wire Mesh DeckingCustomzied Strong Warehouse Pallet Shelving Racks With Welded Galvanized Wire Mesh Decking
