STD 90 Degree Carbon Steel Pipe Fittings Elbow ASME B16.9
STD 90 Degree Carbon Steel Pipe Fittings Elbow ASME B16.9
STD 90 Degree Carbon Steel Pipe Fittings Elbow ASME B16.9
STD 90 Degree Carbon Steel Pipe Fittings Elbow ASME B16.9
Specifications
Brand Name :
Carbon steel elbow
Model Number :
LJ-PF497
Certification :
ISO9001
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
Annual output 50000 tons
Delivery Time :
Depends on the quantity of goods
Packaging Details :
Export standard packaging
Material :
Carbon Steel
Connection :
Welding
Size :
1/2''-72',1/2"-4 8"
Application :
Connect Pipes
Standard :
DIN,JIS,ANSI,ASME,GB
Thickness :
2mm-50mm
Description

ASME B16.9 A234 SCH 40 STD 90 Degree 1.5D Carbon steel elbow

Description

Carbon steel elbow is a pipe fitting connecting two pipes with different pipe diameters for steering. The production process is to cut a standard elbow blank into a V-shaped elbow, and then apply pressure. With the power of conventional or special stamping equipment, the elbow blank is directly subjected to deformation force and deformed in the die, so as to obtain an elbow with certain shape, size and performance.

Specification

Size: 1/2"-24" ,DN15-DN600
Standard: ASME,ANSI B16.9
Type: 30,45,60,90,180 degree
Material: ASTM A234WPB, A234WPC
Thickness: STD SCH40, XS, SCH80, XXS

Technical data sheet

ASME B16.9 A234 SCH 40 STD 90 Degree 1.5D Carbon steel elbow technical data sheet as below:

Nominal diameter outside diameter Dimension from center to end face Center to center dimension Back to end dimension
45° 90° 180° 180°
Series A Series B Short radius Long radius Short radius Long radius Short radius Long radius Short radius
15 21.3 18 16 38 - 76 - 48 -
20 26.9 25 16 38 - 76 - 51 -
25 33.7 32 16 38 25 76 51 56 41
32 42.4 38 20 48 32 95 64 70 52
40 48.3 45 24 57 38 114 76 83 81
50 60.3 57 32 76 51 152 112 106 100
65 76.1 76 40 95 64 191 127 132 121
80 88.9 89 47 114 76 229 152 159 159
100 114.3 108 63 152 112 305 203 210 197
125 139.7 133 79 190 127 381 254 262 237

Characteristic

Carbon steel elbow is a metal pipe fitting that changes the direction of pipeline on carbon steel pipeline. According to the angle, there are three commonly used elbows: 45 ° and 90 ° 180 °, and other abnormal angle elbows such as 60 ° are also included according to the needs of the project. The methods of connection with the pipeline include: direct welding, flange connection, hot-melt connection, electric fusion connection, threaded connection, socket connection, etc. According to the production process, it can be divided into: welding elbow, stamping elbow, push elbow, casting elbow, etc.

Application

Carbon steel elbow is widely used in chemical industry, construction, water supply, drainage, petroleum, light and light industry, refrigeration, sanitation, plumbing, fire protection, electric power, aerospace, shipbuilding and other basic projects.

Product picture

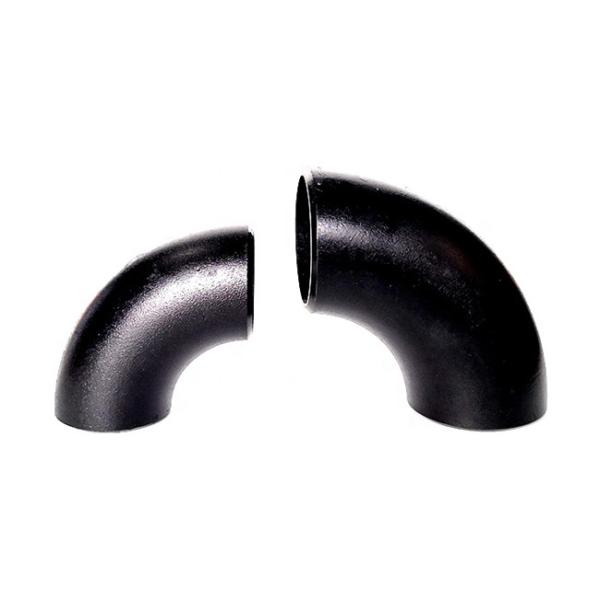

STD 90 Degree Carbon Steel Pipe Fittings Elbow ASME B16.9
