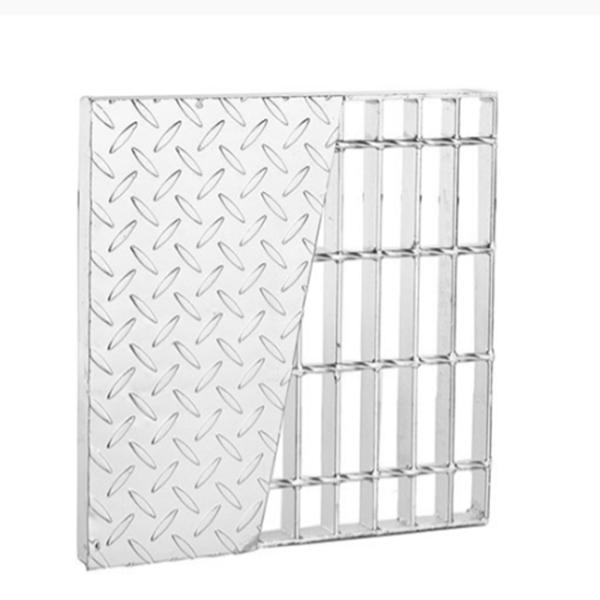

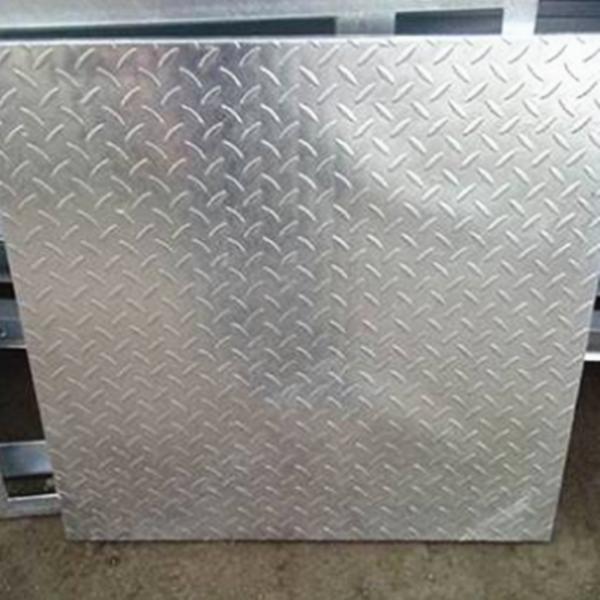

Galvanized 4mm Compound Steel Grating With Checker Plate
Galvanized 4mm Compound Steel Grating With Checker Plate
Galvanized 4mm Compound Steel Grating With Checker Plate
Galvanized 4mm Compound Steel Grating With Checker Plate
Galvanized 4mm Compound Steel Grating With Checker Plate
Galvanized 4mm Compound Steel Grating With Checker Plate
Galvanized 4mm Compound Steel Grating With Checker Plate
Galvanized 4mm Compound Steel Grating With Checker Plate
Specifications
Brand Name :
ZHUOTE
Model Number :
ZT
Certification :
ISO9001:2015
Place of Origin :
Hebei,China
MOQ :
1pcs
Price :
USD 18-20/ sq meters
Payment Terms :
T/T, L/C
Supply Ability :
1000m2+per+day
Delivery Time :
5-8day
Packaging Details :
Pallet and Bundling
Product Name :
Compound Steel Grating
Raw Material :
Q235
Specification :
G255/30/100
Checker Plate Thickness :
3mm/4mm/5mm
Product date :
5-8day
Payment Term :
TT/LC
Description
Galvanized 4mm Compound Steel Grating With Checker Plate
Galvanized Compound Steel Bar Grating Floor Composite Metal Steel Grating With Checker Plate Grating
Compound Steel Grating
Composite steel grid grating is composed of steel grid grating with certain load-bearing capacity and checkered plates. This type of bar grating may deform during the hot-dipped zinc coating process, so heavy-type steel bars with large gauges are typically selected for composite steel grid gratings.
The checkered plates are normally available in thicknesses of 3mm, 4mm, 5mm, or 6mm. Due to thermal stress generated during hot-dip zinc processing, the composite lattice steel plate may experience warpage, particularly when using larger models of steel grid plates.
Applications
Compound steel grating is widely used in platforms, corridors, bridges, well covers, stairs, and fencing for petroleum, chemical, power plants, waste treatment plants, civil engineering projects, and environmental projects. Its robust design and spanning capabilities make it extremely strong and safe for supportive structures on deckings, mezzanine floors, and elevated walkways.
Galvanized Compound Steel Grating Specification
No. Item Detailed Description
1 Bearing Bar 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc
US standard: 1'' x3/16'', 1 1/4'' x3/16'', 1 1/2'' x3/16'', 1'' x1/4'', 1 1/4'' x1/4'', 1 1/2'' x1/4'', 1'' x1/8'', 1 1/4'' x1/8'', 1 1/2'' x1/8'' etc
2 Bearing Bar Pitch 12.5, 15, 20, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc
US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc
3 Twisted Cross Bar Pitch 38.1, 40 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
4 Steel Grade ASTM A36, A1011, A569, Q235, S235JR, S275JR, SS304, Mild steel & Low carbon steel, etc
5 Surface Treatment Black, self color, hot dip galvanized, painted, spray coating
6 Grating Style Plain / Smooth, Serrated /teeth, I bar, serrated I bar
7 Grating Standard China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88), UK: BS4592-1987, Australia: AS1657-1985, Japan: JIS
Galvanized 4mm Compound Steel Grating With Checker Plate Galvanized 4mm Compound Steel Grating With Checker Plate Galvanized 4mm Compound Steel Grating With Checker Plate
Galvanized Compound Steel Grating FAQ
Q: Are you a trading company or a manufacturer?
A: We are a manufacturer.
Q: How is your product quality guaranteed?
A: Our factory is ISO9001:2015 certified. All the products are 100% tested and inspected before delivery.
Q: How does your factory handle an order?
A: After receiving an order, we will discuss all details with customers and issue a PI for final confirmation. Customers will be requested to do 30% deposit before mass production starts. When production is finished, our QC will do final testing and forward inspection pictures and reports to customers. Customers will arrange balance payment before we inform their forwarder to pick up the goods.
Q: What's the lead time?
A: It varies according to different models and designs, but normally 3-4 weeks.
Q: Do you accept OEM or ODM?
A: Yes, we have professional R&D staff to process your drawings and requirements.
Q: How can I get a free sample?
A: We charge for sample making costs, but if customers place a bulk order after sample approval, the sample costs will be refunded.
Q: What is your payment term?
A: T/T and Paypal are both acceptable. 30% deposit, 70% balance payment before shipment.
