Painted Side Walkway Industrial Steel Grating ZT302/30/50
Painted Side Walkway Industrial Steel Grating ZT302/30/50
Painted Side Walkway Industrial Steel Grating ZT302/30/50
Painted Side Walkway Industrial Steel Grating ZT302/30/50
Painted Side Walkway Industrial Steel Grating ZT302/30/50
Painted Side Walkway Industrial Steel Grating ZT302/30/50
Specifications
Brand Name :
TT
Model Number :
ZT302/30/50
Certification :
ISO 9000-2015
Place of Origin :
Anping,china
MOQ :
3 tons
Price :
Negotiable
Payment Terms :
L/C T/T
Supply Ability :
100 TONS/DAY
Delivery Time :
3-10 work days
Packaging Details :
Wooden Pallet/Steel Pallet Or As The Customar require
Product Name :
Paint Steel Grating
Grating Standard :
YB/T4001-2007
Raw Material :
Q235/S235jr
Surface Treatment :
Painting/non treatment
Size :
As Per Drawing,commoned 32*5
Packing :
Wooden or Steel Pallet
Description

Painted Or Galvanized Heavy Duty Steel Grating , 555 / 40 /100 For Trench Cover

Description:

Painted steel bar grating is a series of carbon steel bearing bars joined to perpendicular cross bars at various intervals to form a load-bearing panel finished with one shop coat of paint.

The paint protects the finished grating product during transit while increasing its visibility, which can reduce on-the-job accidents.

Our business export more than 10years as a premium manufacturer and supplier of metal flooring and allied products in China.

We provides cost effective high quality flooring and safety products solutions, either fabricated to exact project specifications or standard products available immediately.

Steel Grating Specification:

No. Item Detailed Description
1 Bearing Bar 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc
US standard: 1' ' x3/16' ' , 1 1/4' ' x3/16' ' , 1 1/2' ' x3/16' ' , 1' ' x1/4' ' , 1 1/4' ' x1/4' ' , 1 1/2' ' x1/4' ' , 1' ' x1/8' ' , 1 1/4' ' x1/8' ' , 1 1/2' ' x1/8' ' etc
2 Bearing Pitch 12.5, 15, 20, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc
US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc
3 Cross Bar Pitch 38.1, 40 50, 60, 76, 80, 100, 101.6, 120mm, 2' ' & 4' ' etc
4 Steel Grade ASTM A36, A1011, A569, Q235, S235JR, S275JR, SS304, Mild steel & Low carbon steel, etc
5 Surface Treatment Black, self colour, hot dip galvanized, painted, spray coating
6 Grating Style Plain / Smooth, Serrated /teeth, I bar, serrated I bar
7 Grating Standard China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88),
UK: BS4592-1987, Australia: AS1657-1985, Japan: JIS

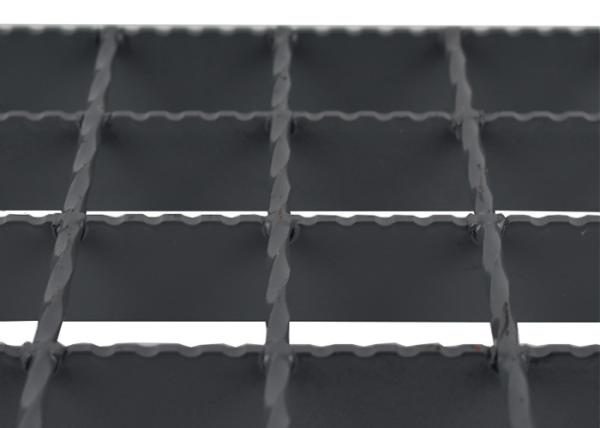

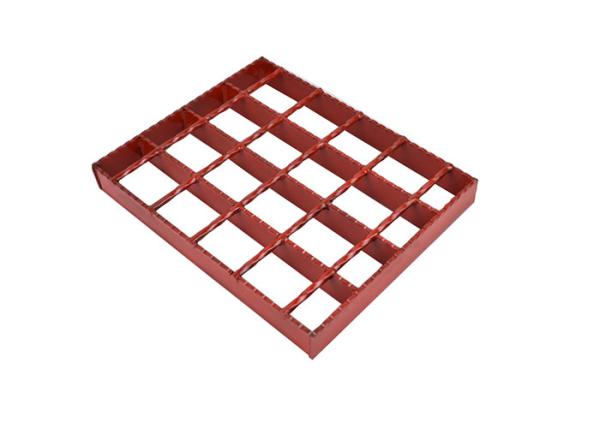

Grating Picture:

Painted Side Walkway Industrial Steel Grating ZT302/30/50
