Bar grating is forge-welded, In this process the bearing bars and cross rods are permanently forged together by heat and pressure into a single unit construction, resulting in greater strength per pound than mechanical assembly methods. The twisted cross rods provide a non-slip walking surface. For applications where extremely slippery conditions prevail, Serrated bar grating offers a superior grip surface to the load bearing bars.

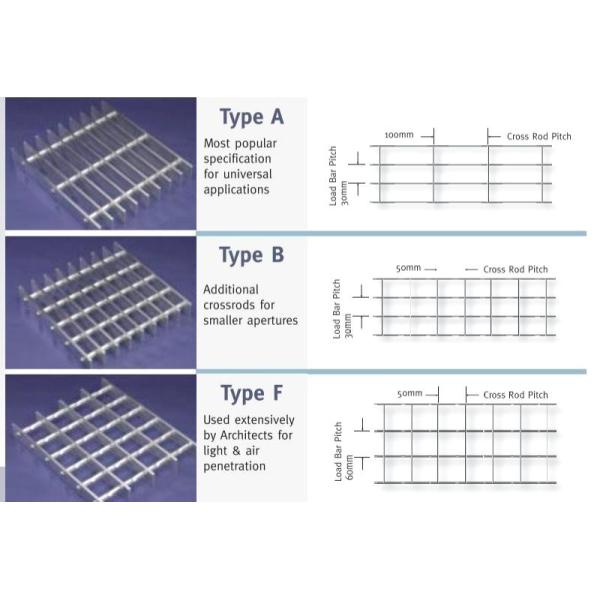

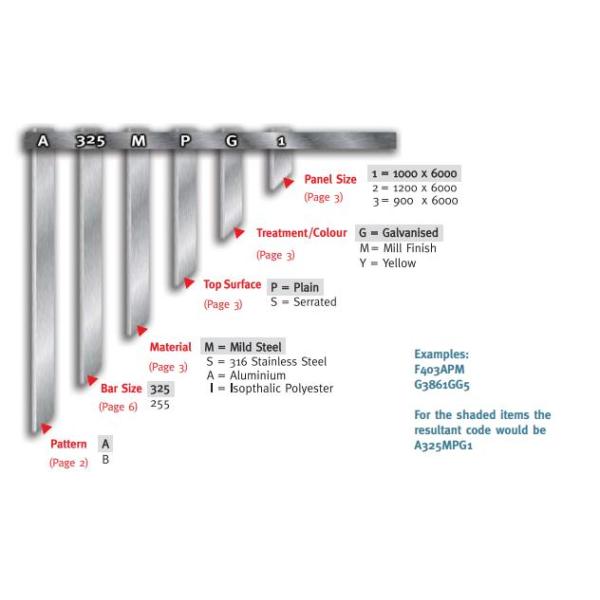

Bar grating types are specified by bearing bar spacing followed by cross rod spacing. In imperial measurements, bearing bar spacing is described in sixteenths of an inch. Therefore, Type 19 has bearing bar centers at 19/16 of an inch (or 1 3/16”). Type 15 has bearing bar centers at 15/16”. Type 11 is at 11/16” etc. The second number after the dash in the Type designation refers to the cross rod spacing. Cross rods are available in either 4” (standard) or 2” (special) spacings.

All bar grating Types may also be described in metric units. Again, the first number represents the bearing bar spacing on centers and the second number represents the cross rod spacing, both units measured in millimeters. Therefore, Type 30-102 Metric equals bearing bars at 30mm centers and cross rods at 102mm centers. This is the metric equivalent of Type 19-4.

Note: Although the special 2” (50mm) cross rod spacing does allow for less open space on the grating surface, it does not affect the load rating of the grating. The most economical and readily available choice for bar grating selection is Type 19-4 (Type 30-102 Metric).

Introduce

Specification

Pictures

FAQ

1.Are you factory or Middleman?
We are professional manufacturer in fence since 1990, our factory is 30000 square meters located in Hebei, China.
2.How long can be your products survived?
The products of our factory can be used at least 15 years as standard;But we also according the demand of clients,

3.Do your factory provide warehousing services?

There is a place of our factory, which is specially used to store goods, after finished of goods.The customers can storage for free.

4.why choose our company?

All of the terms can discuss,for the payment way,and the specification,we are the factory,so can we offer you the

best price than the trader company,if you want to give us a chance,we will let you satisfaction,so give us chance,

you find a better factory,i find a better customer.

Packing And Store
