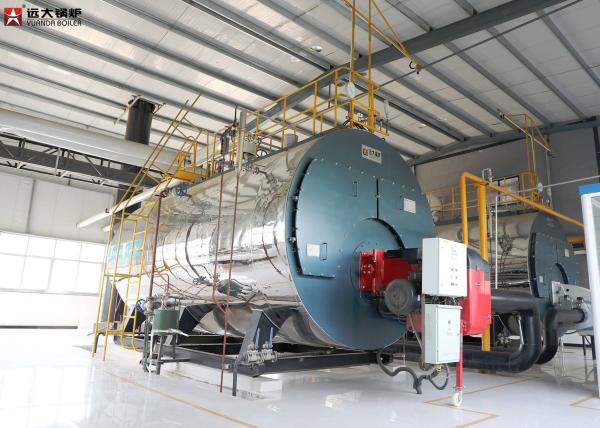

Industrial 2 ton Diesel Oil Fired Steam Boiler for Oil Extrction Plant

Quick Details:

1. Model: WNS series
2. Steam Capacity: 500 kg/hr, 1000kg/hr, 1 ton, 2 ton, 3 ton, 4 ton, 6 ton, 8 ton, 10 ton, 15 ton, 20 ton per hour
3. Design pressure:0.7Mpa(7bar), 1.0Mpa(10bar), 1.25Mpa(13bar), 1.6Mpa(16bar),2.5Mpa(25bar)
4. Steam temperature: 194 degree 224 degree 350 degree 450 degree
5. Design fuel: natural gas, lpg, lng, cng, city gas, biogas, methane gas, diesel oil, heavy oil, light oil, HFO fuel.
6. Structure: big corrugated furnace, three re-turn, fire tube, fully wet back, threaded smock tube

Unique Features

1. Big furnace

Adopt the advanced big furnace design, enlarged the furnace diameter create a bigger Radiant heat exchange area. Make fuel fully burn and reduce harmful gas.

2. Corrugated furnace

Increase the furnace strength and automatically compensate for the thermal expansion stress of the furnace. Adaptable to different fuels, such as heavy oil, light oil, natural gas or city gas.

3. thread smoke tube technology

Increase the flow rate of the flue gas, increase the heat transfer efficient, and enhance the heat transfer effect.

4. Wet back structure

Lower the temperature of back tube sheet to prevent cracking. Extend boiler life and reduce maintenance costs.

5. Independently developed PLC control panel, better match our boiler operation. Siemens PLC with 10 inch touch screen and frequency transformer, more safety and easy operation.

Wns diesel oil steam boiler technical parameter

Notes: The lower heating value of the fuel is calculated by the following values, light oil 10240kcal/kg, heavy oil 10000 kcal/kg, natural gas 8000kcal/Nm3, liquefied gas 24000 kcal/Nm3, and city gas 3800 kcal/Nm3. The parameters are for reference only. If the technology is improved, please refer to delivery technical parameters.

Application fields

1. Food industry: such as juice processing factory, tomato sauce factory, wine factory, rice mills,etc.
2. Petrochemical industry: steam can be used to heat oil, to strengthen the liquidity of oil;
3. Foam, furniture production: the steam can be used for producing foam. When making furniture, wood needs to be dried with steam;
4. Filling block production:steam used for drying the aerated brick;
5. Washing ironing industry: generally used in laundry, including dry cleaning machines, dryers, washing machines, dehydration machines, ironing machines, iron and other equipment supporting the use;
6. Packaging machinery industry: labeling machines, sets of standard machine;
7. Bio-chemical industry: fermentation tank, reactor, sandwich pan, mixer, emulsifier and other equipment;
8. Food machinery industry: tofu machine, steamer, sterilization tank, packaging machines, paint equipment, sealing machines and other equipment;

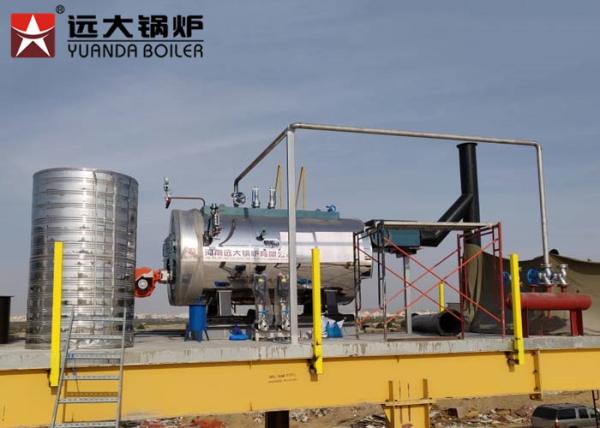

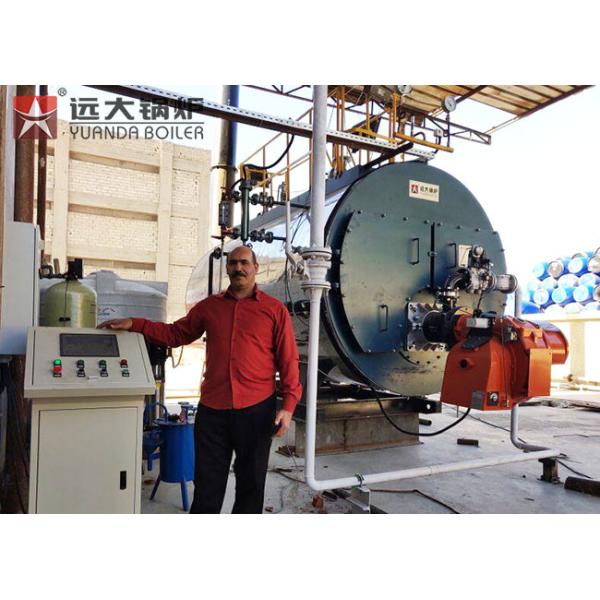

2 ton Diesel Oil Steam Boiler for Oil Extrc tion PlantProject Case

Yuanda Boiler Service:

1. Pre-sale service:

We help customer choose the best boiler model according to different requirements of various industry. Before delivery we will provide foundation drawing, layout drawing, boiler room layout, etc.

2. In-sale service:

We keep 24 hours online and keep close contacts during the production process to ensure on time delivery with perfect finished product.

3. After-sale service:

• provide full range of original spare parts.
• We will send engineers to your local project site to guide the installation and commissioning.
• Our engineers will held a training for boiler workers to ensure the safe operation.
• Free maintenance and repair for one year and lifelong service.
