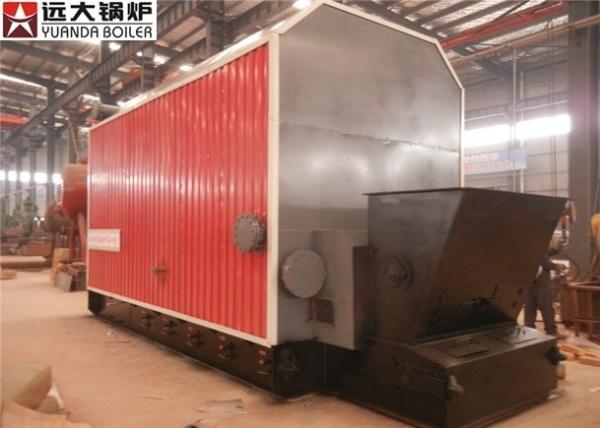

Heat Transfer Pipe Coil Thermal Oil Heating System For Plywood Industry
Heat Transfer Pipe Coil Thermal Oil Heating System For Plywood Industry
Specifications
Brand Name :
Yuanda Thermal Oil Heater
Model Number :
YLW coal biomass boiler
Certification :
ISO9001,SGS,CE
Place of Origin :
Henan,China
MOQ :
1 set
Price :
Price can be discussed.
Payment Terms :
D/P, T/T, L/C, D/A, Western Union
Supply Ability :
600 set per year
Delivery Time :
20 working days after payment
Packaging Details :
Plywood for boiler accessories.
Name :
Heat Transfer Pipe Coil Thermal Oil Heater Boiler For Plywood Industry
Efficiency :
High working efficiency
Fuel :
solid pellet
Item :
chain grate thermal oil boiler
Quality :
Strict quality control
Size :
Up to boiler model
Rated working pressure :
Customization
Rated thermal power :
700kw to 14000kw
Description

Heat Transfer Pipe Coil Thermal Oil Heater Boiler For Plywood Industry

Basic features of coal fired thermal oil heater boiler

1. Organic heat carrier boiler use coal, petroleum, gas as fuel, heat conducting oil as carrier, use circulation pump to control the liquid phase circulation coercively. It can get high temperature under low working pressure and it has the technological characteristics of low voltage and high temperature.
2. It can realize stable heating and accurate temperature adjustment to meet different requirements.
3. In different level load, the thermal efficiency all can keep optimal level.
4. It has complete operating control and safety testing devices, and it can be operated conveniently, safely and reliably.
5. Closed circulation, liquid phase heat delivery and low thermal losses, remarkable energy saving and low operation cost.
6. Fast packaged or assembled for shipment with convenient transportation, short installation period, and fast return of investment.

Take technical parameter for reference

Thermic fluid boiler model YLW-1200MA YLW-1400MA YLW-2000MA YLW-2400MA YLW-3000MA YLW-3500MA YLW-4100MA
Thermal power(KW) 1200 1400 2000 2400 3000 3500 4100
Heat efficiency(%) 80 80 80 80 80 80 80
Design pressure(%) 1.1 1.1 1.1 1.1 1.1 1.1 1.1
Tmax(°C) 320 320 320 320 320 320 320
Circulation oil volume(m³/h) 100 100 160 180 200 200 250
Pipng connecting diameter(DN) 125 150 150 150 150 150 150
Total weight(kg) 19800 20500 21500 24600 33760 35800 37500

This is just part of the product parameters, if you want to know more detailed parameters of the boiler, please feel free to contact us.

Boiler application

Widely used in petroleum, chemical, pharmaceutical, textile printing and dyeing, light industry, building materials, food, road asphalt heating and other industrial fields requiring high temperatures.

Boiler advantages

1. Fast packaged or assembled for shipment with easy transportation, short installation period, and fast return of Investment.
2. The boiler features heat preservation performance with high-efficiency heat preservation material and state-of-the-art construction technology, lower radiating loss of boiler wall.
3. Fast temperature rise, high thermal efficiency, with overload capacity at a certain degree to ensure output of boiler.
4. Outstanding energy-saving effect, saving energy by 10-15% compared with similar products, return of investment for the equipment in the whole boiler room may be attained by capital of saved energy for one year operation.
