4000Kg Solid Pellet Sawdust Fired Boilers , Low Pressure Steam Boiler
4000Kg Solid Pellet Sawdust Fired Boilers , Low Pressure Steam Boiler
Specifications
Brand Name :
Yuanda Boiler
Model Number :
SZL
Certification :
ISO,SGS,CE,ASME
Place of Origin :
Henan,China
MOQ :
1 set
Price :
Price can be discussed.
Payment Terms :
D/P, T/T, D/A, L/C, Western Union
Supply Ability :
100 sets per month
Delivery Time :
20 working days after payment
Packaging Details :
Wood box for boiler accessories,nude packaging for boiler main body.
Product :
4000Kg Biomass Steam Boiler Solid Pellet Sawdust Industrial Boiler
Weight :
Models
Output :
Steam
Style :
Horizontal
Color :
Customer's Requirement
Pressure :
Low Pressure
After-sales Service Provided :
Engineers available to service machinery overseas
Quality :
Inspection Report
Description

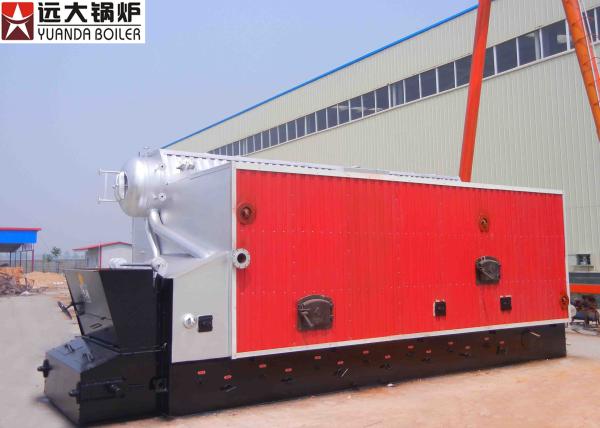

4000Kg Biomass Steam Boiler Solid Pellet Sawdust Industrial Boiler

Main charactericstics


(1) Three pass boiler
(2) Water-fire tube
(3) Wing-shape flue
(4) Spirally corrugated tubes
(5) Convex tube plate
(6) Simple circulation loop, large sized down pipe and bottom container.
(7) New type arch made with refractory cement by overall pouring
(8) Small overall dimensions and low boiler room investment cost

Boiler parameter

Model Rated capacity Rated pressure Rated Feed water temp Rated steam temp. Weight Dimension Delivery Mode
t/h Mpa ℃ ℃ Ton mm
SZH2-1.25/2.5-AII 2 1.25/2.5 20 194/226 17/18.5 4850×2690×3468 Package Bolier
SZH4-1.25/2.5-AII 4 1.25/2.5 20 194/226 22/24.8 5450×3040×3468
SZL2-1.25/2.5-AII 2 1.25/2.5 20 194/226 20/25 5960×2960×3468
SZL4-1.25/2.5-AII 4 1.25/2.5 20 194/226 28/29 6510×3130×3468
SZL6-1.25/2.5-AII 6 1.25/2.5 20 194/226 38/42 7830×3346×3468
SZL8-1.25/2.5-AII 8 1.25/2.5 20 194/226 52 8200×3346×3468
SZL10-1.25/2.5-AII 10 1.25/2.5 20 194/226 68 8500×3346×3482 Assembled Boiler
SZL15-1.25/2.5-AII 15 1.25/2.5 20 194/226 30 9583×3400×3550
SZL20-1.25/2.5-AII 20 1.25/2.5 20 194/226 40 11600×3460×3520


Boiler design advantages

1. Low Operating Cost, Safety and Reliability
2. Short Installation Time, Low Installation Cost

3. High running efficiency, good steam quality output

4. Superior boiler structure design, the best boiler in China

5. Boiler factory for more than 60 years, more than 10years export experience

Boiler application fields

1. Medicine

2. chemical

3. light industry

4. textile industry

5. building material

6. cultivation

7. food and beverage

8. plastic foam

9. printing

10. dyeing and washing

11. rubber processing

12. paper products

13. wood processing

14. hotel, greenhouse, center heating

15. clothing and leather manufacturer etc.
