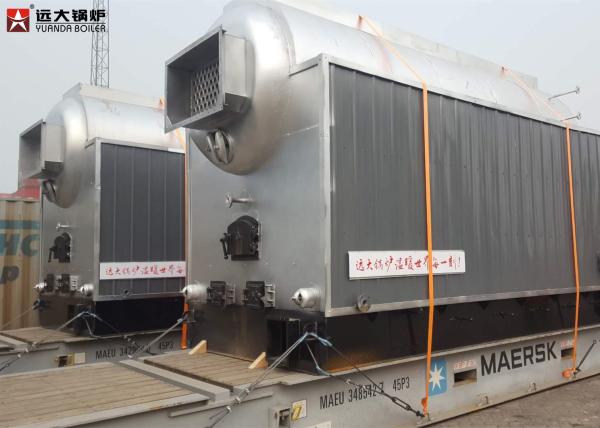

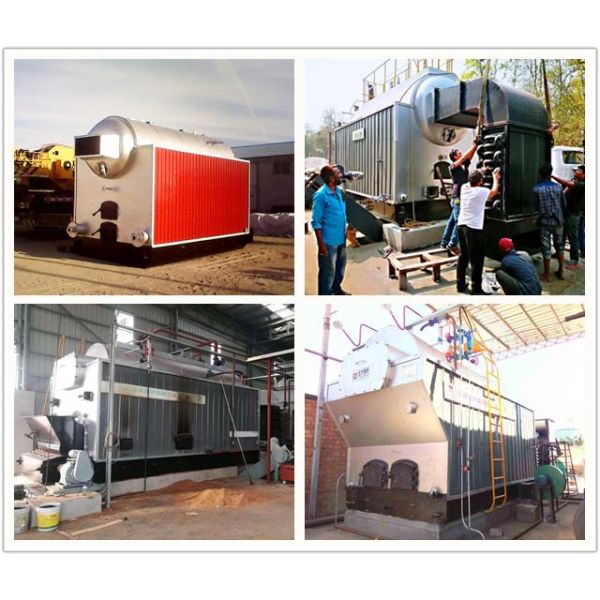

Automatic Chain Grate Coal Fired Residential Industrial Steam Boiler 4 Ton Low Pressure

Basic Features of Industrial Steam Boiler
1. Product description/name: coal fired hot water heating boiler
2. Rated capacity: thermal power 0.7mw 1.4mw 2.8mw 4.2mw 5.6mw 7mw 10.5mw 14mw 21mw 28mw etc.
3. Rated working pressure: 0.7Mpa, 1.0Mpa, 1.5MPa, 2.0Mpa, 2.6Mpa
4. Rated steam temperature : below 226 °C
5. Fuel: coal ,wood pellet, biomass pellet
6. Type: Automatic feeding chain grate coal fired boiler

Technical parameter of Industrial Steam Boiler

Application of Industrial Steam Boiler

The DZL Coal Steam Boiler can be used for the following business: Chemical plant, Textile plant, Food & Beverage, Garment manufacturing, Paper Plant, Printing and dyeing mill, Cement Plant, Fertilizer plant, Feed mills, Rubber factory. Schools, Hotel, Bath Center, Swimming Pool, Hospital, Hotel, etc.
The most important thing is that our boilers are all tailor-made. They are designed all depending on your business, including on the fuel,capacity, pressure and so on you need.

Advantages of Industrial Steam Boiler

1. Adopting the new-type structure
The new-type structure steam boiler adopts single drum vertical type arrangement, and two sides of the furnace are arranged with water cooled wall. The upper part is welded with the boiler drum, and the lower part is welded with the right and left container. The back arch and the drum space are arranged with convection bank, whose upper part is welded with boiler drum, and whose lower part is connected with all containers. It is the compact structure.

2. Organizing the fire in the furnace reasonably. The furnace adopts double layers anti-burning structure which is formed by the pre-combustion chamber and combustion chamber. As for the boiler design, dividing the furnace into the pre-combustion chamber and combustion chamber, which is good for strengthening the fuel burning, and decreasing flying ash fuel and flying ash content.

3. Among the convection tubes, there are many smoke baffle walls, which can make fire turning-back many times and are good for removing the dust of the furnace. Boiler itself has a dust removal function, so that dust emissions from the boiler to reach the target state environmental regulations. This series of boiler adopts arched tube plate, two-wing flue pipe etc, thread, solve the smoke pot shell boiler tube plate cracking, the bulge, tube boiler water-cooled wall tube, thermal efficiency is low, the coal output, adaptability, etc.

Warranty and after-sale service

The top quality of every set of machine and best after sales service as followings :
(A) The boiler body guarantee is 24 month , for accessories 36 month
(B) During the guarantee period , if the main body defective or broken without wrong operating
we must replace the parts for free or prepare the spare-parts for free.
(C) We should provide boiler technical service and operation guidance for whole life long.
(D) Regarding to the installation and training , the buyer should take all the correlative charges
