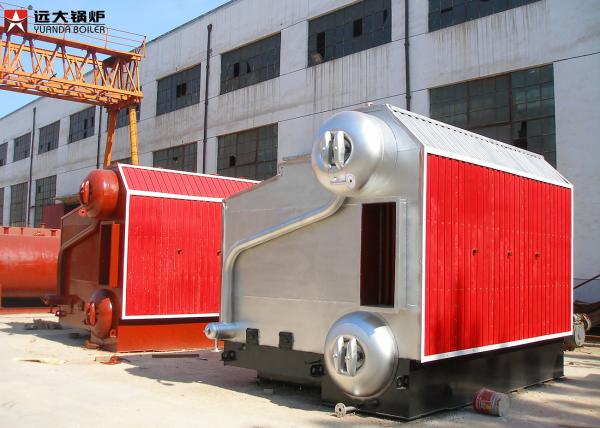

2Ton Biomass Fired Industrial Steam Boiler Water Tube Biomass Boiler

Industrial Steam Boiler Basic introduction

1. National Scientific and Technological Progress Second Prize
2. Singapore New Product Expo Golden Lion Award
3. With special fuel hopper and fuel discharge device.
4. Three pass boiler. The smoke go through three phase, making the boiler have higher heat transfer efficiency and lower smoke temperature emission.
5. The hearth is designed with a cyclone re-burning chamber, which makes the boiler energy saving, high combustion efficiency and environmental friendly.
6. Special air distribution design.
7. The arch is specially designed according to the fuel.
8. Design of preventing fouling, slagging and corrosion of heating area.
9. It has a double-drum offset hearth (D-type layout) with furnace in the right side of the boiler and two drums in the left side of the boiler, the structure is very compact.

Industrial Steam Boiler​ parameter

Industrial Steam Boiler​ application

Medicine, chemical, light industry, textile, building material, cultivation, food and beverage, plastic foam, printing, dyeing and washing, rubber processing, paper products, wood processing, hotel, clothing and leather manufacturer etc.

Industrial Steam Boiler​ advantages

1.Unique warehouse and feeding equipment
Biomass boiler bin and the design of the feeding device,is a important link which means boiler can operate safely and reliably or not. the big speed bin design could control fuel transmit mass automatically according to the thermal energy, isolate flame and flue to prevent tempering.

2. Unique design of cloth wind
According to the characteristic of low biomass carbon content,high volatile, sulfur content, small ash,small density, arrange the wind proportion of sections for once wind and the secondary wind reasonably, so as to control the temperature of furnace, avoid the coking and make combustion more fully.

3. Large furnace and new furnace arch design
Decorate enough heating surface, make the heat from combustion release absorbed fully by the surface then the transmit to the working medium. increase the temperature of the furnace,at the same time, strengthen the disturbance of flue gas in high temperature area, reduce the incomplete combustion heat loss and fly ash loss, improve the fuel burnout ratio and thermal efficiency of boiler.

4. Anti-fouling, slag and corrosion treatment designed in heating surface
High alkali content in the biomass fuel, so biomass ash melting point is lower, that is the important reason of dust accumulation, slagging and corrosion in heating surface. Do protective wear process in the special convection heating parts according to the different biomass fuels, prevent the dust and slagging influencing the boiler operation.
