2 Ton - 30 Ton VAR Vacuum Arc Remelting Furnace VAR/RVAR High Efficiency
2 Ton - 30 Ton VAR Vacuum Arc Remelting Furnace VAR/RVAR High Efficiency
2 Ton - 30 Ton VAR Vacuum Arc Remelting Furnace VAR/RVAR High Efficiency
2 Ton - 30 Ton VAR Vacuum Arc Remelting Furnace VAR/RVAR High Efficiency
2 Ton - 30 Ton VAR Vacuum Arc Remelting Furnace VAR/RVAR High Efficiency
2 Ton - 30 Ton VAR Vacuum Arc Remelting Furnace VAR/RVAR High Efficiency
Specifications
Place of Origin :
Shaanxi, China
Brand Name :
AE
Price :
Negotiation
Certification :
CE;ISO9001;ISO14001;OHSAS 18001
MOQ :
1
Delivery Time :
30-60 work days
Type :
Vacuum induction melting furnace
Use :
Melting Furnace
Warranty of core components :
1 Year
Core Components :
PLC, Pump
Voltage :
380
Description

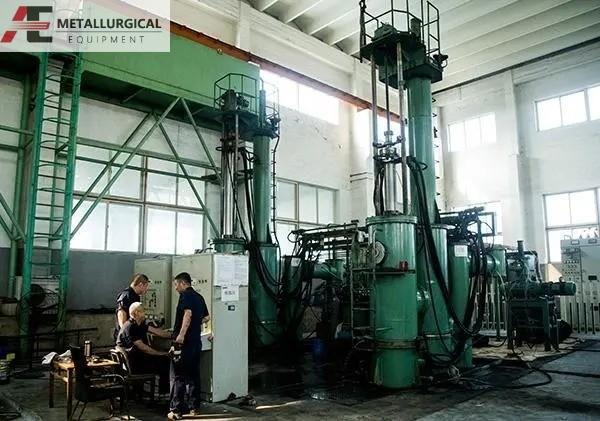

Vacuum Arc Remelting Furnace(VAR/RVAR)

Vacuum Arc Remelting Furnace VAR/RVAR 2T-30T for Manufacturing Plant Efficiency and Performance

Product Features

The entire furnace head is designed as a self-supporting structure without any building support;

Coaxial conductive design can reduce unnecessary interference of magnetic field;

New helium cooling system for crucible;

Electromagnetic stirring system (titanium and its alloy);

Using efficient power system made in Germany;

Installed capacity is smaller than others it can promote energy saving and environmental protection and help to reduce the operating costs.

The electrode is driven by a servo motor for fast and slow electrode movement.

The electrode stub clamp is pneumatic driven to make sure the reliable connection and contact between the stub and the conductive furnace ram;

Using remote television monitor system during the melting process;

The recipe menu can be stored on the PC and can be recalled and modified at any time by the operator;

All data of the smelting are logged in a PC data acquisition system and it can be analyzed;

Three (3) beam type precision load cells with strain gauges and full temperature compensationrecord the real time information about the remaining electrode ;

Using an efficient reliable and stable SCR melting power supply technology;

Security protection technology (hardware and software protection);

Closed loop cooling water systems.

Client Type:

Aviation aerospace and navigation field

New material field

Product Type:

High temperature alloy

Titanium alloy

Special stainless steel

Refractory steel

Extra large forging ingot

High grade roller bearing steel
