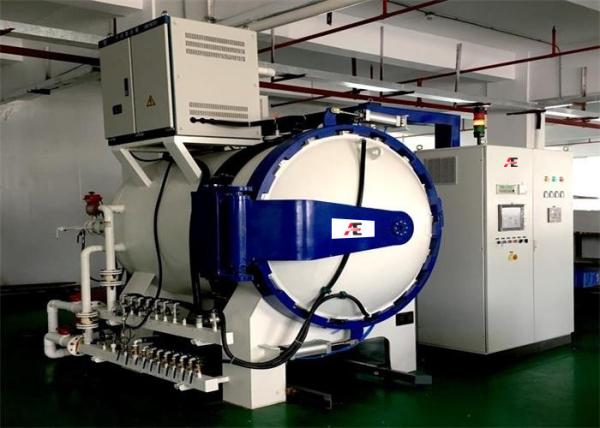

6/10/12/15/20bar Vacuum Hardening Furnace Automatically Controlled
6/10/12/15/20bar Vacuum Hardening Furnace Automatically Controlled
Specifications
Brand Name :
AE
Certification :
CE;ISO9001;ISO14001;OHSAS 18001
Place of Origin :
Shaanxi, China
MOQ :
1
Price :
Negotiation
Delivery Time :
30-90work days
Type :
Vacuum gas quenching furnace
Use :
Melting Furnace
Warranty of core components :
1 Year
Core Components :
PLC, Pump, Pressure vessel
Key Selling Points :
Competitive Price
Max. temperature :
1300℃ (custom made)
Operation mode :
PLC plus touching screen
Air cooling pressure :
6/10/12/15/20bar
Description

Vacuum high pressure gas quenching furnace

Vacuum Hardening Furnace Manufacturer Automatically Controlled Vacuum Gas Quenching Oil Quenching Furnace

Application:

Mainly used for vacuum quenching, annealing, tempering, and solution treatment of metal materials such as high-speed tool steel, die steel, and martensitic stainless steel. It can also be used for sintering and vacuum brazing of powder metallurgy products and magnetic materials.

Advantages and features:

New heating chamber structure, more uniform heating, low power loss, and more energy-saving.

According to the different cooling speed requirements of parts, it is equipped with a high-efficiency copper fin heat exchanger with adjustable cooling speed, which can realize processes such as graded quenching and isothermal quenching.

The furnace door is equipped with a unique sealing structure to ensure positive and negative pressure bidirectional sealing.

Options:

Furnace body form: vertical, horizontal.

Pressure: 2bar, 6bar, 10bar, 16bar.

Heating element: graphite; high-temperature molybdenum-lanthanum alloy.

Heat insulation screen: insulation felt; metal screen.

Vacuum pump set: imported; domestic high-quality brand.

Technical Parameter:

Model

Working Zone Size

(W*H*L)

MAX Temperature

Cooling Gas

Pressure

Ultimate Pressure

Temperature Uniformity

Loading Capacity

UNDQ-446

400*400*600mm

1350℃

6/10/15/20Bar

6.7*10-4Pa/6.7*10-1Pa

±5℃

200Kg

UNDQ-557

500*500*700mm

1350℃

6/10/15/20Bar

6.7*10-4Pa/6.7*10-1Pa

±5℃

300Kg

UNDQ-669

600*600*900mm

1350℃

6/10/15/20Bar

6.7*10-4Pa/6.7*10-1Pa

±5℃

500Kg

UNDQ-7710

700*700*1000mm

1350℃

6/10/15/20Bar

6.7*10-4Pa/6.7*10-1Pa

±5℃

700Kg

UNDQ-8812

800*800*1200mm

1350℃

6/10/15/20Bar

6.7*10-4Pa/6.7*10-1Pa

±5℃

1000Kg

UNDQ-9915

900*900*1500mm

1350℃

6/10/15/20Bar

6.7*10-4Pa/6.7*10-1Pa

±5℃

1200Kg

Remark: The working zone of equipment could be customized base on customer’s production.
