10T-150T Capacity Electric Arc Furnace with PLC Control System for Precise Temperature Control in Steel Melting
10T-150T Capacity Electric Arc Furnace with PLC Control System for Precise Temperature Control in Steel Melting
10T-150T Capacity Electric Arc Furnace with PLC Control System for Precise Temperature Control in Steel Melting
10T-150T Capacity Electric Arc Furnace with PLC Control System for Precise Temperature Control in Steel Melting
10T-150T Capacity Electric Arc Furnace with PLC Control System for Precise Temperature Control in Steel Melting
10T-150T Capacity Electric Arc Furnace with PLC Control System for Precise Temperature Control in Steel Melting
10T-150T Capacity Electric Arc Furnace with PLC Control System for Precise Temperature Control in Steel Melting
10T-150T Capacity Electric Arc Furnace with PLC Control System for Precise Temperature Control in Steel Melting
10T-150T Capacity Electric Arc Furnace with PLC Control System for Precise Temperature Control in Steel Melting
10T-150T Capacity Electric Arc Furnace with PLC Control System for Precise Temperature Control in Steel Melting
Specifications
Brand Name :
AE
Certification :
CE;ISO9001;ISO14001;OHSAS 18001
Place of Origin :
Shaanxi, China
MOQ :
1
Price :
Negotiation
Delivery Time :
30-60 work days
Type :
Arc Furnace
Core Components :
PLC
Warranty :
1 Year
Key Selling Points :
Competitive Price
Marketing Type :
Hot Product
Description
Electric Arc Furnace (EAF) for Steel Melting - 10T-150T Capacity

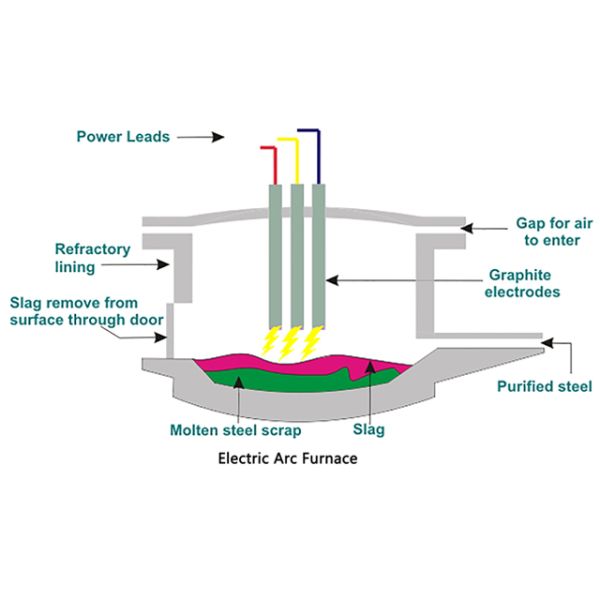

The Electric Arc Furnace utilizes electricity as its fuel source, generating high-temperature arcs between electrodes and furnace charge for efficient metal melting. This industrial-grade equipment is essential for producing various steel grades including carbon steel, alloy steel, stainless steel, and ferroalloys in steel mills, foundries, and alloy production facilities.
10T-150T Capacity Electric Arc Furnace with PLC Control System for Precise Temperature Control in Steel Melting
Key Features and Advantages
  • Precise temperature control adaptable to different steel grade requirements
  • High thermal efficiency with controllable furnace atmosphere
  • Effective removal of phosphorus, sulfur, oxygen and other impurities
  • Precise chemical composition control with high alloy recovery rates
  • Simplified equipment design with streamlined production process
Advanced Technological Features
  • Optimized structural design for maximum efficiency
  • Tubular water-cooled furnace wall and lid system
  • Eccentric Bottom Tapping (EBT) technology
  • Copper-steel composite electrode arms
  • Cluster-type large sectional area water-cooled cables
  • Energy-saving optimized large current system
  • Proportional valve hydraulic system
  • PLC + Industrial computer control system
  • Advanced frequency control and network technology
Complete System Components
The furnace system includes: furnace body, tilting mechanism, furnace cover, furnace bracket, cover lifting/rotating mechanism, electrode lifting mechanism, short net system, cooling system, air compression system, upright bracket, maintenance platform, electrode extension device, hydraulic system, transformer, oxygen lance devices (furnace door and cluster), high voltage cabinet, low voltage power supply system, and computer/PLC control system.
10T-150T Capacity Electric Arc Furnace with PLC Control System for Precise Temperature Control in Steel Melting
Technical Specifications
Model Rated Capacity (T) Max Capacity (T) Furnace Shell Inner Diameter (MM) Electrode Diameter (MM) Transformer Capacity (KVA)
EAF-5T 5 10 3200 300 2500-4300
EAF-10T 10 18 3600 350 5500-8000
EAF-15T 15 24 3800 350 8000-12500
EAF-20T 20 30 4000 400 9000-12500
EAF-25T 25 35 4200 400 12500
EAF-30T 30 45 4400 400 12500-25000
EAF-40T 40 55 4600 450 16000-30000
EAF-45T 45 65 4800 450 16000-40000
EAF-60T 60 85 5400 500 25000-60000
EAF-80T 80 100 6100 500 30000-80000
EAF-100 100 120 6400 550 40000-80000
