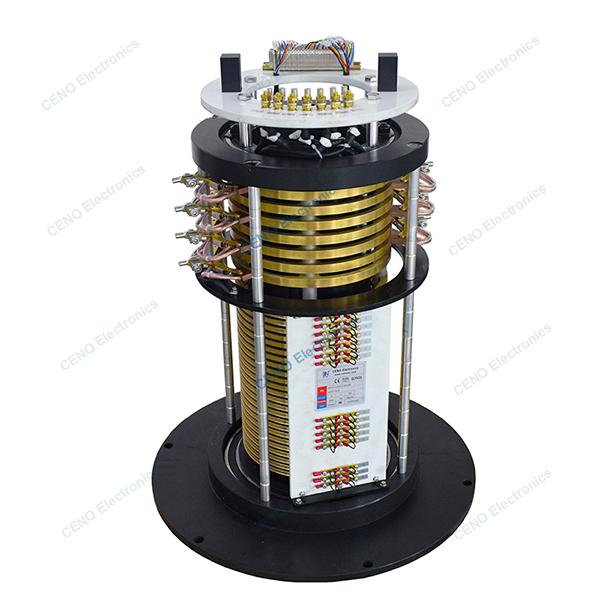

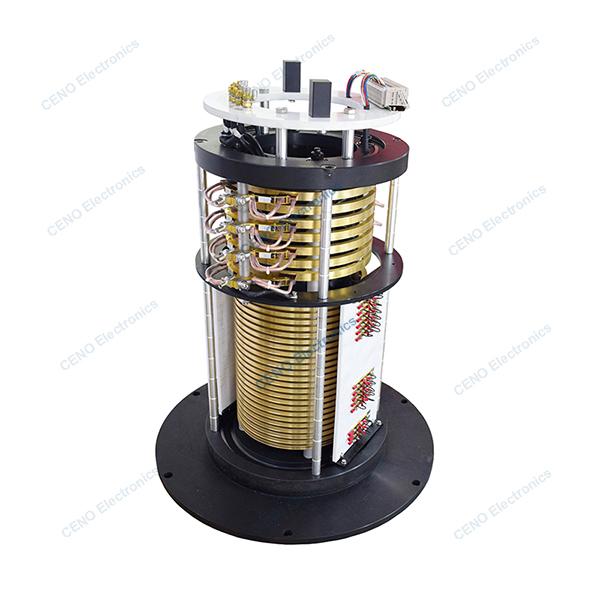

Multi-channels Carbon Brush Slip Ring with Electric Power & Signals for Industry
Multi-channels Carbon Brush Slip Ring with Electric Power & Signals for Industry
Multi-channels Carbon Brush Slip Ring with Electric Power & Signals for Industry
Multi-channels Carbon Brush Slip Ring with Electric Power & Signals for Industry
Specifications
Brand Name :
CENO
Model Number :
BHCN-C-200-0763-25S
Certification :
CE,RoHS,UL,ISO9001
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
L/C, T/T,Paypal,Western Union
Delivery Time :
2 weeks
Packaging Details :
Crate/As request
Current & Circuits :
6 * 63A; 1 * PE; 25*Signal
Rating voltage :
0 ~ 380 VAC/VDC
Dielectric strength :
≥1000VAC@50Hz; ≥300VAC@50Hz
Isolation resistance :
≥500MΩ@100VDC; ≥100MΩ@100VDC
Contact resistance :
≤10mΩ(50rpm)
Working Temperature Storage Temperature :
-20°C~+60°C
Working humidity :
90%RH
IP protection grade :
IP00
Operating speed :
0~5 Rpm
Contact material :
Copper graphite
Housing material :
Aluminium Alloy
Maintenance :
On Schedule
Description

Multi-channels Carbon Brush Slip Ring with Electric Power & Signals for Industry

BHCN-C-200-0763-25S is CENO carbon brush slip ring with 65 circuits electric power & 25 circuits signals for kinds of industrial equipment. CENO carbon brush slip ring represent the union of manufacturing processes and technologies that enable CENO to offer large, high volume slip rings with advanced feature that are cost effective. Capability of adding integral encoder, multiplexer, fiber optic rotary joint and non-contacting data link. For more information please contact us.

Features

  • Excellent weather resistance, high electrical safety
  • Advanced copper graphite, stable performance, less dust & long life
  • Special design & easy maintenance


Applications

  • Mining equipment
  • Oil well & drilling plat form
  • Harbour machinery
  • Vessel crane
  • Offshore platform crane


Optional

  • Circuits, Voltage, Current
  • Structure and Shape
  • Contact / Housing Materials
  • Protection grade
  • Working speed & temperature




Specification

BHCN-C-200-0763-25SSpecification
Current & Circuits6 circuits * 63A; 1 * PE; 25 circuits *Signal
Rating Voltage0 ~ 380 VAC/VDC
Dielectric strength≥1000VAC@50Hz; ≥300VAC@50Hz
Isolation resistance≥500MΩ@100VDC; ≥100MΩ@100VDC
Contact resistance wave≤ 10mΩ
Working temperature-20°C~+60°C
Working humidity90 %RH
IP protection gradeIP00
Operating speed0~5rpm
Inner diameter200mm
Contact materialCopper graphite
Housing materialAluminium Alloy
MaintenanceOn Schedule




Outline Drawing
Multi-channels Carbon Brush Slip Ring with Electric Power & Signals for Industry




More information about ceno marine carbon brush slip rings

CENO Electronics has been designing and manufacturing slip rings for various industries for about 20 years. Our Carbon Brush Slip Ring is specially designed for marine and offshore applications, making sure your equipment runs smoothly and efficiently.
Our Carbon Brush Slip Ring has 7 circuits for 200A (400V), 1 circuit for PE, 6 circuits for 63A (400V), and 40 circuits for 5A signal. This product stands out with its large current capacity, which is perfect for marine and offshore applications. The high-quality materials used in construction ensure that our slip rings can withstand harsh and corrosive environments.
Our Carbon Brush Slip Rings also feature low electrical noise and minimal contact resistance, which can maintain the integrity of your signal transmission and power delivery. With CENO Electronics, you can trust that our slip rings are reliable and efficient, ensuring that your machinery operates safely and efficiently.
In conclusion, CENO Electronics has developed a Carbon Brush Slip Ring that is specifically designed to meet the needs of marine and offshore applications. With its large current capacity, low electrical noise, and high-quality construction materials, it is an excellent choice for any industrial application. Trust CENO Electronics for all your slip ring needs.





Application pictures

Multi-channels Carbon Brush Slip Ring with Electric Power & Signals for IndustryMulti-channels Carbon Brush Slip Ring with Electric Power & Signals for IndustryMulti-channels Carbon Brush Slip Ring with Electric Power & Signals for Industry


Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

Certification

ISO9001,CE,RoHS,UL,Explosion-proof

CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
