Signal Pancake Slip Ring with Through Hole 45mm and Optional Thickness
Signal Pancake Slip Ring with Through Hole 45mm and Optional Thickness
Signal Pancake Slip Ring with Through Hole 45mm and Optional Thickness
Signal Pancake Slip Ring with Through Hole 45mm and Optional Thickness
Signal Pancake Slip Ring with Through Hole 45mm and Optional Thickness
Signal Pancake Slip Ring with Through Hole 45mm and Optional Thickness
Specifications
Brand Name :
CENO
Model Number :
ECN045-04S-DX
Certification :
CE,RoHS,UL,ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T,Paypal,Western Union
Supply Ability :
10000pcs per month
Delivery Time :
2 weeks
Packaging Details :
Carton/As request
Current & Circuits :
4 circuits * 0.5Amp
Rating Voltage :
5 VAC/VDC
Dielectric strength :
≥500VAC@50Hz
Isolation resistance :
≥100MΩ@100VDC
Electrical noise :
≤15mΩ (50rpm)
Operating speed :
0~100rpm
Contact material :
Precious Metal
Housing material :
Aluminum Alloy
Working temperature :
-20°C~+60°C
Working humidity :
60%
IP protection grade :
IP54
Through hole size :
Ø45mm
External diameter :
Ø100mm
Lead wire size & length :
As customized
Description

Signal Pancake Slip Ring with Through Hole 45mm and Optional Thickness

ECN045-04S-DX is CENO through hole slip ring with inner bore size 45mm & 0.5A electric signal. As we know that rotary electrical joints or electrical rotary connectors, are designed specially for the communication and transmission of electrical signals or various data by a rotating interface. Through hole conductive slip rings are characterized by features that allow for the efficient and reliable transfer of electrical signals while enabling continuous rotating.

Features

  • Simple electric system design
  • Through hole design with table transmitting, no string code
  • Can be integrated various data
  • Install easy & Free maintenance

Applications

  • Automatic machine
  • Robot
  • Amusement
  • Wind turbine
  • Medical equipment

Optional

  • Circuit, Voltage, Current
  • Inner / Outer bore size
  • Contact / Housing Materials
  • Working speed / temperature
  • IP Grade

Specification

ECN045-04S-DX Specification
Current & Circuits 4 circuits * 0.5Amp
Rating Voltage 5 VAC/VDC
Dielectric strength ≥500VAC@50Hz
Isolation resistance ≥100MΩ@100VDC
Contact resistance 15mΩ (50rpm)
Contact material Precious Metal
Housing material Aluminum Alloy
Working temperature -20°C~+60°C
Working humidity 60%RH
IP protection grade IP54
Operating speed 0~100rpm
Inner bore Ø45mm
Lead wire length As customized
Lead wire size 4 core twisted shielded wire

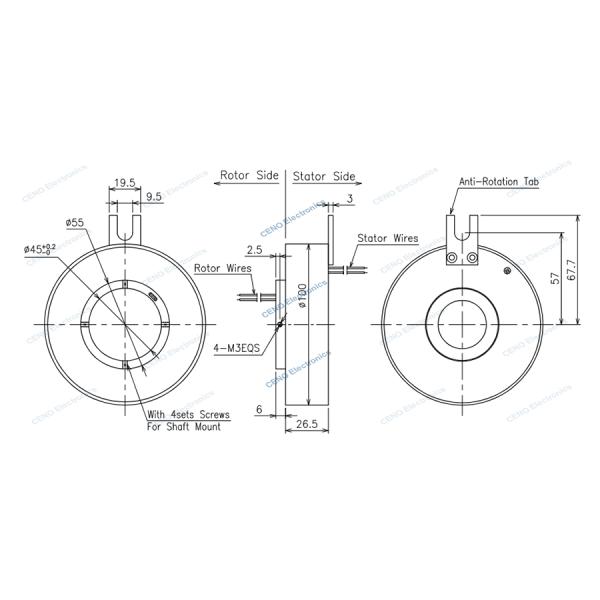

Outline drawing

Signal Pancake Slip Ring with Through Hole 45mm and Optional Thickness

Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

Certification

ISO9001,CE,RoHS,UL,Explosion-proof

CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
