Low Temperature Slip Ring with Through hole Electric Power and Ethernet Signal
Low Temperature Slip Ring with Through hole Electric Power and Ethernet Signal
Low Temperature Slip Ring with Through hole Electric Power and Ethernet Signal
Low Temperature Slip Ring with Through hole Electric Power and Ethernet Signal
Low Temperature Slip Ring with Through hole Electric Power and Ethernet Signal
Low Temperature Slip Ring with Through hole Electric Power and Ethernet Signal
Specifications
Brand Name :
CENO
Model Number :
ECN038-02P4-02EM-IP54
Certification :
CE,RoHS,ISO9001,UL
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T,Paypal, Western Union
Supply Ability :
500pcs per month
Delivery Time :
1 week
Packaging Details :
Carton/As request
Current & Circuits :
2 circuits * 20A; 2 group * 100M Ethernet
Rating Voltage :
0 ~ 240 VAC/VDC
Dielectric strength :
≥1000VAC@50Hz; ≥300VAC@50Hz
Isolation resistance :
≥500MΩ@500VDC; ≥100MΩ@100VDC
Contact resistance :
≤ 30mΩ
Temperature :
-60°C~+70°C
Working humidity :
95±4 %RH
IP protection grade :
IP54
Operating speed :
0~300rpm
Inner diameter :
Ø38mm
External Diameter :
Ø80mm
Contact Material :
Precious Metal
Housing Material :
Aluminum Alloy
Lead wire size & length :
As customized
Description

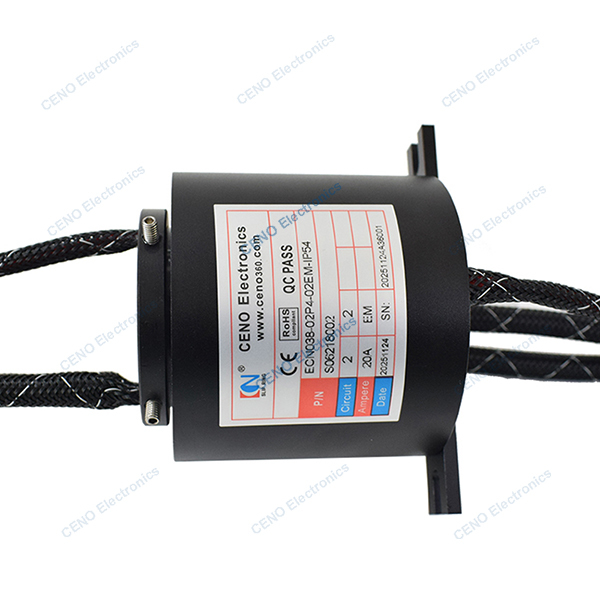

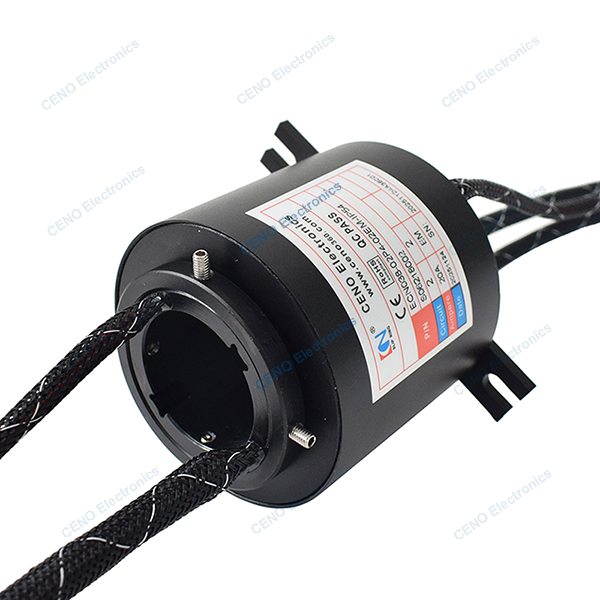

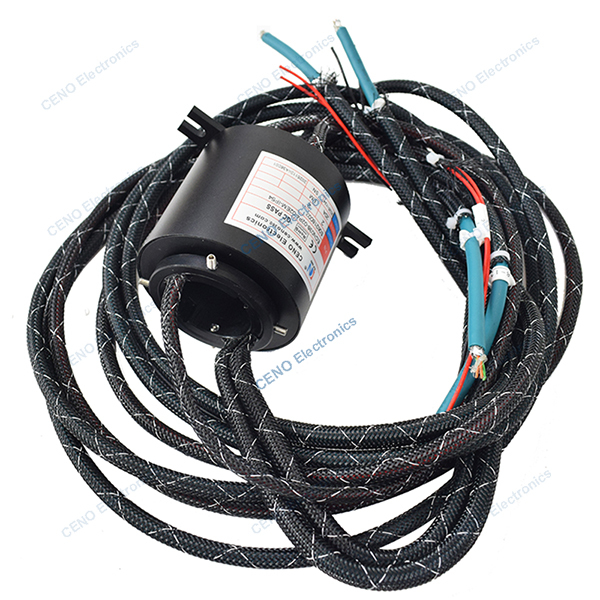

Low Temperature Slip Ring with Through hole Electric Power and Ethernet Signal

ECN038-02P4-02EM-IP54 is CENO low temperature slip ring with protection grade IP54 and through hole 38mm. Low-temperature slip rings are a special customized version of electrical slip rings. Their core function is to maintain stable electrical power/signal transmission under extreme low-temperature conditions. They are specifically designed to meet the rotating electrical conductivity requirements of cold environments or cryogenic equipment. Please contact us get more information.

Features

  • Through hole 3mm-980mm optional
  • Circuits 1 - 300 circuits are option
  • Suit low temperature-60°C~+70°C , can be integrate various signal /data
  • Install easy & Free maintenance

Applications

  • Aerospace
  • Turntable testing machine
  • Polar engineering
  • Low-temperature testing platforms
  • Table of astronomical telescopes

Optional

  • Circuit, Voltage, Current
  • Structure & sealing type
  • Materials & wires
  • Protection grade
  • Working speed & temperature

Specification

ECN038-02P4-02EM-IP54 Specification
Current & Circuits 2 circuits * 20A; 2 group * 100M Ethernet
Rating Voltage 0 ~ 240 VAC/VDC
Dielectric strength ≥1000VAC@50Hz; ≥300VAC@50Hz
Isolation resistance ≥500MΩ@500VDC; ≥100MΩ@300VDC
Contact resistance wave ≤ 30mΩ
Working temperature -60°C~+70°C
Working humidity 95±4 %RH
IP protection grade IP54
Operating speed 0~300rpm
Inner diameter Ø38mm
Outer diameter Ø80mm
Contact material Precious Metal
Housing material Aluminium Alloy
Lead wire size & length As customized

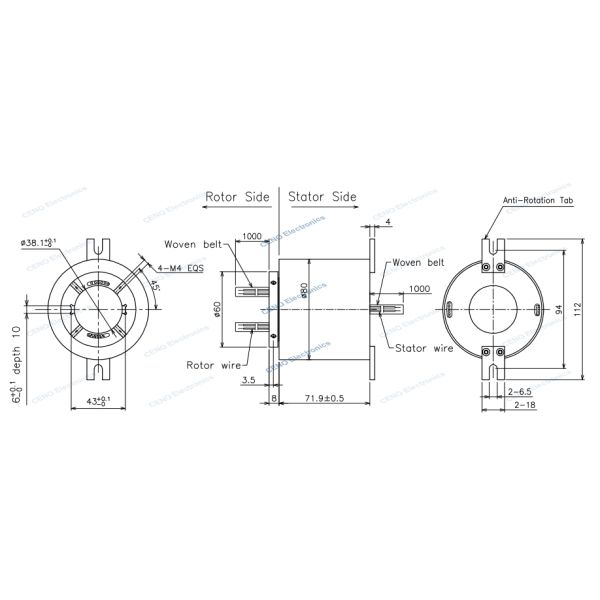

Outline drawing

Low Temperature Slip Ring with Through hole Electric Power and Ethernet Signal

Application

Low Temperature Slip Ring with Through hole Electric Power and Ethernet Signal

Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

Low Temperature Slip Ring with Through hole Electric Power and Ethernet Signal

Certification

ISO9001,CE,RoHS,UL,Explosion-proof

Low Temperature Slip Ring with Through hole Electric Power and Ethernet Signal

CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
