Carbon Brush Slip Ring with 60mm Through Hole 8 Circuits and 25A Current for Industrial Applications
Carbon Brush Slip Ring with 60mm Through Hole 8 Circuits and 25A Current for Industrial Applications
Carbon Brush Slip Ring with 60mm Through Hole 8 Circuits and 25A Current for Industrial Applications
Carbon Brush Slip Ring with 60mm Through Hole 8 Circuits and 25A Current for Industrial Applications
Carbon Brush Slip Ring with 60mm Through Hole 8 Circuits and 25A Current for Industrial Applications
Carbon Brush Slip Ring with 60mm Through Hole 8 Circuits and 25A Current for Industrial Applications
Specifications
Brand Name :
CENO
Model Number :
ECN060-C-08P4
Certification :
CE,RoHS,ISO9001,UL
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T,Paypal,Western Union
Supply Ability :
500pcs per month
Delivery Time :
1 week
Packaging Details :
Carton/As request
Current & Circuits :
8 circuits * 25A
Rating Voltage :
0 ~ 230 VAC/VDC
Dielectric strength :
≥1000VAC@50Hz
Isolation resistance :
≥500MΩ@500VDC
Contact resistance :
≤ 30mΩ
Operating speed :
0~200rpm
Description
Carbon Brush Slip Ring with Through Hole 60mm and optional Circuits Current and Voltage

ECN060-C-08P4 is CENO carbon brush slip ring with 8 circuits electric power. CENO Electronics possesses extensive experience in the design and manufacturing of high-current central collectors, we fully guarantee the overload current capacity of every circuit loop, thereby ensuring the long-term stability of current transmission. In terms of product dimensions, we adhere to a design philosophy that prioritizes compactness and precision. For more information please contact us.

Specification
ECN060-C-08P4 Specification
Current & Circuits 8 circuits * 25A
Rating Voltage 0 ~ 230 VAC/VDC
Dielectric strength ≥ 1000VAC@50Hz
Isolation resistance ≥ 500MΩ@500VDC
Contact resistance wave ≤ 30mΩ
Working temperature -20°C~+60°C
Working humidity 60 %RH
IP protection grade IP00
Operating speed 0~200rpm
Inner diameter Ø60mm
Contact material Copper-Graphite
Housing material Aluminium Alloy
Features
  • Excellent weather resistance, high electrical safety, binding post connect, easy to connect
  • Current 1 - 2000A optional
  • Voltage 24 - 200000V optional
Applications
  • Automatic machine
  • Material handling equipment
  • Engineering machinery
  • mining equipment
  • Engineering equipment
Optional Configurations
  • Circuit, Voltage, Current
  • Contact / Housing Materials
  • Protection grade
  • Working speed & temperature
  • Diameter & Structure

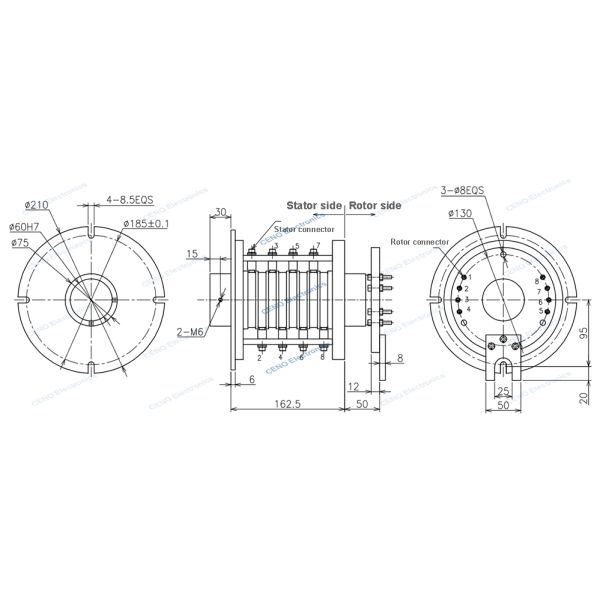

Outline Drawing
Why Choose CENO
Carbon Brush Slip Ring with 60mm Through Hole 8 Circuits and 25A Current for Industrial Applications

CENO is a technological company in the slip ring field engaged in research and development, manufacturing, and sales. We have advanced equipment and high precision test instruments to ensure product quality and reliable performance. Our facility covers 3000 square meters and is located in Shenzhen, China.

Carbon Brush Slip Ring with 60mm Through Hole 8 Circuits and 25A Current for Industrial Applications
Certification

ISO9001, CE, RoHS, UL, Explosion-proof

Carbon Brush Slip Ring with 60mm Through Hole 8 Circuits and 25A Current for Industrial Applications
CENO Advantage

Our engineering team members have more than 10 years of experience in slip ring technology. Operators working on critical procedures are all qualified through internal training.

Services Provided
  • 24 hours, 7 days consultant service
  • Mass and customized production
  • Solution offering for 360° rotation systems

Welcome to consult us with your requests for any 360° rotation system. We will provide one-stop service and respond to your inquiries promptly.
