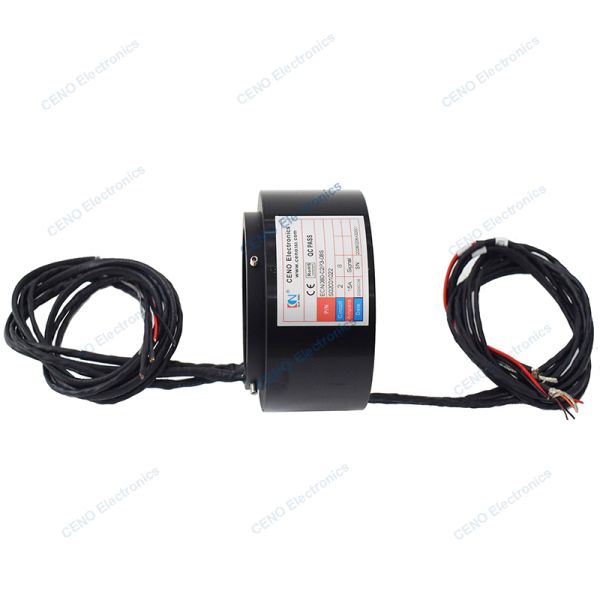

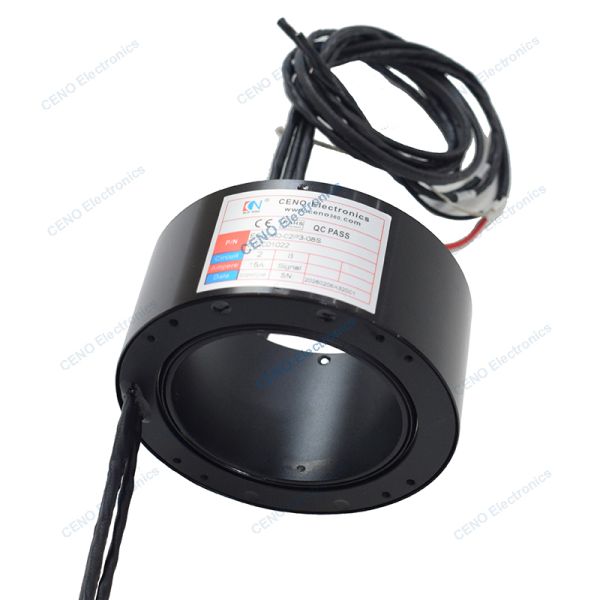

Low Temperature Through Hole Slip Ring with Electric Power and Signal for Industry Robotic
Low Temperature Through Hole Slip Ring with Electric Power and Signal for Industry Robotic
Low Temperature Through Hole Slip Ring with Electric Power and Signal for Industry Robotic
Low Temperature Through Hole Slip Ring with Electric Power and Signal for Industry Robotic
Specifications
Brand Name :
CENO
Model Number :
ECN080-02P3-08S
Certification :
CE,RoHS,ISO9001,UL
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T,Paypal,Western Union
Supply Ability :
500pcs per month
Delivery Time :
1 week
Packaging Details :
Carton/As request
circuit & current :
2 circuits * 15A; 8 circuits * Signal
Voltage :
0 ~ 48 VAC/VDC
Contact resistance wave :
≤ 30mΩ
Dielectric strength :
≥500VAC@50Hz
Isolation resistance :
≥500MΩ@500VDC
Rotating speed :
0-60rpm
Outer diameter :
120mm
Housing material :
Aluminium Alloy
Contact material :
Precious Metal
Lead wire size & length :
As customized
IP grade :
IP54
Working humidity :
60%RH
Working temperature :
-30°C~+80°C
Description
Low Temperature Through Hole Slip Ring with Electric Power and Signal for Industry Robotic

ECN080-02P3-08S is CENO Low temperature slip ring with through hole 80mm combine circuits electric power and signals. In order to achieve the corresponding level of high and low temperature resistance, these conductive slip rings are much stricter than ordinary conductive slip rings in the material selection of key components such as shells, bearings, and brush filaments. Of course, their mechanism design is also different from ordinary slip rings. For more information please contact us


Specification

ECN080-02P3-08S Specification

Current & Circuits

2 circuits * 15A; 8 circuits * Signal

Rating Voltage

0 ~ 48 VAC/VDC

Dielectric strength

≥500VAC@50Hz

Isolation resistance

≥500MΩ@500VDC

Contact resistance wave

≤ 30mΩ

Working temperature

-40°C~+80°C

Working humidity

60 %RH

IP protection grade

IP54

Operating speed

0~60rpm

Inner diameter

Ø180mm

Contact material

Precious Metal

Housing material

Aluminium Alloy

Lead wire size & length

Customized

Features
  • Flange design for easy installation
  • Circuits 1 - 300 circuits are optional
  • Can integrate signals as RF, fiber optics, HDMI, USB, Hydraulic/Pneumatic
  • Easy installation & free maintenance
Applications
  • Automatic machine
  • Automotive Test Bench
  • Turntable testing machine
  • Industry robotic
  • Medical Equipment
Optional Configurations
  • Circuit, Voltage, Current
  • Wire size, length & connector
  • Contact / Housing Materials
  • Protection grade
  • Working speed & temperature

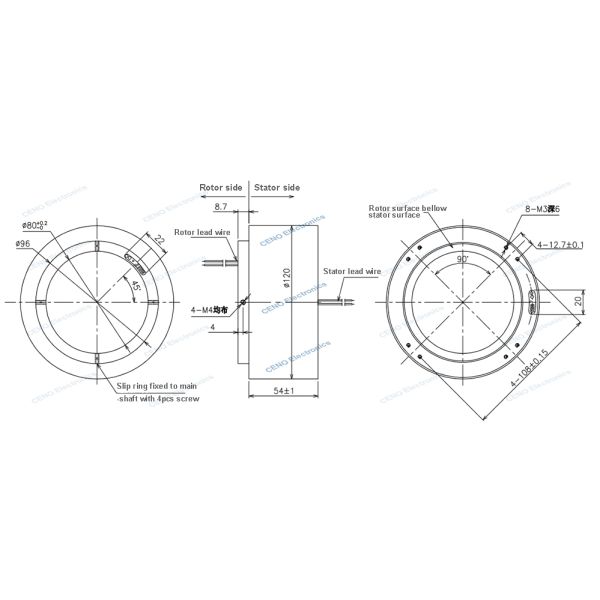

Outline Drawing
Low Temperature Through Hole Slip Ring with Electric Power and Signal for Industry Robotic

Why Choose CENO

CENO is a technological company in the slip ring field engaged in research and development, manufacturing, and sales. We have advanced equipment and high precision test instruments to ensure product quality and reliable performance. Our facility covers 3000 square meters and is located in Shenzhen, China.

Low Temperature Through Hole Slip Ring with Electric Power and Signal for Industry Robotic
Certification

ISO9001, CE, RoHS, UL, Explosion-proof

Low Temperature Through Hole Slip Ring with Electric Power and Signal for Industry Robotic
CENO Advantage

Our engineering team members have more than 10 years of experience in slip ring technology. Operators working on critical procedures are all qualified through internal training.

Services Provided
  • 24 hours, 7 days consultant service
  • Mass and customized production
  • Solution offering for 360° rotation systems

Welcome to consult us with your requests for any 360° rotation system. We will provide one-stop service and respond to your inquiries promptly.
