High Speed Integrate FORJs Slip Ring with HDMI and Fiber Optic Rotary Joint
High Speed Integrate FORJs Slip Ring with HDMI and Fiber Optic Rotary Joint
High Speed Integrate FORJs Slip Ring with HDMI and Fiber Optic Rotary Joint
High Speed Integrate FORJs Slip Ring with HDMI and Fiber Optic Rotary Joint
Specifications
Brand Name :
CENO
Model Number :
ECN000-01S-01F-D
Certification :
CE,RoHS,ISO9001,UL
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T,Paypal, Western Union
Supply Ability :
1000pcs per month
Delivery Time :
1 weeks
Packaging Details :
Cartons/As request
Channels & Circuits :
1 channel * FORJs; 1 circuit * HDMI
Rating Voltage :
0 ~ 48VAC/VDC
Dielectric strength :
≥100VAC@50Hz
Isolation resistance :
≥10MΩ@100VDC
Contact resistance :
≤ 70mΩ
Materials :
Precious metal / Aluminum Alloy
Working temperature :
-20°C~+60°C
Working humidity :
60 %RH
IP protection grade :
IP51
Operating speed :
0~6000rpm
Outer diameter :
Ø40mm
Installation way :
Flange installation
Description

High Speed Integrate FORJs Slip Ring with HDMI and Fiber Optic Rotary Joint

ECN000-01S-01F-D is CENO Integrate Slip Ring combined 1 circuit HDMI signal and 1 channel fiber optic rotary joint, that can be continuous rotating within speed of 6000rpm. CENO high-speed slip rings utilize advanced technology to ensure high concentricity. Special structural treatments are employed at the stator - rotor contact point to ensure stable performance at high speeds. Primarily used in systems such as high-speed rail inspection, non-destructive testing equipment, and eddy current testing.

Features

1 1-50 channels forjs are optional

2 Working speed cab be to 20000rpm

3 Not-contact technology and stable transmitting, no string code

4 Install easy & Free maintenance

Applications

1 Security camera

2 Medical equipment

3 Eddy current testing

4 Non-destructive testing

5 Optic hydrophone

Optional

1 Circuit, Voltage, Channels

2 Wire length & size

3 Contact / Housing Materials

4 Protection grade

5 Working speed & temperature



Specification

ECN000-01S-01F-D Specification
Channel & Circuits 1 Channel * FORJs; 1 circuit * HDMI
Rating Voltage 0 ~ 48 VAC/VDC
Dielectric strength ≥100VAC@50Hz
Isolation resistance ≥10MΩ@100VDC
Contact resistance wave ≤ 70mΩ
Working temperature -20°C~+60°C
Working humidity 60 %RH
IP protection grade IP51
Operating speed 0~6000 rpm
Outer diameter Ø 40mm
Contact material Precious Metal
Housing material Aluminium Alloy
Lead wire size & length

Customized

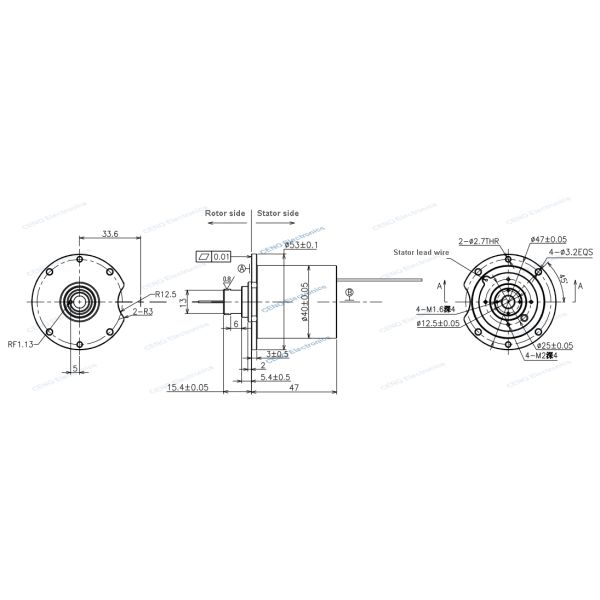

Outline drawing

High Speed Integrate FORJs Slip Ring with HDMI and Fiber Optic Rotary Joint


CENO Power/Signal + Fiber Opticrotary joint product series

Integrated slip ring is CENO non-standard series.POWER/SIGNAL + FIBER OPTIC ROTARY JOINT design according to special application, to integrates the current, signal circuits and optical fiber joint. Its current could up to several hundred amperes and its signal could cover all kind of signal type base on relevant application. Optical fiber joint include sigell-mode and multimode with diverious channel from signal channel to dozens of channel. This kind of integrated slipring gets well performance and various function, then it is widely used in option electric crane.
