Low Temperature Industrial Slip Ring with 16 Circuits and Flange Design for Robotic Arm
Low Temperature Industrial Slip Ring with 16 Circuits and Flange Design for Robotic Arm
Low Temperature Industrial Slip Ring with 16 Circuits and Flange Design for Robotic Arm
Low Temperature Industrial Slip Ring with 16 Circuits and Flange Design for Robotic Arm
Low Temperature Industrial Slip Ring with 16 Circuits and Flange Design for Robotic Arm
Low Temperature Industrial Slip Ring with 16 Circuits and Flange Design for Robotic Arm
Specifications
Brand Name :
CENO
Model Number :
ECN000-16P1
Certification :
CE,RoHS,ISO9001,UL
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T,Paypal,Western Union
Supply Ability :
500pcs per month
Delivery Time :
1 week
Packaging Details :
Carton/As request
circuit & current :
16 * 5A; 4 * Shielded wire
Voltage :
0 ~ 60 VAC/VDC
Contact resistance wave :
≤ 10mΩ
Dielectric strength :
≥100VAC@50Hz
Isolation resistance :
≥100MΩ@120VDC
Rotating speed :
0-250rpm
Outer diameter :
86mm
Housing material :
Aluminium Alloy
Contact material :
Precious Metal
Lead wire size & length :
As customized
IP grade :
IP51
Working humidity :
60%RH
Working temperature :
-30°C~+80°C
Description
Low Temperature Industrial Slip Ring with Electric Power for Robotic Arm

ECN000-16P1 is CENO Industry Slip Ring with electric power circuits designed for low temperature environments from -30°C to +80°C for industrial systems. The main function of industrial slip rings is to provide continuous and stable power and signal transmission for rotating bodies. The slip ring ensures unobstructed transmission of power and data signals during equipment rotation by connecting the rotating and stationary parts.

Specification
Parameter Specification
Current & Circuits 16 × 5A; 4 × Shielded wire
Rating Voltage 0 ~ 60 VAC/VDC
Dielectric strength ≥100VAC@50Hz
Isolation resistance ≥100MΩ@120VDC
Contact resistance wave ≤ 10mΩ
Working temperature -30°C ~ +80°C
Working humidity 60 %RH
IP protection grade IP51
Operating speed 0 ~ 250rpm
Outer diameter Ø86mm
Contact material Precious Metal
Housing material Aluminium Alloy
Lead wire size & length As customized
Features
  • Flange design for easy installation
  • Circuits 1 - 300 circuits are optional
  • Can integrate signals as RF, fiber optics, HDMI, USB, Hydraulic/Pneumatic
  • Easy installation & free maintenance
Applications
  • Automatic machine
  • Automotive Test Bench
  • Turntable testing machine
  • Industry robotic
  • Medical Equipment
Optional Configurations
  • Circuit, Voltage, Current
  • Wire size, length & connector
  • Contact / Housing Materials
  • Protection grade
  • Working speed & temperature

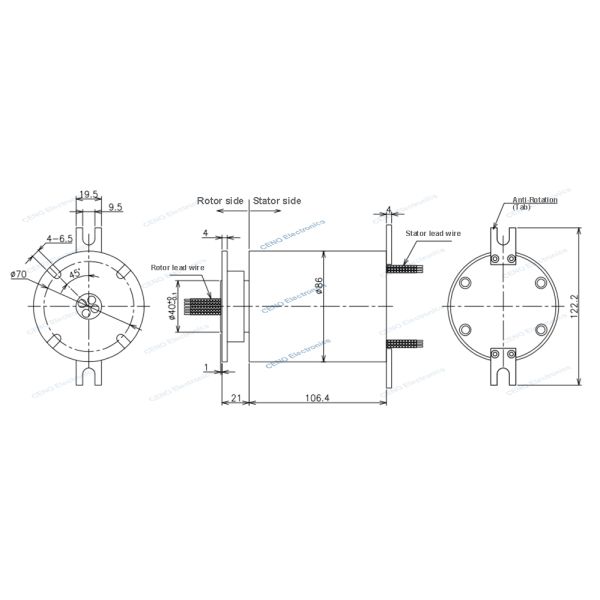

Outline Drawing
Low Temperature Industrial Slip Ring with 16 Circuits and Flange Design for Robotic Arm
Why Choose CENO

CENO is a technological company in the slip ring field engaged in research and development, manufacturing, and sales. We have advanced equipment and high precision test instruments to ensure product quality and reliable performance. Our facility covers 3000 square meters and is located in Shenzhen, China.

Low Temperature Industrial Slip Ring with 16 Circuits and Flange Design for Robotic Arm
Certification

ISO9001, CE, RoHS, UL, Explosion-proof

Low Temperature Industrial Slip Ring with 16 Circuits and Flange Design for Robotic Arm
CENO Advantage

Our engineering team members have more than 10 years of experience in slip ring technology. Operators working on critical procedures are all qualified through internal training.

Services Provided
  • 24 hours, 7 days consultant service
  • Mass and customized production
  • Solution offering for 360° rotation systems

Welcome to consult us with your requests for any 360° rotation system. We will provide one-stop service and respond to your inquiries promptly.
