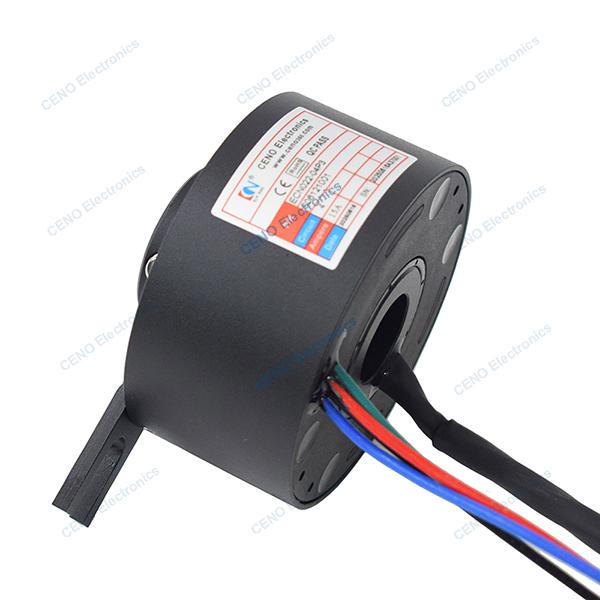

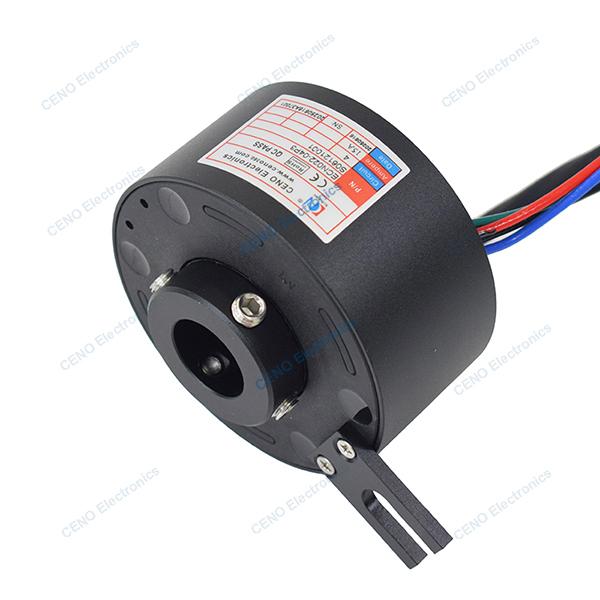

Through Bore Slip Ring with hollow shaft electric power for industry system

ECN022-04P3 is CENO industry slip ring with through hole 22mm and 4 circuits 15A current for automatic machinery. Industry slip ring mainly used in industrial machinery and industrial robot system, support electrical power, signal and data continuous rotating and transmitting form the fixed position to the rotating position through the contact between brush and loop. Precious metal contact material can increase the service lift. For more information please contact us.

Specification

Features

• Through hole 3mm-980mm optional
• Circuits 1 - 300 circuits are option
• Stable transmitting, no string code, can be integrate various signal /data
• Install easy & Free maintenance

Applications

• Automatic machine
• Turntable testing machine
• Packing equipment
• Filling machinery
• Medical equipment

Optional

• Circuit, Voltage, Current
• Signals and data
• Contact / Housing Materials
• Protection grade
• Working speed & temperature

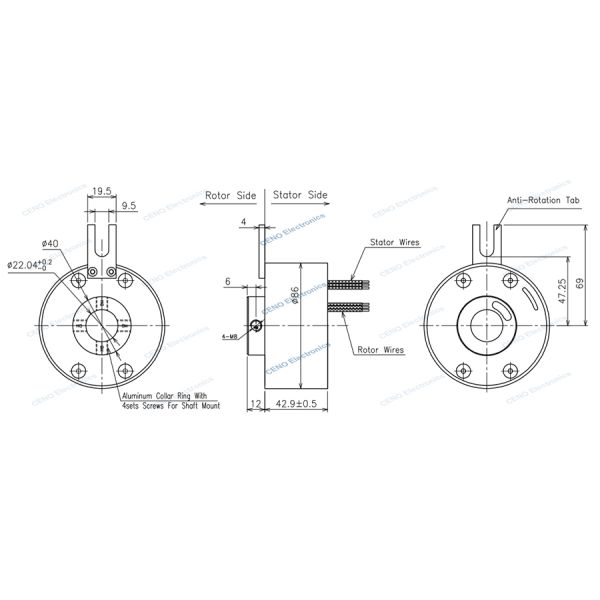

Outline Drawing

Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

Certification

ISO9001,CE,RoHS,UL,Explosion-proof

CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
