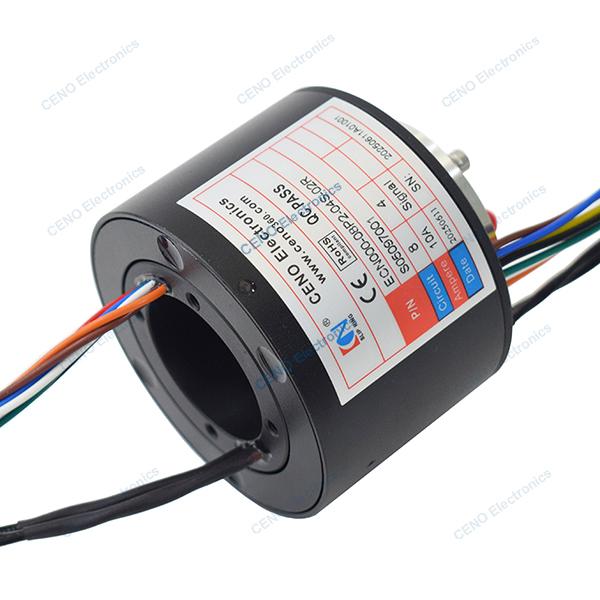

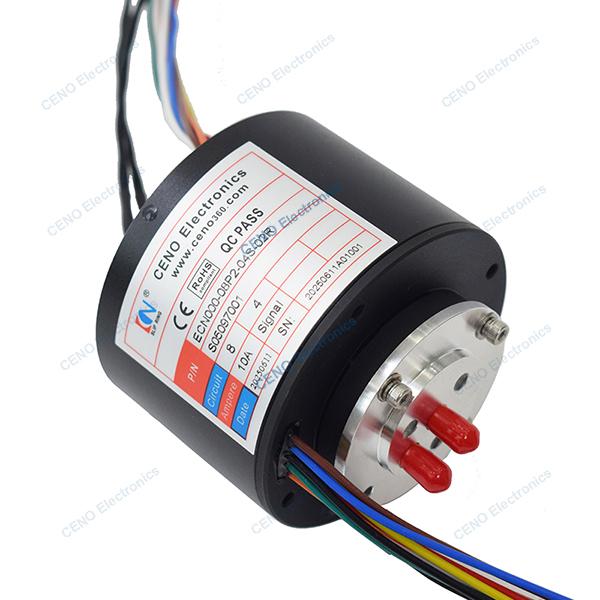

Integrate electric power & radio frequency slip ring with rf rotary joint
Integrate electric power & radio frequency slip ring with rf rotary joint
Integrate electric power & radio frequency slip ring with rf rotary joint
Integrate electric power & radio frequency slip ring with rf rotary joint
Specifications
Brand Name :
CENO
Model Number :
ECN000-08P2-04S-02R
Certification :
ISO9001,CE,RoHS,UL
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T,Paypal,, Western Union
Supply Ability :
500pcs per month
Delivery Time :
1 week
Packaging Details :
Carton
Channels :
2 channels * SMA-f radio frequency
Interface :
SMA-f
Frequency :
DC to 4.5GHz
VSWR (max) :
1.2; 1.6
VSWR Varies (max) :
0.1; 0.2
Insert loss (max) :
0.3dB; 0.5dB
Insert loss varies (max) :
0.1dB; 0.2dB
Average power :
50w; 50w
Peak power :
1000w; 1000w
Current & Circuits :
8 * 10A; 4 * Signal
Rating Voltage :
0 ~ 440VAC/VDC
Dielectric strength :
≥1000VAC@50Hz; ≥300VAC@50Hz
Isolation resistance :
≥500MΩ@300VDC; ≥100MΩ@300VDC
IP protection grade :
IP54
Operating speed :
0~250 rpm
Working temperature :
-40°C~+80°C
Description

Integrate electric power & radio frequency slip ring with rf rotary joint

ECN000-08P2-04S-02R is CENO integrate slip ring combined circuits electric power and 2 channels RF signal that can be used in medical equipment - CT Scan machine. CENO works with many CT system manufacture to provide reliable large diameter slip ring solutions. Our experienced engineers work with you every step of the way to ensure that your integrate RF slip ring is tailored to your specifications and performance needs. Mobile base stations Satellite communications Weather radar Autonomous driving sensors Internet of Things


Specification

ECN000-08P2-04S-02R Specification
Current & Circuits 8 circuits * 10A; 4 circuits * Signal
Rating Voltage 0 ~ 440 VAC/VDC
Dielectric strength ≥1000VAC@50Hz; ≥300VAC@50Hz
Isolation resistance ≥500MΩ@300VDC; ≥100MΩ@300VDC
Contact resistance wave ≤ 10mΩ
Working temperature -40°C~+80°C
Working humidity 90 %RH
IP protection grade IP54
Operating speed 0~250rpm
Outer diameter Ø80mm
Contact material Precious Metal
Housing material Aluminium Alloy
Lead wire size As customized
Lead wire length As customized
High Radio frequency Channel 1 Channel 2
Connector type SMA-f (50Ω) SMA-f (50Ω)
Frequency range DC to 4.5GHz DC to 4.5GHz
Wave ratio max 1.2 1.6
Wave ratio floating max 0.1 0.2
Insertion loss max 0.3dB 0.5dB
Insertion loss wow max 0.1dB 0.2dB
Peak power 1000w 1000w
Average power 50w @ 1GHz 50w @ 1GHz

Features

  • Low maintenance and long life
  • Low audible noise for overall quieter mechanical system operation
  • High circuit density compact design
  • Install easy & Free maintenance

Applications

  • Wireless communications
  • Satellite communications
  • Weather radar
  • Autonomous driving sensors
  • Medical equipment

Optional

  • Circuits, Voltage, Current
  • Channels & connector type
  • Contact / Housing Materials
  • Protection grade
  • Working speed & temperature


Outline drawing

Integrate electric power & radio frequency slip ring with rf rotary joint





Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

Integrate electric power & radio frequency slip ring with rf rotary joint

Certification

ISO9001,CE,RoHS,UL,Explosion-proof

CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
