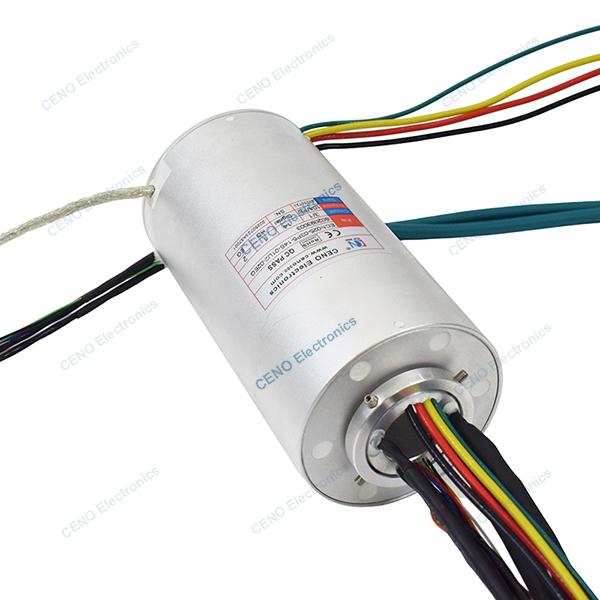

Low temperature water-proof slip ring with electric power Ethernet USB & RS232
Low temperature water-proof slip ring with electric power Ethernet USB & RS232
Low temperature water-proof slip ring with electric power Ethernet USB & RS232
Low temperature water-proof slip ring with electric power Ethernet USB & RS232
Low temperature water-proof slip ring with electric power Ethernet USB & RS232
Low temperature water-proof slip ring with electric power Ethernet USB & RS232
Specifications
Brand Name :
CENO
Model Number :
ECN025-03P5-14S-01U2-02EG
Certification :
CE,RoHS,ISO9001,UL
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T,Paypal, Western Union
Supply Ability :
1000pcs per month
Delivery Time :
1 weeks
Packaging Details :
Cartons/As request
Circuits & current :
3*30A; 1*PE; 8* Signal; 2*1000M Ethernet; 2 * RS232; 1 * USB2.0
Rating Voltage :
0~380VAC/VDC
Dielectric strength :
≥1000VAC@50Hz; ≥500VAC@50Hz
Isolation resistance :
≥500MΩ@500VDC; ≥300MΩ@100VDC
Contact resistance wave :
≤ 70mΩ
Working temperature :
-55°C~+80°C
Working humidity :
60 %RH
IP protection grade :
IP65
Operating speed :
0-300rpm
Housing material :
Aluminium alloy
Application :
Motion simulator,Automation equipment
Contact materials :
Precious metal
Through hole size :
25mm
Outer diameter :
86m
Description

Low temperature water-proof slip ring with electric power Ethernet USB & RS232

ECN025-03P5-14S-01U2-02EG is CENO low temperature slip ring with water-proof ip65. A low temperature slip ring is a conductive slip ring specially designed to operate in low temperature environments. Its core function is the same as that of an ordinary slip ring: transmitting current, signals (including high-frequency signals), data, and even liquids/gases between a fixed structure and a rotating structure while maintaining continuous 360-degree rotation. For more information please contact us.

Features

  • Select special materials with good toughness and strength
  • Stale insulation performance at low temperature & no brittle cracking
  • Install easy & Free maintenance

Applications

  • Robots in low-temperature
  • Liquefied natural gal industry
  • Superconducting equipment
  • Cryogenic vacuum equipment
  • Aerospace remote sensors

Optional

  • Circuit, Voltage, Current
  • Signals and data
  • Contact / Housing Materials
  • Protection grade
  • Working speed & temperature

Specification

ECN025-03P5-14S-01U2-02EG Specification
Current & Circuits 3*30A; 1*PE; 8* Signal; 2*1000M Ethernet; 2 * RS232; 1 * USB2.0
Rating Voltage 0 ~ 380 VAC/VDC
Dielectric strength ≥1000VAC@50Hz; ≥500VAC@50Hz
Isolation resistance ≥500MΩ@500VDC; ≥300MΩ@100VDC
Contact resistance wave ≤ 70mΩ
Working temperature -55°C~+80°C
Working humidity 60 %RH
IP protection grade IP65
Operating speed 0~300rpm
Inner diameter Ø25.4mm
Outer diameter Ø86mm
Contact material Gold-to-Gold; Precious metal
Housing material Aluminium Alloy
Lead wire size As customized
Lead wire length As customized

Outline drawing

Low temperature water-proof slip ring with electric power Ethernet USB & RS232


Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

Low temperature water-proof slip ring with electric power Ethernet USB & RS232

Certification

ISO9001,CE,RoHS,UL,Explosion-proof

Low temperature water-proof slip ring with electric power Ethernet USB & RS232

CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Low temperature water-proof slip ring with electric power Ethernet USB & RS232

Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
