2 Channels Radio Frequency Rotary Joint with RF Slip Ring suit Low Temperature
2 Channels Radio Frequency Rotary Joint with RF Slip Ring suit Low Temperature
2 Channels Radio Frequency Rotary Joint with RF Slip Ring suit Low Temperature
2 Channels Radio Frequency Rotary Joint with RF Slip Ring suit Low Temperature
2 Channels Radio Frequency Rotary Joint with RF Slip Ring suit Low Temperature
2 Channels Radio Frequency Rotary Joint with RF Slip Ring suit Low Temperature
Specifications
Brand Name :
CENO
Model Number :
RCN02-31-02
Certification :
ISO9001,CE,RoHS,UL
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T,Paypal,, Western Union
Supply Ability :
500pcs per month
Delivery Time :
1 week
Packaging Details :
Carton
Channels :
2 channels * SMA
Frequency :
29-31GHz; DC-2GHz
Peak Power,max :
50W; 30W
Average Power,max :
25W; 10W
VSWR,max :
1.6; 1.5
VSWR-wow,max :
0.15; 0.2
DC Load Capacity :
50V@1A
Insolation,min :
50dB
Rotating Speed,max :
60rpm
Life Time,min :
5 million
Starting Torque :
≤0.3Nm
Temperature :
-40℃ ~ + 70℃(W); -55℃ ~ + 85℃(S)
Humidity :
95%
IP Protection grade :
IP41
Description

2 Channels Radio Frequency Rotary Joint with RF Slip Ring suit Low Temperature

RCN02-31-02 is CENO 2 channels coaxial Radio Frequency Rotary Joint with frequency range DC-2GHz and 29-31GHz. RF rotary joints are used in continuous rotation applications to transmit high-frequency and high-speed signals between stationary and rotating components. RF rotary joints feature a compact structure, stable performance, excellent shielding, strong anti-interference capabilities, and ease of integration for different application. For more information please contact us.


Specification

RCN02-31-02 Specification
Channels CH1 (TX) CH2 (TX)
Interface type SMA 2.92-K(50Ω) SMA (50Ω)
Frequency range 29-31GHz DC-2GHz
Peak Power,max 50W 30W
Average Power,max 25W 10W
VSWR,max 1.6 1.5
VSWR-wow,max 0.15 0.2
Insertion Loss,max 0.8dB 0.6dB
Insertion Loss- wow,max 0.1dB 0.1dB
DC Load Capacity 50V@1A
Insolation,min 50dB
Rotating Speed,max 60rpm
Life Time,min 5 million
Starting Torque ≤0.3Nm
Temperature -40℃ ~ + 70℃(W); -55℃ ~ + 85℃(S)
Humidity 95%
IP Protection grade IP41
Surface treatment Conductive oxidation
Body Material Aluminium alloy
Altitude Up to 3Km
Shock / Vibration Per RTCA DO-160G (TBD), standard for airborne systems

Features

  • Integrate design combine power signal and 4 channels RF joint
  • Simply system structure & optimize wire & suit low temperature
  • Install easy & Free maintenance

Applications

  • Defense & aerospace
  • High-end industry automation
  • Industrial robot
  • Satellite communication table
  • Medical equipment

Optional

  • Circuit, Voltage, Current
  • Channels & Frequency range
  • Contact / Housing Materials
  • Connector type & IP Grade
  • Working speed & temperature

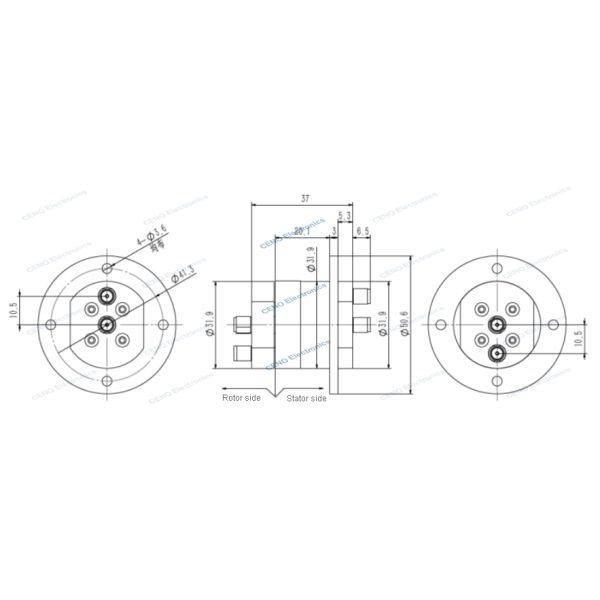

Outline drawing

2 Channels Radio Frequency Rotary Joint with RF Slip Ring suit Low Temperature





Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

2 Channels Radio Frequency Rotary Joint with RF Slip Ring suit Low Temperature

Certification

ISO9001,CE,RoHS,UL,Explosion-proof

CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
