Integrate power and forj slip ring with 2 channel fiber optic rotary joint
Integrate power and forj slip ring with 2 channel fiber optic rotary joint
Integrate power and forj slip ring with 2 channel fiber optic rotary joint
Integrate power and forj slip ring with 2 channel fiber optic rotary joint
Integrate power and forj slip ring with 2 channel fiber optic rotary joint
Integrate power and forj slip ring with 2 channel fiber optic rotary joint
Specifications
Brand Name :
CENO
Model Number :
ECN000-03P4-02F-IP65
Certification :
CE,RoHS,ISO9001,UL
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T,Paypal, Western Union
Supply Ability :
1000pcs per month
Delivery Time :
1 weeks
Packaging Details :
Cartons/As request
Channels & Circuits :
2 channels * SM ; 3 circuits * 20A
Connector :
SM
Wave length :
1310~1550nm
Insert loss :
＜3.5dB
Return loss :
>45dB
Rating Voltage :
0 ~ 1000 VAC/VDC
Dielectric strength :
≥1500VAC@50Hz
Isolation resistance :
≥500MΩ@500VDC
Contact resistance :
≤ 30mΩ
Materials :
Precious metal / Aluminum Alloy
Working temperature :
-20°C~+60°C
Working humidity :
60 %RH
IP protection grade :
IP65
Operating speed :
0~100rpm
Outer diameter :
Ø86mm
Installation way :
Flange installation
Description

Integrate power and forj slip ring with 2 channel fiber optic rotary joint

ECN000-03P4-02F-IP65 is CENO integrate slip ring combine 3 circuits 20A power and 2 channels fiber optic rotary joints that suit for medical equipment, radar system and material conveying system etc. CENO integrate forjs slip rings is a customized non-standards series, designed for different special applications, supports multi-channel and multi-specification customization to meet various complex operating environments. For more information please contact us.

Features

  • Integrate power signal and forjs and most parameters are optional
  • Stable transmitting, no string code, can be integrate various signal /data
  • Install easy & Free maintenance

Applications

  • Automatic machine
  • Photo electric Pod
  • Radar antenna
  • Robotics
  • Medical equipment

Optional

  • Circuit, Voltage, Current
  • Channels & fiber type
  • Wavelength and signal type
  • Protection grade & materials
  • Working speed & temperature




Specification

ECN000-03P4-02F-IP65 Specification
Current & Circuits 3 circuits * 20A
Rating Voltage 0 ~ 1000 VAC/VDC
Dielectric strength ≥1500VAC@50Hz
Isolation resistance ≥500MΩ@500VDC
Contact resistance wave ≤ 30mΩ
Working temperature -20°C~+60°C
Working humidity 60 %RH
IP protection grade IP65
Operating speed 0~100rpm
Outer diameter Ø86mm
Contact material Precious Metal
Housing material Aluminium Alloy
Lead wire size & length As customized
Fiber Optic Rotary Joint
Fiber type SM (9/125um)
Fiber Channel 2
Wavelength 1310~1550nm
Insertion Loss < 3.5dB
Return Loss >45dB
Peak power, max 23dBm
Protection (IP Grade) IP65
Connector LC/ LC

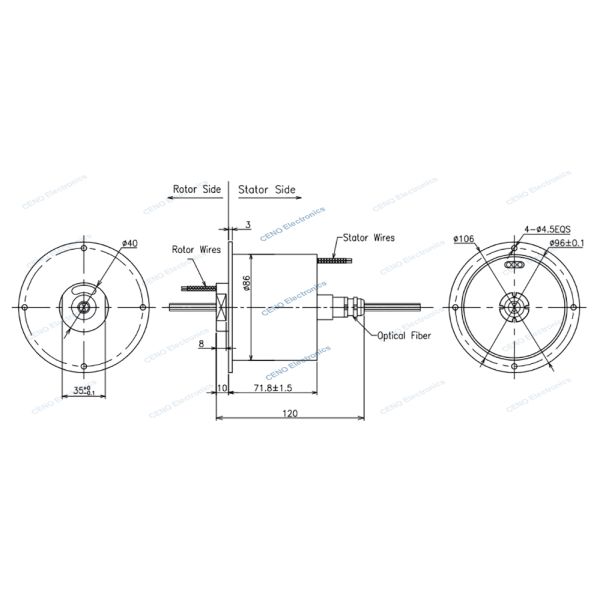

Outline drawing

Integrate power and forj slip ring with 2 channel fiber optic rotary joint


CENO Power/Signal + Fiber Opticrotary joint product series

Integrated slip ring is CENO non-standard series.POWER/SIGNAL + FIBER OPTIC ROTARY JOINT design according to special application, to integrates the current, signal circuits and optical fiber joint. Its current could up to several hundred amperes and its signal could cover all kind of signal type base on relevant application. Optical fiber joint include sigell-mode and multimode with diverious channel from signal channel to dozens of channel. This kind of integrated slipring gets well performance and various function, then it is widely used in option electric crane.
