PCB-style Pancake Slip Ring with electric power and CAN signal for robotic
PCB-style Pancake Slip Ring with electric power and CAN signal for robotic
PCB-style Pancake Slip Ring with electric power and CAN signal for robotic
PCB-style Pancake Slip Ring with electric power and CAN signal for robotic
PCB-style Pancake Slip Ring with electric power and CAN signal for robotic
PCB-style Pancake Slip Ring with electric power and CAN signal for robotic
PCB-style Pancake Slip Ring with electric power and CAN signal for robotic
PCB-style Pancake Slip Ring with electric power and CAN signal for robotic
Specifications
Brand Name :
CENO
Model Number :
PSCN042-02P4-02S
Certification :
CE,RoHS,UL,ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T,Paypal,Western Union
Supply Ability :
10000pcs per month
Delivery Time :
2 weeks
Packaging Details :
Carton/As request
Current & Circuits :
2 circuits * 20A; 2 circuits * Can signal
Rating Voltage :
0~100VAC/VDC
Dielectric strength :
≥300VAC@50Hz
Isolation resistance :
≥100MΩ@100VDC
Electrical noise :
≤30mΩ (50rpm)
Operating speed :
0~80rpm
Contact material :
Precious metal
Materials :
FR-4
Working temperature :
-20°C~+60°C
Working humidity :
60%
IP protection grade :
IP00
Through hole size :
Ø42mm
Outer diameter :
Ø94mm
Lead wire size & length :
As customized
Description

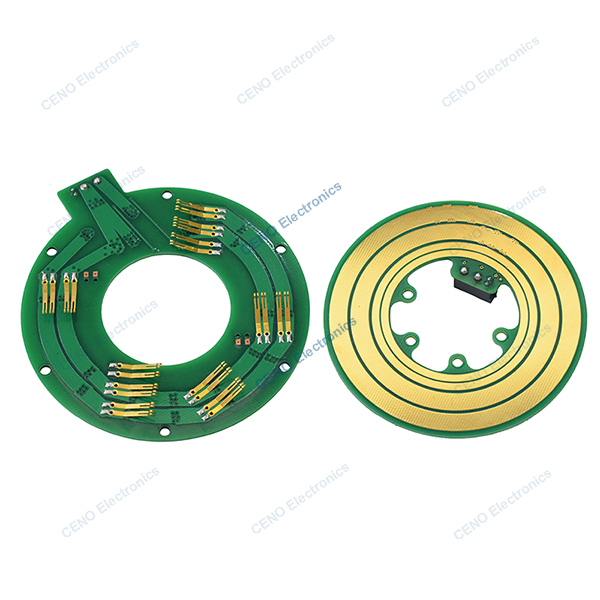

PCB-style Pancake Slip Ring with electric power and CAN signal for Robotic

PSCN042-02P4-02S is CENO Electric power pancake slip ring with inner bore 42mm and option. Compare with cylindrical slip ring, prominent advantage of pancake slip ring is that have ultra-thin compact structure to save axial space, and high stability and vibration resistance to offering better resistance to axial vibration and shock, minimizing contact resistance fluctuations, and ensuring more stable power and signal trans -mission. For more information about how CENO slip ring can fit your application please contact us.

Features

  • Precious contact material to ensure long service life
  • Achieve multifunctional, high-density integrated transmission
  • Install easy & Free maintenance

Applications

  • Automatic machine
  • Turntable testing machine
  • Packing equipment
  • Robot arm or joint
  • Medical equipment

Optional

  • Circuit, Voltage, Current
  • Signals and data
  • Contact / Housing Materials
  • Inner / outer diameter
  • Working speed & temperature




Specification

PSCN042-02P4-02S Specification
Current & Circuits 2 circuits * 20A; 2 circuits * Can signal
Rating Voltage 0 ~ 100 VAC/VDC
Dielectric strength ≥300VAC@50Hz
Isolation resistance ≥100MΩ@100VDC
Contact resistance wave ≤ 30mΩ
Working temperature -20°C~+60°C
Working humidity 60 %RH
IP protection grade IP00
Operating speed 0~80rpm
Inner diameter Ø42mm
Contact material Gold to gold
Housing material FR4



Outline drawing
PCB-style Pancake Slip Ring with electric power and CAN signal for robotic



Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

Certification

ISO9001,CE,RoHS,UL,Explosion-proof

CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
