Opto-Electric Hybrid Slip Ring with 1 fiber & 1 RF coax
Opto-Electric Hybrid Slip Ring with 1 fiber & 1 RF coax
Opto-Electric Hybrid Slip Ring with 1 fiber & 1 RF coax
Opto-Electric Hybrid Slip Ring with 1 fiber & 1 RF coax
Opto-Electric Hybrid Slip Ring with 1 fiber & 1 RF coax
Opto-Electric Hybrid Slip Ring with 1 fiber & 1 RF coax
Opto-Electric Hybrid Slip Ring with 1 fiber & 1 RF coax
Opto-Electric Hybrid Slip Ring with 1 fiber & 1 RF coax
Opto-Electric Hybrid Slip Ring with 1 fiber & 1 RF coax
Opto-Electric Hybrid Slip Ring with 1 fiber & 1 RF coax
Opto-Electric Hybrid Slip Ring with 1 fiber & 1 RF coax
Opto-Electric Hybrid Slip Ring with 1 fiber & 1 RF coax
Specifications
MOQ :
1pcs
Delivery Time :
1 weeks
Number of Circuits/Current :
1 channel × coaxial signal
Cable Lengths :
Rotor side: 60 mm; Stator side: 1000 mm
Price :
Negotiable
Operating Temperature :
-40°C ~ +80°C
Certification :
CE,RoHS,ISO9001,UL
Model Number :
ECN000-01S-01F-B
Dielectric Strength :
≥500 VAC @ 50 Hz between circuits
Place of Origin :
China
Operating Speed :
0～6000 rpm
Payment Terms :
T/T,Paypal,Western Union
Operating Humidity :
Below 60% RH
Operating Voltage :
0~24 VAC/VDC
Cable Specification :
Coaxial cable RG178
Contact Resistance Fluctuation Value :
≤30 mΩ (at 50 rpm)
Supply Ability :
1000pcs per month
Protection Rating :
IP51
Brand Name :
CENO
Insulation Resistance :
≥500 MΩ @ 500 VDC
Contact Material :
Precious metal
Housing Material :
Aluminum alloy
Packaging Details :
Cartons/As request
Description

Opto-Electric Hybrid Slip Ring with 1 fiber & 1 RF coax

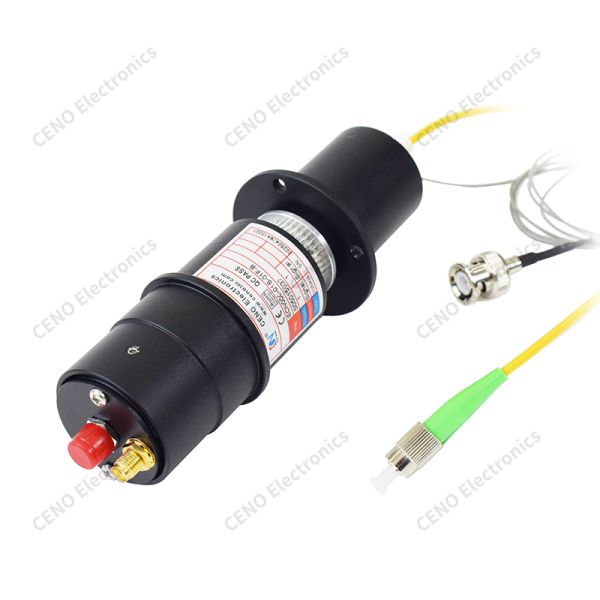

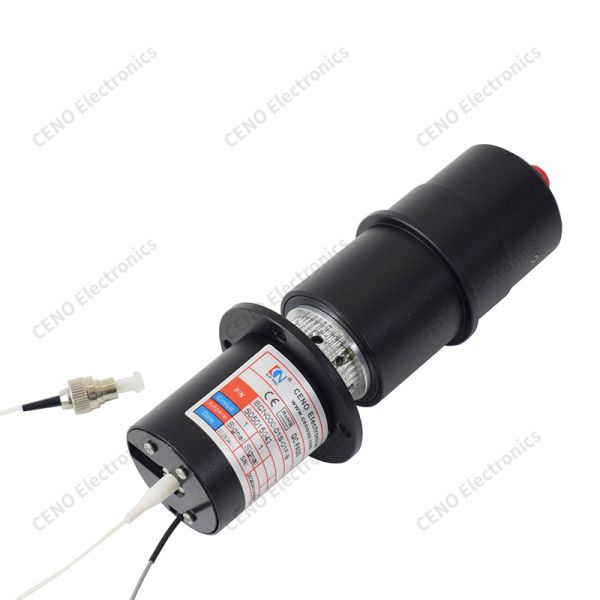

ECN000-01S-01F-B is CENO integrated opto-electric hybrid slip ring combines 1 fiber channel and 1 RF coaxial channel in a single unit, enabling infinite 360° continuous rotation while transmitting optical high-speed data and radio frequency signals simultaneously. It adopts precision rotary coupling structure with fully shielded black anodized aluminum housing, effectively isolating electromagnetic interference. Equipped with standard ST fiber pigtail and coaxial signal wire on stationary flange side, rotary rotor end with protective cap, supporting stable high-speed rotation with ultra-low signal attenuation, ideal for rotary equipment requiring mixed optical and RF signal transmission without cable twisting damage.


Features

  • Infinite rotation
  • Low insertion loss
  • EMI shielding
  • Compact integration
  • Stable signal

Applications

  • Vision turntable
  • RF test bench
  • Medical imaging
  • Opto pod gimbal
  • Industrial inspection

Optional

  • Fiber connector
  • Rotating wiring
  • Speed upgrade
  • IP enclosure
  • Custom channels


Specification

ECN000-01S-01F-B

Specification

Protection Rating

IP51

Operating Humidity

Below 60% RH

Operating Temperature

-40°C ~ +80°C

Cable Specification

Coaxial cable RG178

Operating Voltage

0~24 VAC/VDC

Number of Circuits/Current

1 channel × coaxial signal

Dielectric Strength

≥500 VAC @ 50 Hz between circuits

Insulation Resistance

≥500 MΩ @ 500 VDC

Contact Resistance Fluctuation Value

≤30 mΩ (at 50 rpm)

Operating Speed

0～6000 rpm

Cable Lengths

Rotor side: 60 mm; Stator side: 1000 mm

Contact Material

Precious metal

Housing Material

Aluminum alloy

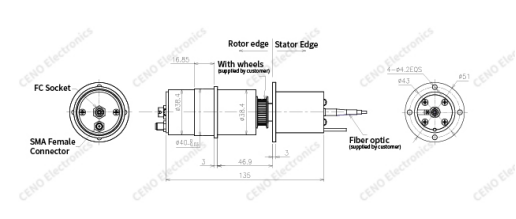

Outline drawing

Opto-Electric Hybrid Slip Ring with 1 fiber & 1 RF coax


CENO Power/Signal + Fiber Opticrotary joint product series

Integrated slip ring is CENO non-standard series.POWER/SIGNAL + FIBER OPTIC ROTARY JOINT design according to special application, to integrates the current, signal circuits and optical fiber joint. Its current could up to several hundred amperes and its signal could cover all kind of signal type base on relevant application. Optical fiber joint include sigell-mode and multimode with diverious channel from signal channel to dozens of channel. This kind of integrated slipring gets well performance and various function, then it is widely used in option electric crane.
