Waterproof slip ring with IP65 dustproof & waterproof
Waterproof slip ring with IP65 dustproof & waterproof
Waterproof slip ring with IP65 dustproof & waterproof
Waterproof slip ring with IP65 dustproof & waterproof
Waterproof slip ring with IP65 dustproof & waterproof
Waterproof slip ring with IP65 dustproof & waterproof
Waterproof slip ring with IP65 dustproof & waterproof
Waterproof slip ring with IP65 dustproof & waterproof
Waterproof slip ring with IP65 dustproof & waterproof
Waterproof slip ring with IP65 dustproof & waterproof
Waterproof slip ring with IP65 dustproof & waterproof
Waterproof slip ring with IP65 dustproof & waterproof
Specifications
Price :
Negotiable
WorkingTemperature :
-20℃~+60℃
Model Number :
ECN000-03P2-IP65
Insulation Resistance :
500MΩ@500VDC
Lead Wire Length :
Rotor: 2000mm; Stator:2000mm
MOQ :
1pcs
Delivery Time :
1 week
Dielectric Strength :
≥1000VAC@50Hz
Payment Terms :
T/T,Paypal,Western Union
Working Humidity :
60%RH
Circuits& Current :
3 Circuits *10A(24V)
Rating Voltage :
0~24VAC/VDC
Supply Ability :
500pcs per month
Protection(IP Grade) :
IP65
Place of Origin :
China
Working Speed :
0~10 rpm
Contact Material :
Precious Metal
Housing Material :
Aluminum Alloy
Certification :
CE,RoHS,ISO9001,UL
Brand Name :
CENO
Electrical Noise :
Max 30mΩ(50rpm)
Packaging Details :
Carton/As request
Rotation Way :
Stator side flange installation
Description

Waterproof slip ring with IP65 dustproof & waterproof

ECN000-03P2-IP65 is CENO Waterproof slip ring features 3 independent circuits with 10A current per channel, rated IP65 dustproof & waterproof for wet/outdoor rotating equipment. Adopting precious metal contact structure, it enables 360° unlimited rotation power transmission without wire tangling. Black anodized metal housing with flange mounting holes for easy installation, certified CE & RoHS compliant, factory inspected with stable low contact resistance and long service life.


Features

  • 3 circuits
  • 10A per line
  • IP65 sealed
  • Precious metal contact
  • Flange mount
  • CE RoHS certified

Applications

  • Rotating camera pan-tilt
  • Outdoor rotary light
  • Automated rotary jig
  • Small robot joint
  • Car wash rotary unit
  • Packaging machinery

Optional

  • Custom wire length
  • Extra circuits
  • Higher current
  • Higher IP grade
  • Special voltage
  • Custom housing color

Specification

ECN000-03P2-IP65

Specification

Protection(IP Grade)

IP65

Working Humidity

60%RH

WorkingTemperature

-20℃~+60℃

Rating Voltage

0~24VAC/VDC

Circuits& Current

3 Circuits *10A(24V)

Dielectric Strength

≥1000VAC@50Hz

Insulation Resistance

500MΩ@500VDC

Electrical Noise

Max 30mΩ(50rpm)

Lead Wire Length

Rotor: 2000mm; Stator:2000mm

Working Speed

0~10 rpm

Rotation Way

Stator side flange installation

Contact Material

Precious Metal

Housing Material

Aluminum Alloy

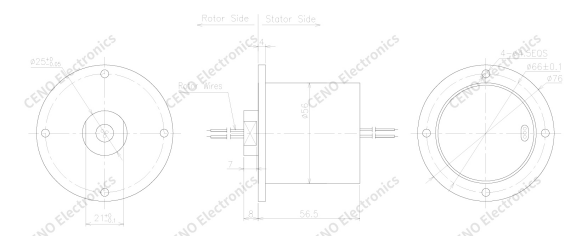

Outline drawing

Waterproof slip ring with IP65 dustproof & waterproof

CENO is a technologically advanced company in the slip ring field, specializing in research and development, manufacturing, and sales. We utilize advanced equipment and high-precision test instruments to ensure product quality and reliable performance. Our facility covers 3000 square meters and is located in Shenzhen, China.

Waterproof slip ring with IP65 dustproof & waterproof
Certifications

ISO9001, CE, RoHS, UL, Explosion-proof

Waterproof slip ring with IP65 dustproof & waterproof
CENO Advantage

Our engineering team members have more than 10 years of experience in slip ring technology. Operators working on critical procedures are all qualified through internal training programs.

Services Provided
  • 24/7 consultant service
  • Mass and customized production
  • Solution offerings for 360° rotation systems
Welcome to consult us with your requests for any 360° rotation system. We will provide one-stop service and respond to your inquiries promptly.
